www.ergotron.com

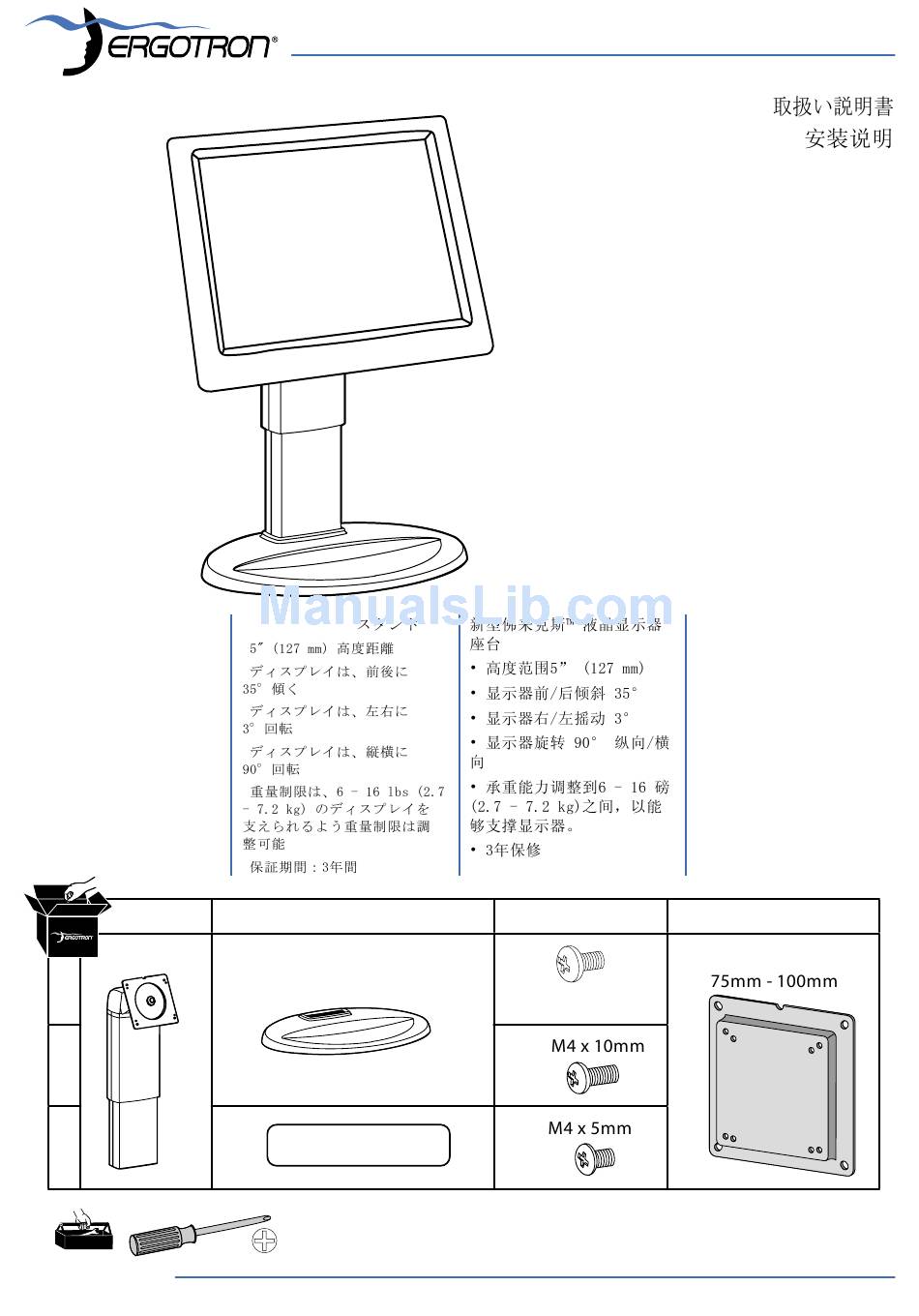

Neo-Flex™ LCD Stand
• 5" (127 mm) height range
• Display tilts 35° forward/back
• Display pans 3° right/left
• Display rotates 90° portrait/
landscape
• Weight capacity adjusts to
hold displays between 6 - 16 lbs
(2.7 - 7.2 kg)
• 3 year warranty
A
1x
1
2
3
888-45-042P-00 rev.B • 10/06
Neo-Flex™ LCD
•
•
•
•
•
•
B
1x
1x
For optimum ergonomic viewing,
set top of monitor screen
1" below eye height of operator.
Neo-Flex™ LCD Stand
C
4x
1x
M5 x 8mm (5/16")
4x
4x
ASSEMBLY INSTRUCTIONS
D
1 of 10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ergotron Neo-Flex LCD Stand
Summary of Contents for Ergotron Neo-Flex LCD Stand
- Page 1 Neo-Flex™ LCD Stand Neo-Flex™ LCD • 5" (127 mm) height range • • Display tilts 35° forward/back • • Display pans 3° right/left • • Display rotates 90° portrait/ landscape • • Weight capacity adjusts to hold displays between 6 - 16 lbs (2.7 - 7.2 kg)
- Page 2 ATTACH DISPLAY 75 x 75mm 2 of 10 100 x 100mm 888-45-042P-00 rev.B • 10/06...
- Page 3 ATTACH BASE WARNING The base of the Neo-Flex Stand is held down by the weight of the monitor and will extend on its own if lifted off the desk (fi g.1). To avoid possible injury, always extend the Neo-Flex Stand to its full height BEFORE picking it up off the desk (fi...
- Page 4 RANGE OF MOTION This product is designed to adjust quickly and easily according to your needs – refer to following steps for adjustment. Lift – Up and down Rotate – Portrait/Landscape 4 of 10 Tilt – Forward and Backward 5" (127 mm) Pan –...
- Page 5 Adjust Lift – Up and down If it does not stay in place or movement is stiff, tension needs ad- justment. Adjust until motion is equal. WARNING The base of the Neo-Flex Stand is held down by the weight of the monitor and will extend on its own if lifted off the desk (fi...
- Page 6 Adjust Tilt – Forward and Backward If it does not stay in place or movement is stiff, tension needs ad- justment. Adjust until motion is equal. 6 of 10 To increase tension - Turn Clockwise To decrease tension - Turn Counterclockwise 35˚...
-
Page 7: Troubleshooting
888-45-042P-00 rev.B • 10/06 Cause Tension needs adjustment. Exceeds weight capacity: 6 - 16 lbs (2.7 - 7.2 kg). Tension needs adjustment. 6 - 16 lbs (2.7 - 7.2 kg). Solution Adjust Lift Contact Customer Care: www.ergotron.com Adjust Tilt www.ergotron.com 7 of 10... - Page 8 6 - 16 lbs (2.7 - 7.2 kg). 888-45-042P-00 rev.B • 10/06 8 of 10...
- Page 9 888-45-042P-00 rev.B • 10/06 9 of 10...
- Page 10 888-45-042P-00 rev.B • 10/06 10 of 10...
