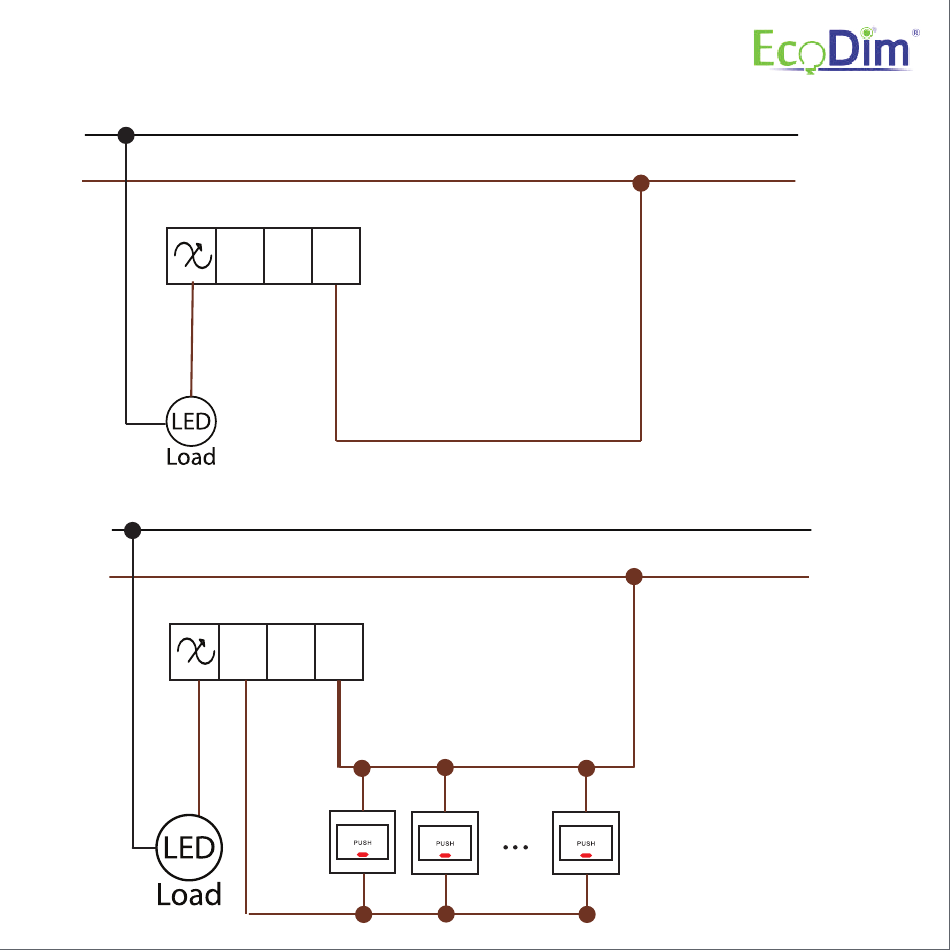

4. Aansluitschema
1) 2-draads aansluiting
N
L
P
L
L
2) Wisselschakeling/Multischakeling met meerdere pulse schakelaars
N
L
P
L
L
12
Let op, wisselschakeling is alleen mogelijk met pulse schakelaars, niet met meerdere dimmers.
