Scilogex SCI100-S Operation Instructions Manual page 11

LED
display
Reverse
Forward
indicator
indicator

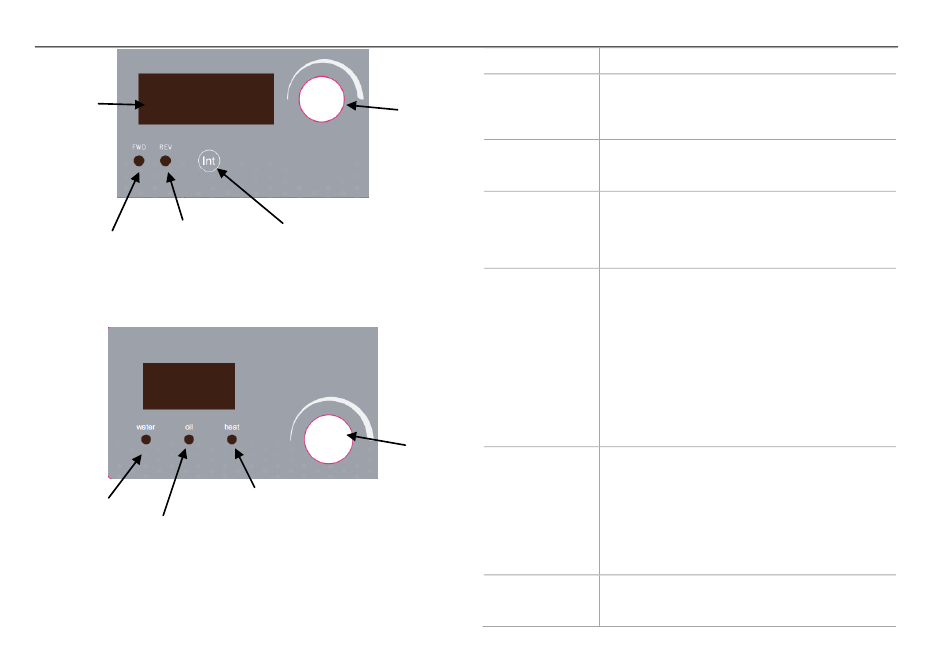

Fig. 4
Water mode
Oil mode
indicator
indicator
Fig.
Adjustment
Forward and reverse
rotation interval setting
button
Temperature
adjustment
knob
Heating
indicator
5
Name
LED display
knob
Forward
indicator
Reverse
indicator
Forward and
reverse
rotation
interval
setting button
Int
Adjustment
knob
Water mode
indicator
8
Description
Indicates the current working status and
parameter setting.
The indicator is on when the instrument
is in the state of forward rotation only
The indicator is on when the instrument
is rotating forwardly and reversely in
turn
Press this key to enter the state of
setting the forward and reverse rotation
interval time. Turning the adjustment
knob can set the intermittent left and
right rotation time within the range of
1-999 sec. When set to 0 sec, the
instrument rotates forward only
Turn the knob clockwise to increase the
parameter and counterclockwise to
decrease the parameter
Press this key to start / stop the
instrument
The indictor is on when the heating bath
is in the water bath mode
Rotary Evaporator
