Summary of Contents for EAST COAST Toulouse Dresser White

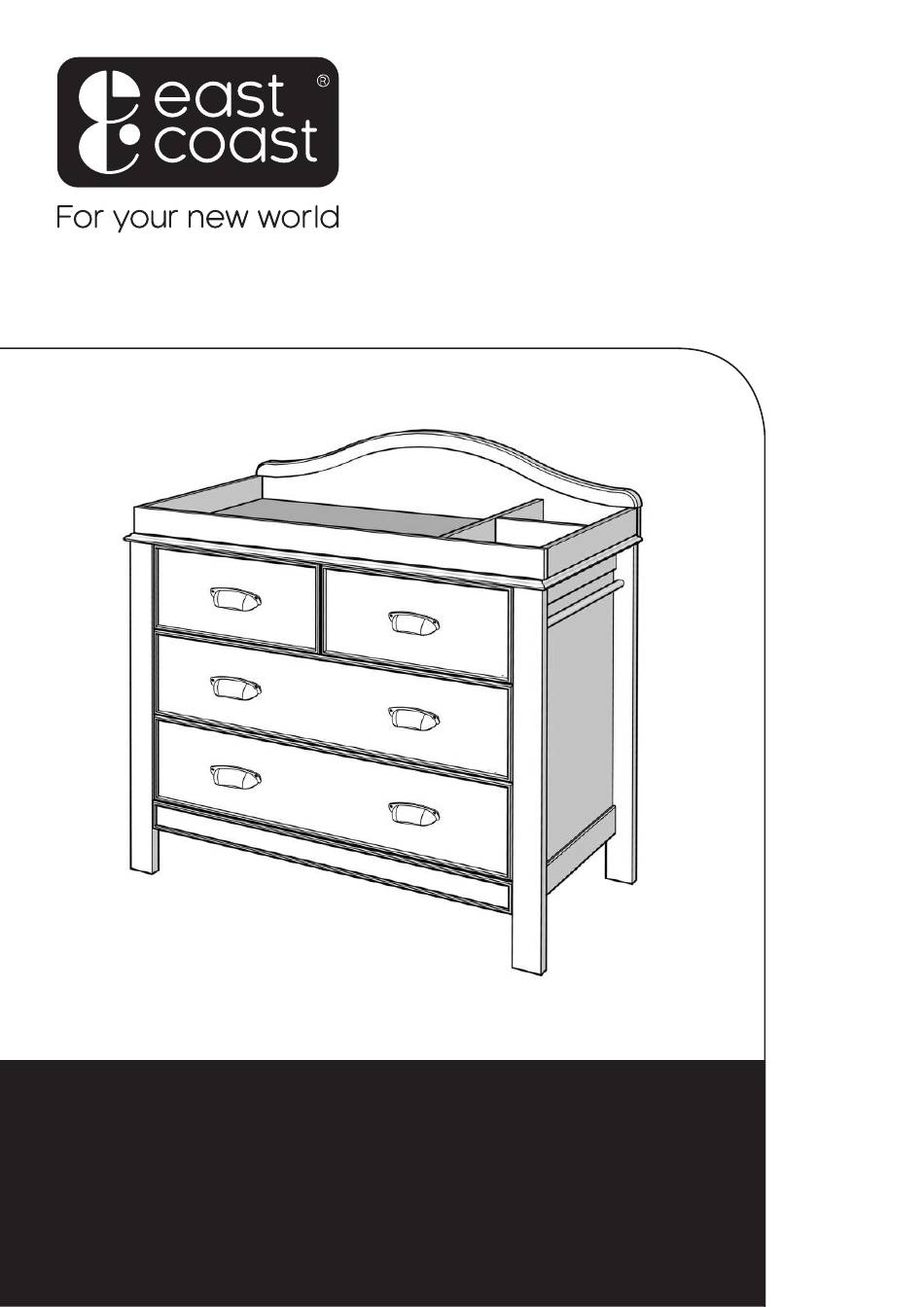

- Page 1 Toulouse Dresser White Assembly and care instructions...
- Page 2 READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Thank you for purchasing an East Coast product. It’s been carefully designed and constructed to offer quality, safety and reliability for you and your baby. If you have a query about this product or require replacement parts, please contact 01692 408802.
- Page 3 Wooden Parts Changer divider 2 Changer side 1 Changer divider 1 Changer rear Changer front Changer side 2 Dresser top Twin drawer front Side panel x 2 (L & R) Single drawer front x 2 Upper back panel Upper front crossbar Front crossbar Lower back panel Plain crossbar x 4...
- Page 4 Assembly 1 Upper front crossbar Plain crossbar x 4 Front crossbar Upper rear crossbar NOTE: Take care to insert the dowels into the correct C x 14 holes as indicated. Repeat for the opposite end of each crossbar. (Total 28 x part C) Assembly 2 Side panel Upper front crossbar...
- Page 5 Assembly 3 Side panel NOTE: Secure all Crossbars using Parts A and F (1 each per Crossbar) as shown. Assembly 4 Changer front Changer divider 1 Changer side 2 D x 5...
- Page 6 Assembly 5 Changer divider 1 Changer side 2 Changer side 1 C x 8 C x 8 Changer divider 2 Assembly 6 Changer side 1 Changer side 2 Dresser top B x 2 Assembly 7 Changer divider 2 Changer divider 1 E x 2...
- Page 7 Assembly 8 Changer front E x 3 Assembly 9 Changer rear B x 5...
- Page 8 Assembly 10 C x 4 Assembly 11 Changer front NOTE: Ensure the Dresser Top is assembled as shown. Dresser top B x 3 B x 3 A x 2 Front crossbar...
- Page 9 Assembly 12 Upper Back Panel (slot at top) H x 14 Lower Back Panel H x 14 Assembly 13 Twin drawer front Drawer side Drawer side G x 2 G x 2 NOTE: Repeat for remaining drawers. Assembly 14 Drawer base NOTE: Repeat for remaining drawers.
- Page 10 Assembly 15 Drawer back Drawer brace NOTE: Repeat for remaining drawers. Assembly 16 G x 3 J x 2 G x 2 I x 4 NOTE: Repeat for remaining drawers. Assembly 17 Twin drawer front Single drawer front Single drawer front...
- Page 11 Assembly 18 The dresser is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Washer x 2 Screw (short) Screw (long)
-
Page 12: Care And Maintenance
Do not use the dresser if any of the parts are broken, torn or missing. Any additional or replacement parts can only be obtained from the manufacturer or the distributor. East Coast Nursery Ltd, Robertson House North Walsham, Norfolk, NR28 0BX, UK...
