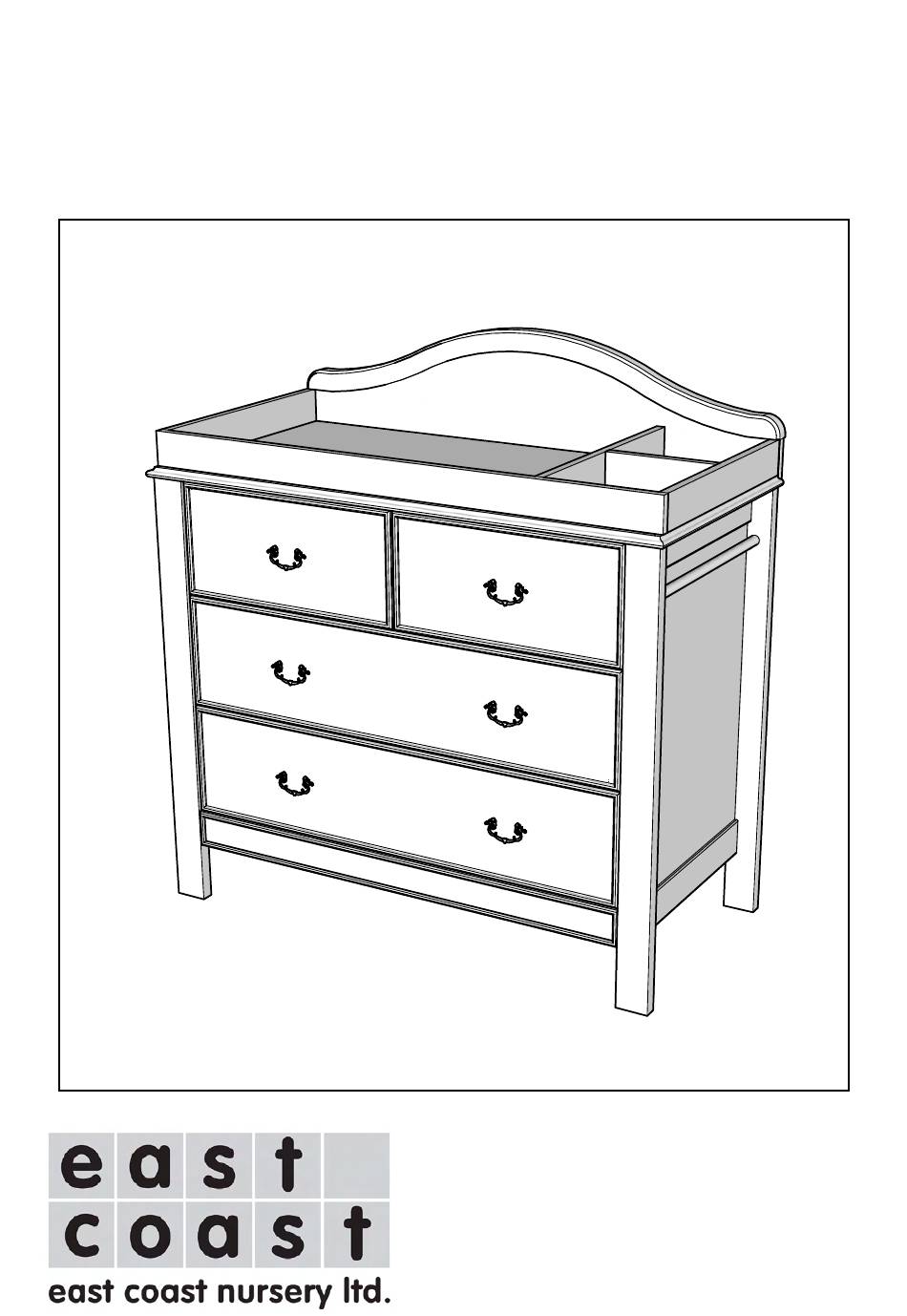

- Page 1 TOULOUSE Dresser...
- Page 2 Important Retain for future reference: Read carefully Please read the instructions and warnings carefully before use to ensure safe and satisfactory operation of this product. Your child’s safety is your responsibility. If you have a query with this product or require replacement parts, please contact 01692 408802.
- Page 3 Wooden Parts Changer Divider 2 Changer Side 1 Changer Divider 1 Changer Rear Changer Front Changer Side 2 Dresser Top Twin Drawer Front Side Panel x 2 (L & R) Single Drawer Front x 2 Upper Back Panel Upper Front Crossbar Front Crossbar Lower Back Panel Plain Crossbar x 4...
- Page 4 Assembly 1 Upper Front Crossbar Plain Crossbar x 4 Front Crossbar Upper Rear Crossbar NOTE: Take care to insert the dowels into the correct holes as indicated. Repeat for the opposite end of each crossbar. (Total 28 x part C) C x 14 Assembly 2 Side Panel...
- Page 5 Assembly 3 Side Panel NOTE: Secure Crossbars using Parts A and F (1 each per Crossbar) as shown. Assembly 4 Changer Front Changer Divider 1 Changer Side 2 D x 5...
- Page 6 Assembly 5 Changer Divider 1 Changer Side 2 Changer Side 1 C x 8 C x 8 Changer Divider 2 Assembly 6 Changer Side 1 Changer Side 2 Dresser Top B x 2 Assembly 7 Changer Divider 2 Changer Divider 1 E x 2...
- Page 7 Assembly 8 Changer Front E x 3 Assembly 9 Changer Rear B x 5...
- Page 8 Assembly 10 C x 4 Assembly 11 Changer Front NOTE: Ensure the Dresser Top is assembled as shown. Dresser Top B x 3 B x 3 A x 2 Front Crossbar...
- Page 9 Assembly 12 Upper Back Panel (Slot at top) H x 14 Lower Back Panel H x 14 Assembly 13 Twin Drawer Front Drawer Side Drawer Side NOTE: G x 2 G x 2 Repeat for remaining drawers. Assembly 14 Drawer Base NOTE: Repeat for remaining drawers.
- Page 10 Assembly 15 Drawer Back Drawer Brace NOTE: Repeat for remaining drawers. Assembly 16 G x 3 J x 2 NOTE: Repeat for I x 4 G x 2 remaining drawers. Assembly 17 Twin Drawer Front Single Drawer Front Single Drawer Front...
- Page 11 Assembly 18 The dresser is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Washer x 2 Screw (15mm) Screw (25mm)
-
Page 12: Care And Maintenance
Do not use the dresser if any of the parts are broken, torn or missing. Any additional or replacement parts can only be obtained from the manufacturer or the distributor. Customer Care line for this Product 01692 408802 East Coast Nursery Ltd. Robertson House, North Walsham, Norfolk, NR28 0BX www.eastcoastnursery.co.uk 7839-02...
