- Page 1 IG108 SPECIALIZED LOUDSPEAKERS In-ground Loudspeaker USER MANUAL v.20220804...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................5 ASSEMBLY AND INSTALLATION ..................6 CONNECTIONS ........................7 TECHNICAL CHARACTERISTICS ..................7... -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
-
Page 5: Important Note

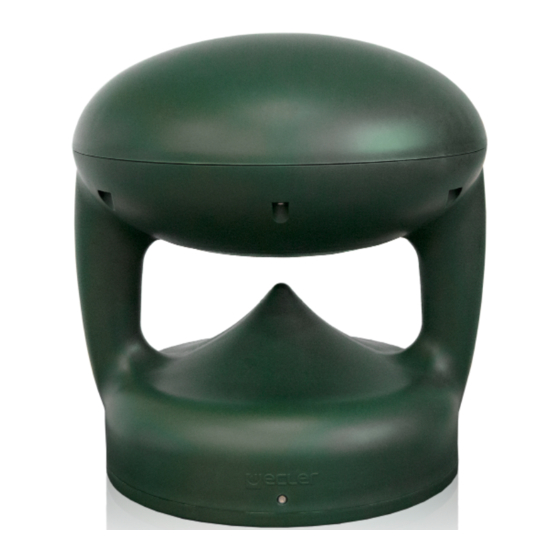

Ecler IG108 comes with a 3-year warranty. INTRODUCTION The IG108 is an in-ground weatherproof loudspeaker (IP65) with an omni-directional horizontal dispersion pattern (360º). It is ideal for music and message applications in outdoor areas, where a reliable yet high quality sound system is required. -
Page 6: Assembly And Installation
ASSEMBLY AND INSTALLATION... -
Page 7: Connections
CONNECTIONS TECHNICAL CHARACTERISTICS IG108 System Effective frequency range 600 Hz-20 kHz Coverage angle 360°x229° (HxV) Power handling 100 W RMS / 400 W Peak Sensitivity 91 dB (1W/1m) Maximum SPL 111 dB continuous / 117 dB peak Power options 100V: 60W / 30W / 15W / 7,5W / 8Ω... - Page 8 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
