DEVICE SETUP
SSD Compatibility
- The OWC Envoy is compatible ONLY with the original Apple SSD from the MacBook Air.
Any other third-party SSDs, including OWC SSDs, are NOT compatible.
- The Envoy for MacBook Air 2010–2011 works ONLY with the Apple SSD from those
specific models.
- The Envoy for MacBook Air 2012 works ONLY with the Apple SSD from that specific model.
NOTE: The pictures shown in these instructions use the Envoy for MacBook Air 2010–2011. The assembly
process is identical for the 2012 version, except the black SATA connector is slightly wider.

2.1 Assembly

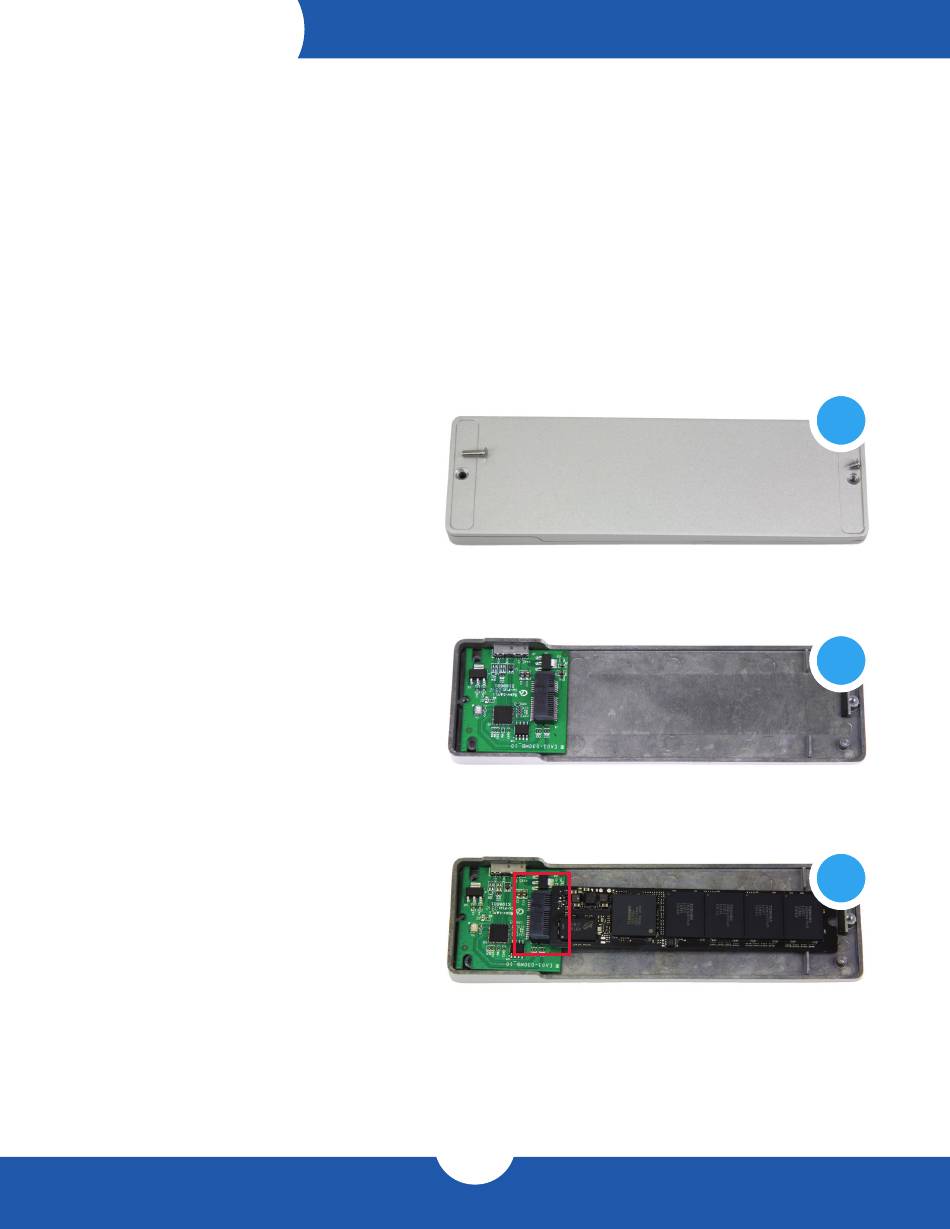

1. Turn the Envoy enclosure upside
down, as shown below. Note that
the two included screws are different
lengths. For now, set these
screws aside.
2. Remove the bottom cover. The circuit
board will be slightly loose; when fully
assembled the board is held in place
by pegs on the bottom cover.
3. Insert the Apple SSD into the black
SATA connector on the circuit board,
as shown below. The connector is
notched so that only one orientation
can be used.
