OWC Envoy

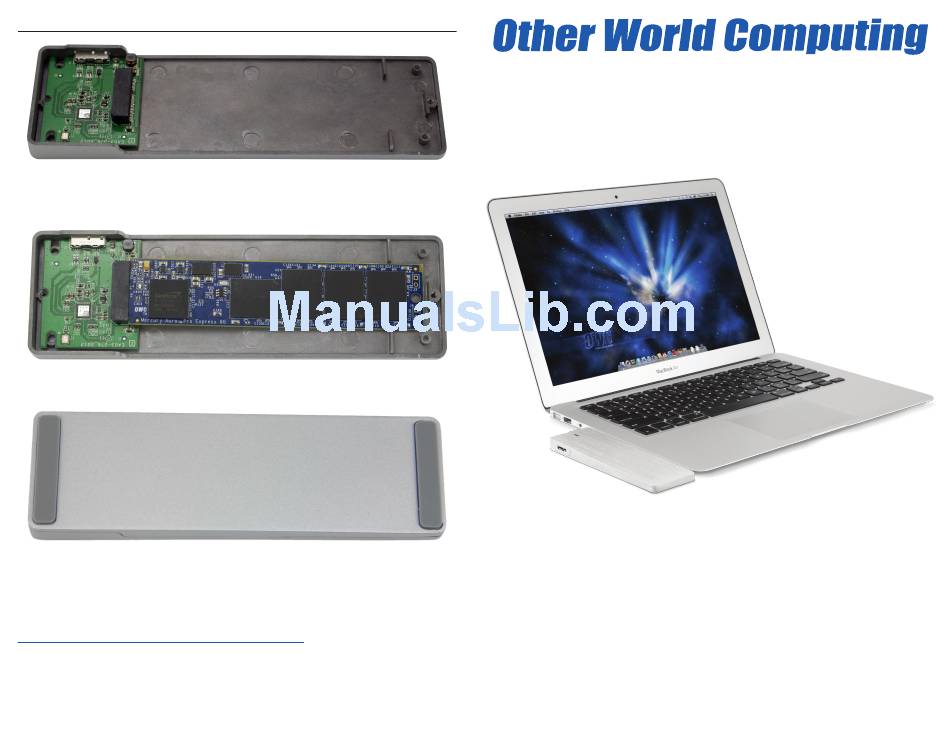

Remove the top cover and you will expose the interposer board inside of the OWC
Envoy.
Insert your SSD module into the interposer board connector - it is keyed so it will only
fit one direction. The drive module plugs straight into the connector and fits snugly.
Replace the bottom cover onto the OWC Envoy. Reinsert the 2 Phillips screws through
the bottom and apply the 2 rubber feet to complete the assembly.

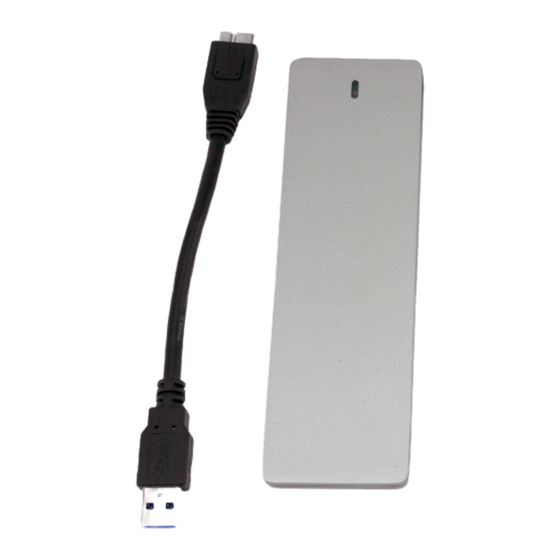

Your OWC Envoy connects using the included USB cable. if your SSD module is unfor-
mated, you will need to format it to be able to use it.
http://eshop.macsales.com/tech_center/fwhdd.cfm
R1 11/7/12 JD
Copyright ®2012 Other World Computing All Rights Reserved. Other World Computing's Limited Warranty is not transferable and subject to limitations.
Assembly
OWC Envoy
OWCMANENV12OGAM
Owner's Manual & Assembly Guide
for MacBook Air 2012

Advertisement

loading
Need help?

Need help?

Do you have a question about the OWC Envoy and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OWC OWC Envoy

Summary of Contents for OWC OWC Envoy

  • Page 1 2 rubber feet to complete the assembly. Your OWC Envoy connects using the included USB cable. if your SSD module is unfor- mated, you will need to format it to be able to use it.
  • Page 2 Using a Phillips P0 screwdriver, remove the 2 Phillips screws that are holding the top and bottom of the OWC Envoy together. Note they are two lengths, the short screw goes on the skinny end of the OWC Envoy, and the longer screw goes on the thicker end.
