Videx Kristallo Series User Manual

Hands free videomonitor
Hide thumbs Also See for Kristallo Series:

Advertisement

Available languages

Available languages

Quick Links

Download this manual

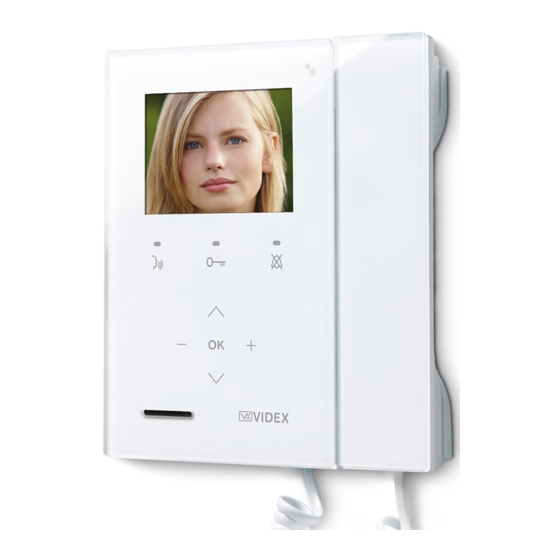

Kristallo Series
Art. KRV82-KRV84
155
112
A
B
C
D

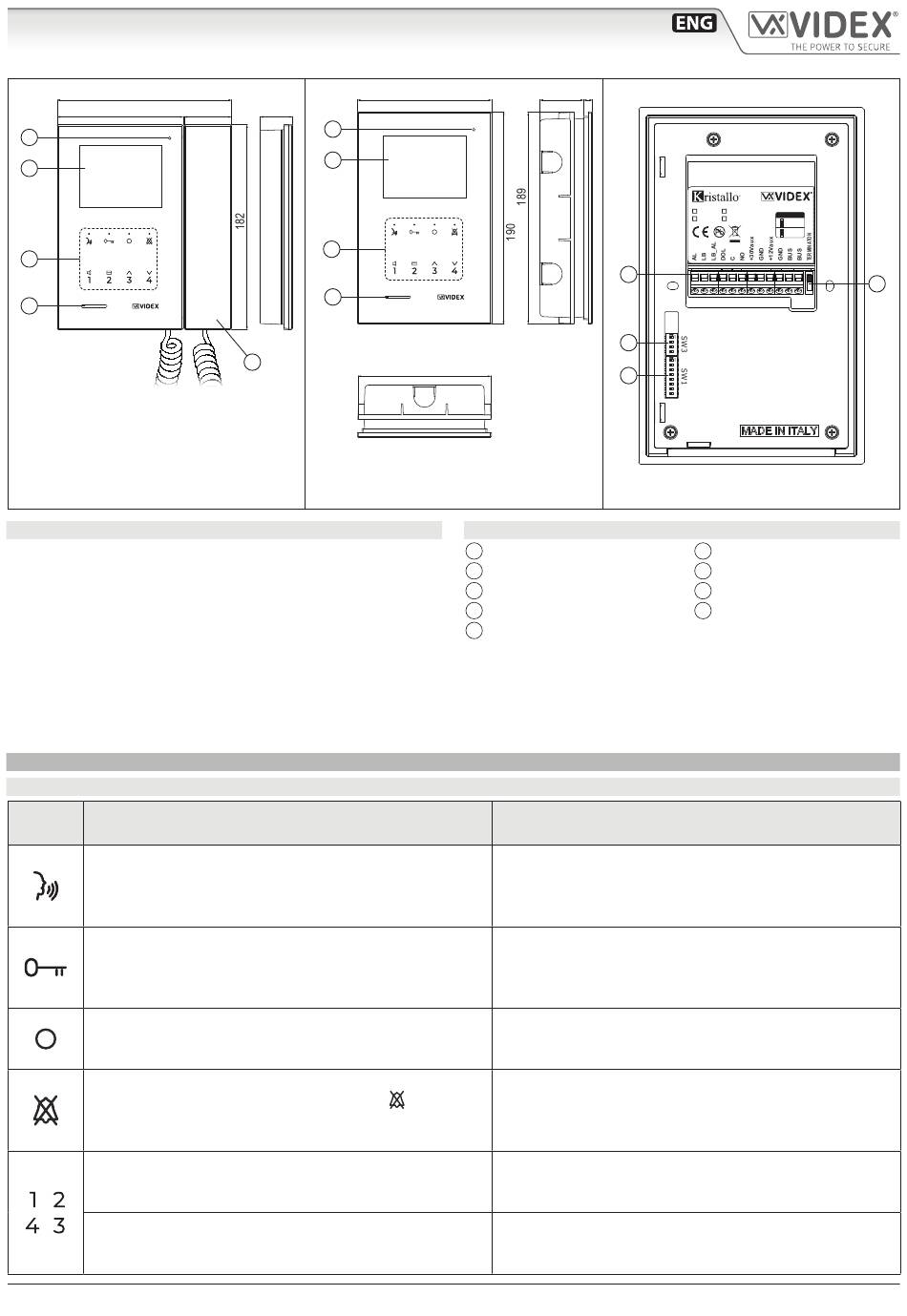

Fig. 1 Art. KRV82 front
DESCRIPTION
Hands free video monitor for VX2300 digital system.
3.5" full colour active matrix LCD monitor. 4 LED's related to the
videophone operation. 8 capacitive touch sensitive backlight
buttons: "answer/camera recall/push to talk/end conversation",
"door open", "service button", "privacy/reject call" plus another
4 buttons for programming, adjustments and intercommunica-
tion facility (available only between the Kristallo range of videophones and intercoms) that enables intercommunication between
devices in the same apartment (same PHONE ID but different extension address) or between devices installed in different apart-
ments (different PHONE ID). Programming: number of rings, clean mode, privacy service duration, melody type and volume, extension
ID for intercommunication. Adjustments: speech volume, picture brightness and hue
OPERATION
DURING STAND-BY
BUTTON OPERATION
Camera recall
Press a number of times equal to the ID value of the door
panel to switch ON.
When the connection is made, press again to end the call.
Intercommunication call
Press as many times as the extension number (intercommuni-
cation with units in the same apartment) or address value to
call (intercommunication with units in a different apartment).
Activate bus relay board Art. 2305
Press quickly as many times as the address value of the re-
lay (from 1 to 8, 1 "beep" for each press).
Privacy service
Press to enable the privacy service. The LED
The service is deactivated by pressing again the same but-
ton or when the programmed time expires.
Art. 2305 relay activation
Press to activate the programmed relay (from 1 to 4).
Depends on the setting of dip 8 of SW1, see pag. 3.
Call the programmed indoor station
Press to call the programmed indoor station.
Depends on the setting of dip 8 of SW1, see pag. 4.
Art. KRV82 - KRV84 - Installation instructions
3.5" hands free videomonitor
42
29
A
B
C
D
E
Fig. 2 Art. KRV84 front
120
39
119
LEGEND
Microphone
A
Display
B
LED's and touch buttons
C
Loudspeaker
D
Handset
D
PROGRAMMING
See "Programming" on page 2 for details
Clean mode
Press and keep pressed for more than 3 seconds to enter
Clean mode.
Melody type and volume
Press and keep pressed for more than 3 seconds to enter
Melody type and volume programming mode.
Number of rings
Press and keep pressed for more than 3 seconds to enter
Number of rings programming mode.
Privacy service duration
turns on.
Press and keep pressed for more than 3 seconds to enter
Privacy service duration programming mode.
- 1 -
8
KRV82
/W (White)
KRV84
/B (Black)
E
F
G
Fig. 3 Art. KRV84 back
Connection terminals
E
4 Way dip switch bank
F
8 Way dip switch bank
G
Bus termination switch
H
66251990 - V1.1 - 15/07/21
Made in Italy
TERMINATION
Enabled
Disabled
H
