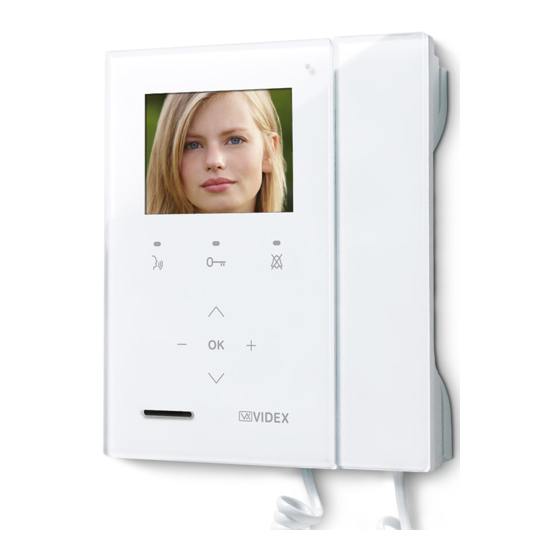

Kristallo Series
Art. KRV76-KRV78
Handsfree videophones for systems using composite video signal (coax) or balanced (two wires)
155
112
A
B
C
D
E

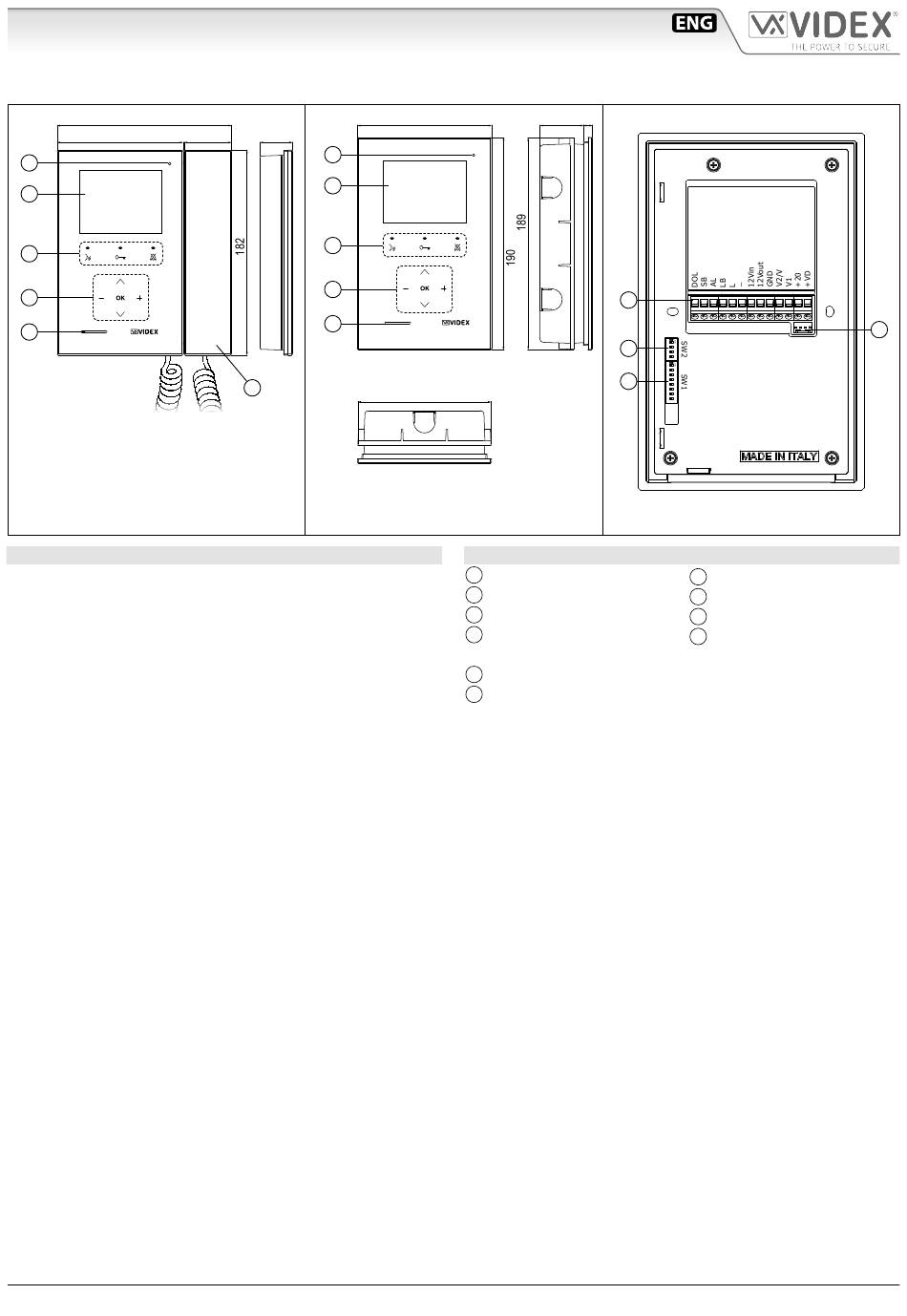

Fig. 1 Art. KRV76 front
DESCRIPTION
Intelligent Hands free video monitor for the VX2200 digital sys-
tem using 3,5" OSD full colour active matrix LCD monitor, with
touch sensitive buttons for "door open / concierge call" , "an-
swer/camera recall", "privacy / service" plus 5 navigation menu
buttons and 3 LEDs related to the videophone operation. For
the surface version only (Art.KRV76), a handset can also be used
in addition to the handsfree mode. Additional features include a
real time clock, a temperature sensor and a serial RS232 port for future integration with home automation systems.
The following programmable options are available via the OSD menu's and navigation buttons:
•
Call tone volume (3 levels);
•
Speech volume (8 levels);
•
Picture Brightness (8 levels);
•
Picture Contrast (8 levels);
•
Picture Hue (8 levels);
•
Date & time;
•
Privacy duration (from 30 minutes to 20 hours or unlimited);
•
Call melodies (9 available);
•
Number of rings (from 1 to 9);
•
Intercommunication mode.
The videophone address and the video mode are set by the 8 way and 4 way dip-switch banks available on the rear side of the
videophone.
Additionally the Kristallo has an input for local door bell and alarm.
Art. KRV76-KRV78 - Installation instructions
42
29
A
B
C
D
E
F
Fig. 2 Art. KRV78 front
120
39
8
119
LEGEND
Microphone
A
Display
B
Operating buttons and LED's
C
Navigation and adjustment
D
buttons
Speaker
E
Handset
F
- 1 -
G
I
L
Fig. 3 Art. KRV78 back
Connection terminals
G
Serial Port RS-232
H
4 Way dip switch bank
I
8 Way dip switch bank
L
66250900 - V4.1 - 15/05/19
Rev.1.0
H
RS-232

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kristallo Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Videx Kristallo Series

Summary of Contents for Videx Kristallo Series

  • Page 1 Kristallo Series Art. KRV76-KRV78 Rev.1.0 Handsfree videophones for systems using composite video signal (coax) or balanced (two wires) RS-232 Fig. 1 Art. KRV76 front Fig. 2 Art. KRV78 front Fig. 3 Art. KRV78 back DESCRIPTION LEGEND Microphone Intelligent Hands free video monitor for the VX2200 digital sys-...
  • Page 2 Kristallo Series Art. KRV76-KRV78 Handsfree videophones for systems using composite video signal (coax) or balanced (two wires) PUSH BUTTONS AND CONTROLS • Press this button during an incoming call to open the speech in duplex mode allowing free speech with the caller in both directions (The related LED will illuminate).

  • Page 3: Parameters Programming

    Kristallo Series Art. KRV76-KRV78 Handsfree videophones for systems using composite video signal (coax) or balanced (two wires) DURING THE CONVERSATION 1 5 / 1 2 / 1 1 1 4 . 5 ° C 0 9 : 2 3 1 5 / 1 2 / 1 1 1 4 .
  • Page 4 Kristallo Series Art. KRV76-KRV78 Handsfree videophones for systems using composite video signal (coax) or balanced (two wires) PROGRAMMINGS MENU When the system is in stand-by, keep pressed the button until the monitor switches on showing the screen to the left. The first programming option is the date & time Fig.4: •...
  • Page 5 Active low input for local call “Local Bell” (Art. KRV76/VM and Art. KRV78/VM). BUS DATA line input If you have that version, please refer to the “Kristallo Series 3.5" Memory Board” user — BUS Ground line input manual (in English and Italian) for installation 12Vin Stand-by +12Vdc power supply input and use.
  • Page 6 Kristallo Series Kristallo Series 3.5" flush and surface videomonitor wall mounting instructions Fig. 1b Fig. 1 Fig. 1a Fig. 2 Fig. 3 Fig. 3a Fig. 2a Fig. 4a Fig. 4b Fig. 4 - 6 - Art. KRV76-KRV78 - Installation instructions 66250900 - V4.1 - 15/05/19...
  • Page 7 Kristallo Series Kristallo Series 3.5" Flush and surface videomonitor wall mounting instructions FLUSH MOUNT KRISTALLO VIDEOPHONE 1. Protect the holes to fix the videophone to the flush mounting box then embed the flush mounting box in line with the wall in a vertical position at 135cm height from the floor as shown in Fig.
  • Page 8 Serie Kristallo Art. KRV76-KRV78 Rev.1.0 Videocitofoni vivavoce Serie Kristallo per sistemi con segnale video composito (coassiale) o bialnciato (2 fili) RS-232 Fig. 1 Art. KRV76 fronte Fig. 2 Art. KRV78 fronte Fig. 3 Art. KRV78 retro DESCRIZIONE LEGENDA Microfono Videocitofono vivavoce intelligente specifico per il sistema Morsettiera di connessione Display VX2200 con monitor a colori OSD LCD TFT da 3,5”, pulsanti tou-...

  • Page 9: Funzionamento

    Serie Kristallo Art. KRV78-KRV76 Videocitofoni vivavoce Serie Kristallo per sistemi con segnale video composito (coassiale) o bialnciato (2 fili) PULSANTI E REGOLAZIONI • Alla ricezione della chiamata, abilita l’inizio conversazione. Il relativo LED si accende. • Ad impianto spento, premere il pulsante tante volte quant’è il valore dell’identificativo del posto esterno da accendere. Il relativo LED si accende.

  • Page 10: Programmazione Parametri

    Serie Kristallo Art. KRV78-KRV76 Videocitofoni vivavoce Serie Kristallo per sistemi con segnale video composito (coassiale) o bialnciato (2 fili) DURANTE LA CONVERSAZIONE 1 5 / 1 2 / 1 1 1 4 . 5 ° C 0 9 : 2 3 1 5 / 1 2 / 1 1 1 4 .
  • Page 11 Serie Kristallo Art. KRV78-KRV76 Videocitofoni vivavoce Serie Kristallo per sistemi con segnale video composito (coassiale) o bialnciato (2 fili) MENÙ PROGRAMMAZIONI Con il sistema in stand-by, tenere premuto il pulsante fino a che il monitor non si accende mostrando la scher- mata di fianco.
  • Page 12 Serie Kristallo Art. KRV78-KRV76 Videocitofoni vivavoce Serie Kristallo per sistemi con segnale video composito (coassiale) o bialnciato (2 fili) MODO VIDEO SW2 La modalità video viene impostata tramite il Dip-Switch a 4 MODO VIDEO TERMINAZIONE VIDEO 75 OHM vie accessibile dalla parte posteriore del blocco superiore del Switch 1,2 Modo Switch 3,4...
  • Page 13 Serie Kristallo Serie Kristallo Istruzioni di montaggio a parete videocitofoni 3,5" da incasso e da superficie Fig. 1b Fig. 1 Fig. 1a Fig. 2 Fig. 3 Fig. 3a Fig. 2a Fig. 4a Fig. 4b Fig. 4 - 13 - Art. KRV76-KRV78 - Istruzioni di installazione 66250900 - V4.1 - 15/05/19...
  • Page 14 Serie Kristallo Serie Kristallo Istruzioni di montaggio a parete videocitofoni 3,5" da incasso e da superficie VIDEOCITOFONI KRISTALLO DA INCASSO 1. Proteggendo i fori di fissaggio del videocitofono alla scatola da incasso, murare a filo muro la scatola da incasso in posizione ver- ticale lasciando circa 135cm tra la parte inferiore della scatola e il pavimento come mostrato in Fig.
  • Page 15 - 15 - 66250900 - V4.1 - 15/05/19...
  • Page 16 - 16 - 66250900 - V4.1 - 15/05/19...
  • Page 17 - 17 - 66250900 - V4.1 - 15/05/19...
  • Page 18 - 18 - 66250900 - V4.1 - 15/05/19...
  • Page 19 DISPOSAL In accordance with the Legislative Decree no. 49 of 14 March 2014 “Implementation of the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)”. The crossed-out bin symbol on the equipment or on the packaging indicates that when the product reaches the end of its lifetime, it must be collected separately from mixed municipal waste.
  • Page 20 MANUFACTURER VIDEX ELECTRONICS S.P.A. FABBRICANTE Via del Lavoro, 1 FABRICANT 63846 Monte Giberto (FM) Italy FABRICANTE Tel (+39) 0734 631669 FABRIKANT Fax (+39) 0734 632475 ‫الشركة المص ن ِّ عة‬ www.videx.it - info@videx.it CUSTOMER SUPPORT VIDEX ELECTRONICS S.P.A. UK Customers only: SUPPORTO CLIENTI www.videx.it - technical@videx.it...
