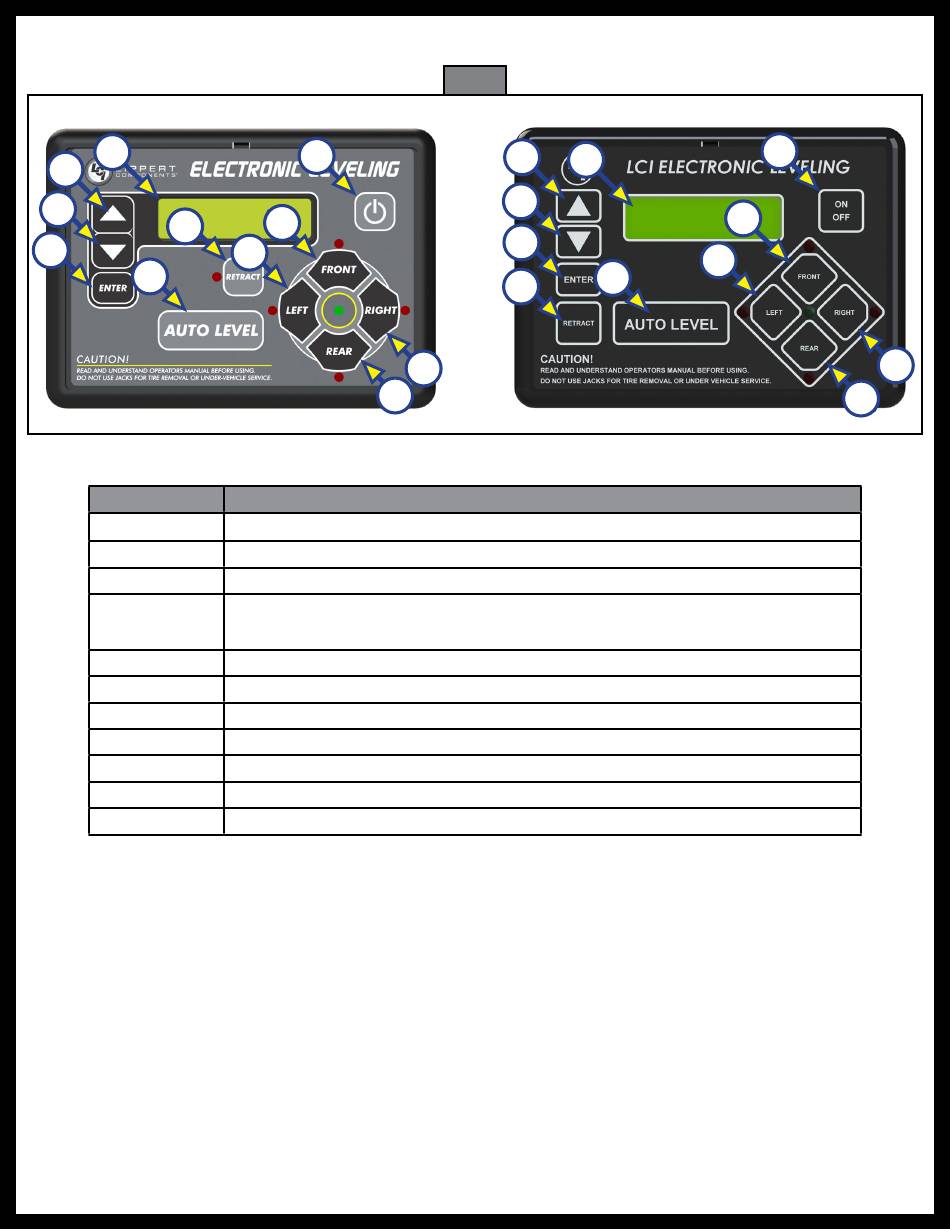

Touchpad Diagram
Gray
E
A
B
D
C
F
NOTE: Units manufactured before January 2018 will utilize the black touchpad.
Callout
A
B
C
D
E
F
G
H
I
J
K
Rev: 11.18.19
K
G
H
I
J
Description
Up Arrow - Scrolls up through the menu on LCD.
Down Arrow - Scrolls down through the menu on LCD.
ENTER - Activates modes and procedures indicated on LCD.
RETRACT - Places leveling system into retract mode. - Manual mode ONLY
Press and hold for several seconds to activate Auto Retract Function.
LCD Display - Displays procedures and results.
AUTO LEVEL - Places leveling system into auto level mode.
FRONT - Activates both front jacks in manual mode.
LEFT - Activates left rear jack in manual mode.
RIGHT - Activates right rear jack in manual mode.
REAR - Activates both rear jacks in manual mode.
Power Button - Turns leveling system on and off.
Fig. 1
A
E
B
C
F
D
Page 5
Black
K
G
H
J
CCD-0001535
I
