12-Pin Wire Harness - Lippert Components LCI Level-Up Owner's Manual

Fill Cup
Pressure
Switch

12-Pin Wire Harness

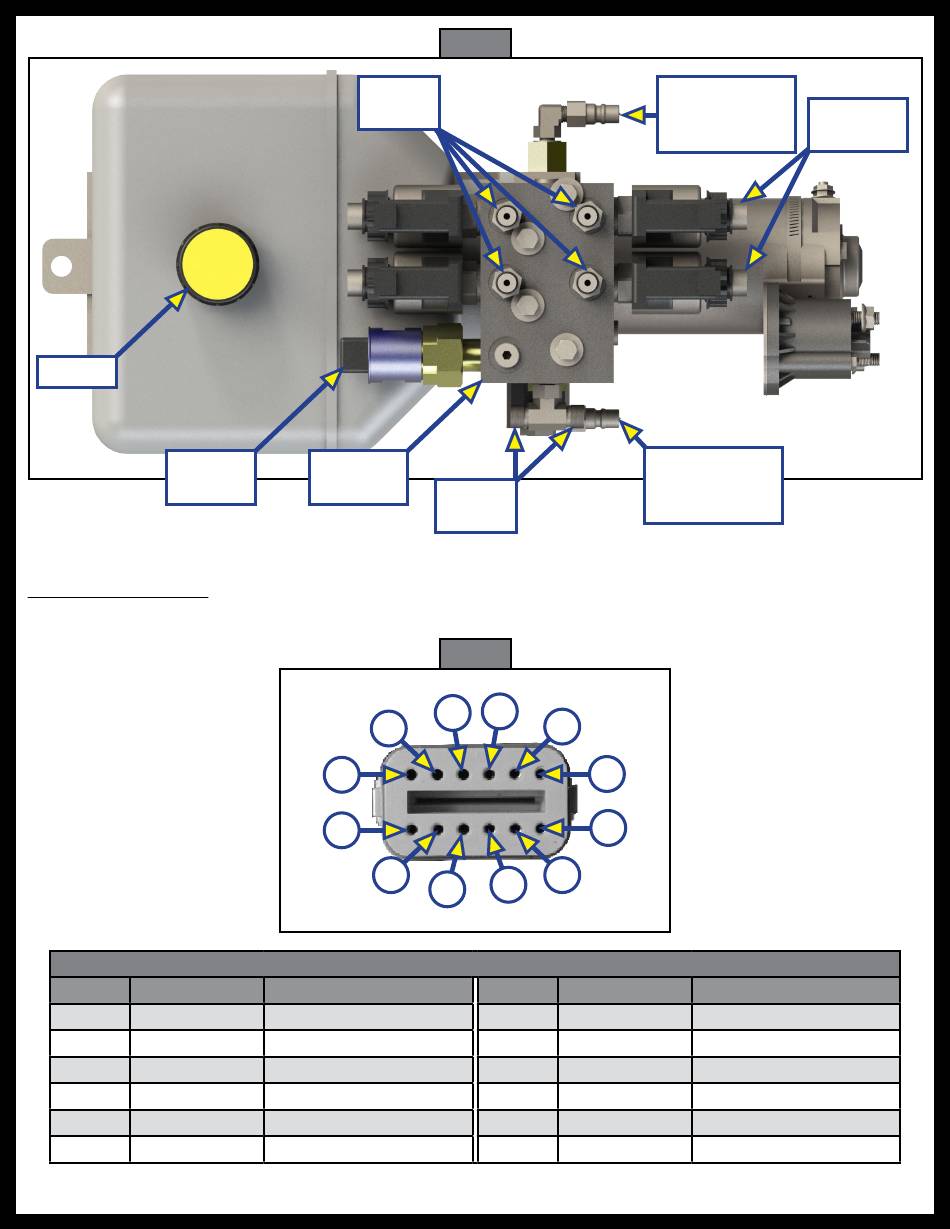

See figure 11 for 12-Pin wire harness pin locations and definitions.
Pin # Color
1 White
2 Black/White
3 Red
4 Green
5 Yellow
6 Blue
Rev: 11.18.19
Fig. 10
Extend
Fittings
Hydraulic
Manifold
Return
Fittings
Fig. 11
10
11
12
1
2
3
12-Pin Wire Harness Pin Definitions
Function
Chassis Power
Pump Solenoid
Curbside Rear Valve
Roadside Front Valve
PSI Switch
Roadside Rear Valve
Page 17
Disconnect for
Flush and Fill
Disconnect for
Flush and Fill
9
8
7
6
5
4
Pin # Color
7 Brown
8 Purple
9 Gray
10 — — —
11 — — —
12 — — —
Quick
Valve and
Valve Coil
Quick
Function
Ground
Curbside Front Valve
Pump Solenoid
Aux
Aux
Aux
