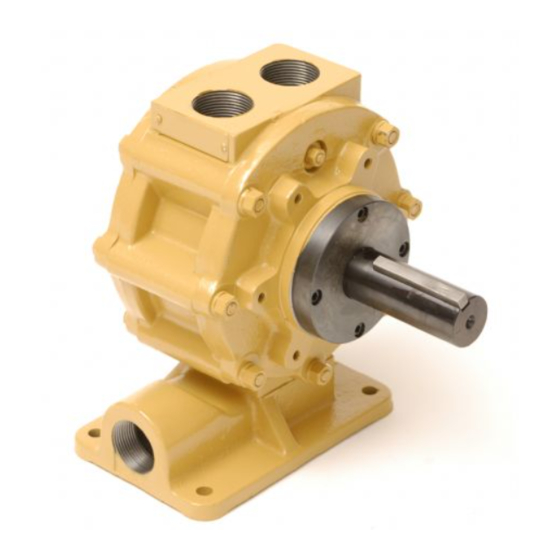

- Page 1 45586039 Edition 1 February 2008 Air or Gas Motor (Reversible) MVA017B/VSM-5842 Operation and Maintenance Information Save These Instructions...
- Page 2 WARNING General Product Safety Information ■ Read and understand this manual before operating this product. ■ It is your responsibility to make this safety information available to others that will operate this product. ■ Failure to observe the following warnings could result in injury. WARNING Product Safety Information - When Placing the Product in Service These motors are designed for gas operation at a maximum inlet pressure of 150 psig.
- Page 3 Lubrication Ingersoll Rand No. 28 Ingersoll Rand No. 20 Grease Always use an air line lubricator with this motor. Installation and Operation Air Supply and Connections WARNING Always use clean, dry air at 150 psig maximum air pressure. Dust, corrosive fumes and/or excessive moisture can ruin the motor of an It is imperative that gas-operated motors be properly sealed air tool.
- Page 4 MVA017B/VSM-5842 Motor, Exploded Diagram Dwg. TPB476-1 MVA017B/VSM-5842 Motor, Parts List Item No Description Part Number Item No Description Part Number Cylinder Assembly MVA017-A3 Front Head Cap Screw (4) R3F-7 Rear Rotor Shaft Bearing MVA008-22 Front Head Cap Screw Seal (4)
- Page 5 5. Lubricate the Rotor (3) and Vanes (4) with a good quality SAE 10 2. Do not disassemble the motor any further than necessary to non-detergent oil. Lubricate the Bearings with Ingersoll-Rand No. replace or repair damaged parts. 28 Grease. Coat the Rotor Shaft (6) with a good quality SAE 10 3.
- Page 6 Trouble Shooting Guide Trouble Probable Cause Solution Low power or low free speed Low air pressure at the inlet Check air pressure at the inlet. For top performance and durability of parts, the air pressure must be 150 psig (10.3 bar /1030 kPa) at the inlet.
- Page 7 Notes:...
- Page 8 www.irtools.com © 2008 Ingersoll Rand Company...
