10” air motor, 6” stroke

Advertisement

Quick Links

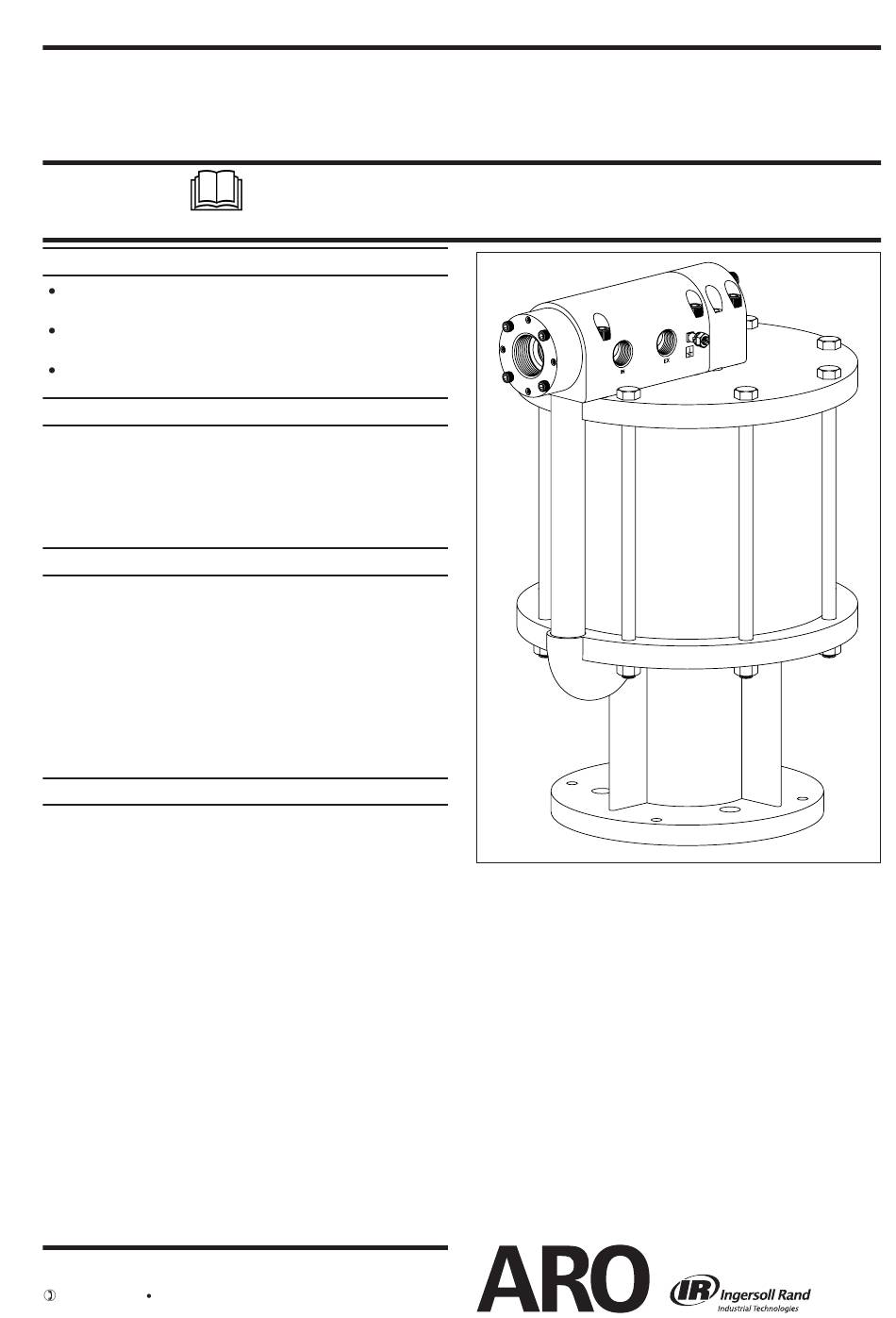

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
10" AIR MOTOR
6" STROKE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Use only genuine ARO® replacement parts to assure
compatible pressure rating and longest service life.
637110 service kit includes the necessary soft parts for
normal service of the entire air motor.
637111 service kit is a replacement valve kit.

GENERAL DESCRIPTION

The 10" air motor is a power unit used with a two-ball or
chop-check pump. It utilizes tie rod construction for easy
breakdown and it connects to the lower pump end with tie
rods for easy operation. Consult the pump model operator's
manual for specifi c instructions.
OPERATING AND SAFETY PRECAUTIONS
DO NOT EXCEED MAXIMUM AIR INLET PRESSURE OF 90
P.S.I. (6.2 bar) OR 75 CYCLES PER MINUTE.
CAUTION: High pressure equipment - Always disconnect air
supply and relieve material pressure before attempting to
service.
A ground lug is located on the air motor. This ground lug al-
lows proper grounding of the pump.
AIR AND LUBE REQUIREMENTS
A filter capable of filtering particles larger than 50 microns
should be used with a lubricator.
Filtered and oiled air will allow the pump to operate more ef-
fi ciently and yield a longer life to operating parts and mecha-
nisms.
Use an air line lubricator and keep it supplied with a good
grade of S.A.E. #90W non-detergent gear oil set at a rate not
to exceed approximately 1 drop per minute.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX (800) 892-6276
www.ingersollrandproducts.com
66651-B AIR MOTOR
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
© 2011
CCN 99834889
66651-B
RELEASED:
1-21-00
REVISED:
8-1-11
(REV. F)
Figure 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 66651-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Ingersoll-Rand 66651-B

  • Page 1: General Description

    RELEASED: 1-21-00 REVISED: 8-1-11 (REV. F) 66651-B AIR MOTOR 10” AIR MOTOR 6” STROKE READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
  • Page 2: Theory Of Operation

    THEORY OF OPERATION AIR MOTOR FUNCTION DURING UPSTROKE CONSTANT AIR PRESSURE SPOOL Pilot down EXHAUSTED AIR Air Pressure Exhausted Air AIR MOTOR FUNCTION DURING DOWNSTROKE CONSTANT AIR PRESSURE SPOOL Pilot up (exhaust) EXHAUSTED AIR Figure 2 Page 2 of 8 66651-B (en)
  • Page 3: Air Motor Assembly

    NOTE: Be sure the (13) gland is ing a wrench on the wrench fl ats provided at the top of seated squarely against the shoulder in the (30) block the (5) extension rod. manifold. 66651-B (en) Page 3 of 8...
  • Page 4 Items included in service kit 637110 (3/32” x 1-7/8” o.d.) 30 Block Manifold (1) 92515 Service Kit 637111 (entire valve section) 31 Cap Assembly (1) 66655 Items not included with 66651-B air motor (includes items 31a and 31b) Page 4 of 8 66651-B (en)
  • Page 5: Parts List

    LUBRICATION / SEALANTS Apply thread sealant to all pipe threads. Apply Loctite® 271™ to threads when assembling. Lubricate (43), (41), i.d. of (37) and all upper valve parts with Gadus S2 U1000 grease. Figure 3 66651-B (en) Page 5 of 8...
  • Page 6: Troubleshooting

    ARO® is a registered trademark of Ingersoll-Rand Company Gadus® is a registered trademark of the Shell Oil Company Loctite® is a registered trademark of the Henkel Loctite Corporation 271® is a trademark of the Henkel Loctite Corporation Page 6 of 8 66651-B (en)
  • Page 7: Cross Section

    CROSS SECTION Figure 5 66651-B (en) Page 7 of 8...
  • Page 8: Muffler Installation

    Locate the (3) muffl er on the collar of the air motor while aligning the (2) tube with the hole provided in the muf- fl er. Secure the muffler to the air motor collar with four (4) cap screws. Secure all connections. Figure 6 PN 97999-869 Page 8 of 8 66651-B (en)
