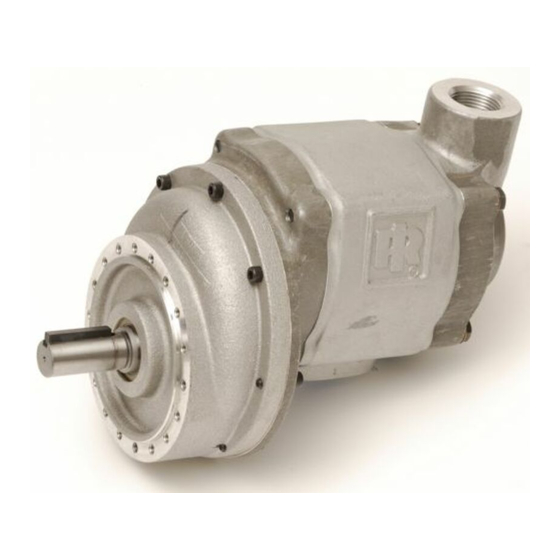

- Page 1 Form P6231 Edition 7 October 2007 CCN: 03526639 Multi-Vane Motors Series 92RM and 992RM Operation and Maintenance Information Save These Instructions...
- Page 2 WARNING General Product Safety Information ■ Read and understand this manual before operating this product. ■ It is your responsibility to make this safety information available to others that will operate this product. ■ Failure to observe the following warnings could result in injury. WARNING •...
- Page 3 Placing the Motor In Service Models 92RM1 and 92RM2 are identical except for the direction of Models 92RM1, 92RMG1, 92RMG10, 992RM1 and 992RMG1 are assembled at the factory so that the Drive Shaft rotates clockwise rotation of the Drive Shaft; likewise Models 92RMG1 and 92RMG2. The direction of rotation is determined by the position of the when facing its output end;...
- Page 4 Series 92RM and 992RM Multi-Vane Air Motors - Exploded Diagram (Dwg. TPB474-1) 03526639_ed7...
- Page 5 Series 92RM and 992RM Multi-Vane Air Motors - Parts List Item Part Description Part Number Item Part Description Part Number Motor Housing Cover Gear Case Assembly (for 92RMG10, 92RMG10-A37 for 92RMG10 92RMG10-102 92RMG1, 92RMG2 or 992RMG1) for 92RM1, 92RMG1, 92RM2, 92RMG2 92N-102 •...
- Page 6 Maintenance Lubrication of the Motor 5. Unscrew the Housing Cover Cap Screws (2) and withdraw the Motor Housing Cover (1). Try not to separate the joint between 1. Remove the Gear Case Cover Cap Screws (28). the Housing and Gear Case and do not change the location of the 2.
- Page 7 2. Slide the Front Rotor Bearing (23) onto the splined hub of the 15. If the Gear Case Cover Seal (14) was removed, work a new one Rotor and against the End Plate. into the groove in the face of the Gear Case (13). 3.
- Page 8 www.irtools.com © 2007 Ingersoll Rand Company...
