Air motor series reversible

Advertisement

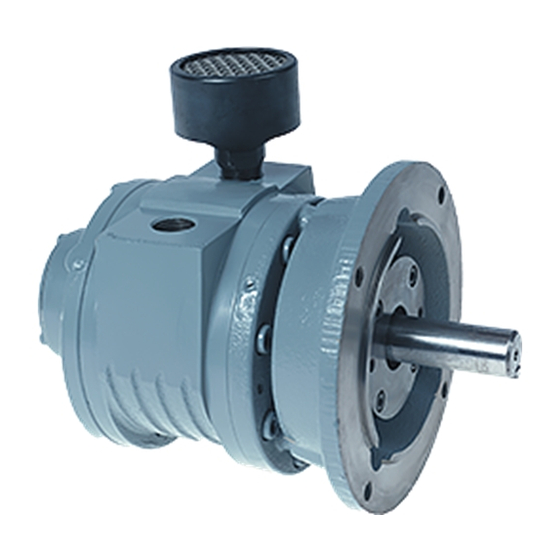

Air Motor
MRV009, MRV015, MRV040, MRV050
Series Reversible
Operation and
Maintenance Information
EN
Operation and Maintenance Information
ES
Operación y Mantenimiento de Información
FR
L'utilisation et la Maintenance Informations
Save These Instructions
04614020
Edition 5
February 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MRV009 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ingersoll-Rand MRV009

  • Page 1 04614020 Edition 5 February 2011 Air Motor MRV009, MRV015, MRV040, MRV050 Series Reversible Operation and Maintenance Information Operation and Maintenance Information Operación y Mantenimiento de Información L’utilisation et la Maintenance Informations Save These Instructions...
  • Page 2 WARNING General Product Safety Information • Important Safety Information enclosed. • Read and understand this manual before operating this tool. • It is your responsibility to make this safety information available to others that will operate this tool. WARNING Failure to observe the following warnings could result in injury. Placing the Motor in Service before installing, removing or performing any maintenance on this motor.
  • Page 3: Installation

    B5D71 = Round Shaft (14mm) with Square Key* B5D80 = Round Shaft (19mm) with Square Key** B5D90 = Round Shaft (24mm) with Square Key*** * Available on MRV009, MRV015, MRV040 only ** Available on MRV040 only *** Available on MRV050 only Lubrication and Installation Main Line(s) Inner Ø...
  • Page 4 ADVERTENCIA Información general sobre seguridad del producto • Importante información de seguridad adjunta. • Lea este manual y asegúrese de comprenderlo bien antes de utilizar este producto. • Es su responsabilidad poner esta información de seguridad a disposición de quienes vayan a utilizar el producto. ADVERTENCIA El hecho de hacer caso omiso a las advertencias siguientes podría ocasionar lesiones.
  • Page 5: Instalación

    B5D80 = Ronda del eje (19 mm) con la llave cuadrada ** B5D90 = Ronda del eje (24 mm) con la llave cuadrada *** * Disponible en MRV009, MRV015, sólo MRV040 ** Disponible en MRV040 sólo *** Disponible en MRV050 sólo Lubricación &...
  • Page 6: Utilisation Du Moteur

    AVERTISSEMENT Informations générales relatives à la sécurité du produit • Des informations de sécurité importantes sont fournies à l’intérieur. • Veuillez lire attentivement ce manuel avant d’utiliser ce l’outil. • Iil vous incombe de transmettre les presentes informations de securite a tous les utilisateurs du l’outil. AVERTISSEMENT Le non respect des avertissements suivants pourra entraîner des blessures.
  • Page 7 B5D71 =Cycle d'arbre (14mm) avec Square-clés * B5D80 = arbre ronde (19mm) avec Square clés ** B5D90 = arbre ronde (24mm) avec Square clés *** * Disponible sur MRV009, MRV015, MRV040 seulement ** Disponible sur MRV040 seulement *** Disponible sur MRV050 seulement Lubrication &...
  • Page 8: Specifications

    Specifi cations Speed at Free Air Consumption Max Power Starting Torque Stall Torque Weight Max. Power Speed * at Max. Power Series lb.-ft. lb.-ft. scfm MRV009 0.88 0.66 3000 7900 1.70 2.30 2.30 3.10 7.50 3.40 MRV015 1.50 1.10 3000 7900 2.60...
  • Page 9 Model MRV009C 63.5 [2.50] 116.4 [4.582] 31.75 [1.25] 72.7 [2.862] REVERSE FORWARD INLET INLET 2X ¼” - 18 NPT 15.8 [.622] 28.52 Ø 85.8 Ø 63.6 [1.123] [3.378] [2.50] 158.4 [6.235] 25.4 [1.00] 15° 15° Ø 44.45 102.5 [1.75] [4.034] 11.5 Ø...
  • Page 10 Model MRV015FB 136.8 [5.39] 82.8 [3.26] 28.6 15.8 [1.12] [.62] Woodruff Key # 3 REVERSE FORWARD INLET INLET 2X¼ “-18 NPT 12.30 [.48] 15° 15° 14.2 Ø 12.7 [.56] 133.0 [.50] [5.24] 89.0 63.50 [3.50] M6-6H [2.50] 3 Holes [.24] [.31] Ø...
  • Page 11 Model MRV040B5D80 191.6 [7.543] 112.0 [4.411] [.236] Ø 165.0 [6.496] [.138] 4 X Ø 11.5 [.453] Holes 36.4 [1.433] 20.0 [.787] 196.25 15.0 [.591] [7.726] 21.5 Ø 200.0 Ø 130.0 [.846] [7.874] [5.118] M6-7H 18 [.709] Ø 19.0 [.748] 45° 45°...
  • Page 12 Model MRV050A 70.0 [2.756] 150.7 35.0 [5.935] [1.378] 4.775 REVERSE [.188] 12.0 INLET M6-6H FORWARD [.472] 2X ½”-14 NPT 3 Holes INLET 25.0 [.984] 1 to 3 mm 206.5 [8.130] [.217] Ø 80.95 136.0 [3.187] [5.354] 24.35 Ø 22.23 [.959] [.875] 45°...
  • Page 13 MRV- Series Air Motor - Exploded View (Dwg. TPM1002) MRV- Series Air Motor - Parts List Item Description Part Number Cylinder Front End Plate Rear End Plate Rotor Drive Key Vane (4) See Service Kits Vane Spring (2) Vane Pin (4) Rear Rotor Bearing Front Rotor Bearing Rotor Shaft Seal...
  • Page 14: Equipment Options

    Equipment Options Furnished with Catalogue Models Series Optional Accessories Mounting Muffl er 2 Hole Face Mount MRV009A Flange with MRV009B5D71 MRV015A-AH634 Mounting Foot 2 Hole Face Mount MRV015A Flange with MRV015B5D71 2 Hole Face Mount Supplied with Motor MRV040A Flange with MRV040B5D71 MRV015A-AH634 Mounting Foot Flange with MRV040B5D80 2 Hole Face Mount...
  • Page 15: Maintenance Section

    Width of Replacement Vane The Rotor Shaft Seal (7) is pressed into the Front End Plate. Do not remove this Seal unless you have a new Seal on hand. This Seal is MRV009 3/4 inch (19.05 mm) 9/16 inch (14.29 mm) always destroyed in the removal process.
  • Page 16 Assembly of the Motor NOTICE Position the Rotor vertically on the table of an arbor press so that If you are installing a new Gasket, you will have to punch or cut the short hub is upward. two holes in it to accommodate the Cylinder Dowels. Do this Place the Rear End Plate, fl at side fi rst, on the short hub of the by placing the Gasket on the Gasket on the Rear End Plate to Rotor.
  • Page 17: Troubleshooting Guide

    Troubleshooting Guide Trouble Probable Cause Solution Low power or low free speed Low air pressure at the inlet Check air pressure at the inlet. For top performance and durability of parts, the air pressure must be 90 psig (6.2 bar/620 kPa) at the inlet. Worn or broken Vanes Install a new set of Vanes.
  • Page 18 Notes:...
  • Page 19 Notes:...
  • Page 20 www.ingersollrandproducts.com © 2011 Ingersoll Rand...

This manual is also suitable for:

Mrv015Mrv040Mrv050
