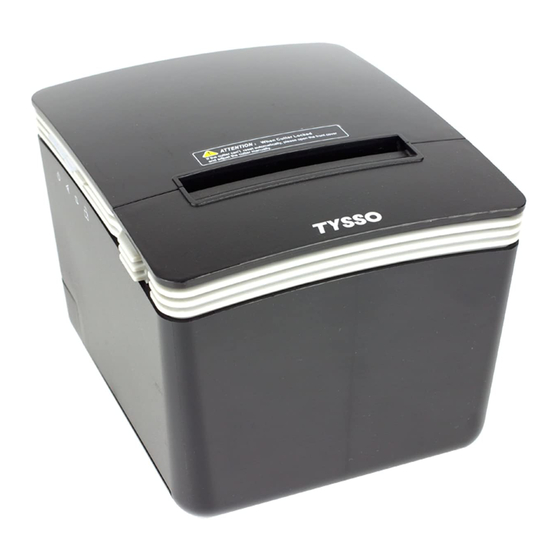

Tysso PRP-300 Instruction Manual

Thermal receipt printer
Hide thumbs Also See for PRP-300:
Table of Contents

Advertisement

Quick Links

PRP-300
Thermal Receipt Printer
Instruction Manual
Please save the user manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRP-300 and is the answer not in the manual?

Questions and answers

Related Manuals for Tysso PRP-300

Summary of Contents for Tysso PRP-300

  • Page 1 PRP-300 Thermal Receipt Printer Instruction Manual Please save the user manual for future reference.

  • Page 3: Table Of Contents

    Contents IMPORTANT SAFETY NOTIFICATION....1 PRODUCT OVERVIEW ........3 Main Features ............3 Packing ..............4 Specification ............... 5 Part Description ............7 DIP Switch Configuration ......... 13 INSTALLING YOUR PRINTER ......15 1. Connecting Your Printer........15 2. Install/Replace the Paper Roll ......17 3.
  • Page 4 APPENDIX ............42 1. Cutter Maintenance ..........42 2. RS-232 Pin Assignment........44 3. RJ-11 Pin Assignment ......... 45 4. Self Test ............... 46 5. Code Page Setup ..........48 6. LPT and UTP (USB to Parallel) Interface installation (customized models reserved)......52...

  • Page 5: Important Safety Notification

    A. Important Safety Notification  Read the instruction manual carefully before use. Save the manual in the near location for further reference.  Use only parts or accessories, especially power adapter, recommended by the manufacturer; unapproved parts may be hazardous and cause injures to the product or human.
  • Page 6 Important Safety Notification  Do not expose the product to rain or moisture, such as a bathtub, a washbowl, a kitchen sink, a laundry tub, and a swimming pool.  Do not expose the machine under direct sunlight, and keep it away from any heat source. ...

  • Page 7: Product Overview

    B. Product Overview Main Features  Compact and Stylish Design  Paper Auto-Cutter  Multi-I/O Interface (Serial +Ethernet +USB)  Cash drawer connection port (RJ-11)  Compatible with ESC/POS print commands set  Various Drivers support  User friendly, drop-and-print paper installation, simple paper jam elimination ...

  • Page 8: Packing

    Packing Printer Unit Power Adaptor *Power Cord Paper Roll **Printer Cable Paper Roll Holder Quick Paper Width Installation Guide Guide) * Power Cord is selectable depending on the types of electrical plug. ** Printer cable is selectable depending on the interface required (RS-232 or USB B-Type).

  • Page 9: Specification

    Specification Model No. PRP-300 Print Method Thermal line printing Print Speed 250mm/sec Print Life 100 Km ANK Font. (ASCII Mode) Font A: 12 x 24 dots, Print Font Font B: 9 x 17 dots Graphic Font) Chinese Character: 24 x 24 dots...
  • Page 10 Interface Multi I/O Interface I/O Interface (Serial +Ethernet +USB) Cash Drawer DC 24V/1A, 6-Wire RJ-11 Notification Indicator Audio and LED Indicators Auto Cutter Partial Paper End Notice Over-Heat Halt-on Protection Others 24VDC/2.5A Power Input (External Adapter: 100~240VAC 50/60Hz) Color Black / White Compliance FCC / CE / WEEE / RoHS Weight...

  • Page 11: Part Description

    Part Description Product Views Top View Side View Front View Bottom View Rear View - 7 -...
  • Page 12 Dimensions - 8 -...
  • Page 13 Control buttons & Indicators Power Indicator Error Indicator Paper Indicator Paper Feed Button Cover Release Button - 9 -...
  • Page 14 Control Buttons Paper Feed: This function is to advance the paper. Press the key and the paper advances by a single line. Press and hold the key for over 3 seconds and the paper advances by multiple lines. Cover Release Button: Push the button to the right to open the printer cover.
  • Page 15 I/O Ports & Configuration DIP Switches Power Switch Multi-I/O Ports Rear View I/O Port Bracket Side View Note: When plug the cables to the Printer, detach the I/O Port Bracket beforehand so as to secure connectors easily. Remember to re-install the I/O Port Bracket to the printer as the connectors are properly secured.
  • Page 16 Multi-I/O Ports RS-232 RJ-45 RJ-11 Cash Power *Printer Cable Drawer Adaptor Note:  Power Cord is selectable depending on the types of electrical plug.  Printer cable is selectable depending on the interface required (RS-232 or USB B-Type).  RJ-45 cable is not supplied and need purchased separately.

  • Page 17: Dip Switch Configuration

    DIP Switch Configuration To change the setting of the printer manually: Turn off the printer. Remove the protective cover of the DIP Switches. Adjust the DIP switches to configure the printer. Protective Cover DIP Switch Setting Function Paper Cutter Yes* Audio Alarm Yes * Print Density...
  • Page 18 Baud Rate Setting (DIP 7, DIP 8) 19200 9600 115200 38400 (*Default) - 14 -...

  • Page 19: Installing Your Printer

    C. Installing your Printer Connecting Your Printer Please check the printer and the supplied accessories before Installation. It’s recommended to read the entire instruction manual prior to the installation. Printer Cable Power Adaptor Power Cord Host PC Printer Place the printer on the designate location. Detach the I/O Port Bracket.
  • Page 20 Note: Connect to the LAN: Make sure the Printer and HOST PC are properly connected to the HUB. (The default IP address of the Printer is 192.168.123.100) Printer Host PC - 16 -...

  • Page 21: Install/Replace The Paper Roll

    Install/Replace the Paper Roll Pull the Cover Release Button to open the Cover. Pass the Paper Roll Holder through the Receipt Paper Roll. Paper Roll Holder - 17 -...
  • Page 22 Roll out and install the Paper Roll with Holder into the Printer. (with the edges of the paper roll holder fitted onto the holder slots) Paper Roll & Holder Holder Slot Replace the Cover and tear out the paper. - 18 -...
  • Page 23  Install the Paper Width Guide When using a paper roll in smaller width, install the Paper Width Guide first, and then install the paper roll with holder. Paper Roll & Holder Paper Width Holder Slot Guide - 19 -...

  • Page 24: Install The Driver Of The Printer

    Install the Driver of the Printer Before installing the driver of your printer, make sure the printer is properly connected to the host PC. To install the driver of the printer: Access the website www.fametech.com.tw download the driver. Double click the icon “SetupPRP.EXE” to initiate the installation.
  • Page 25 Click “Install” to continue. - 21 -...
  • Page 26 Select “Install this driver software anyway”. - 22 -...
  • Page 27 Select the Printer Port. Enter printer name and select the port type for installation. (USB, Serial, TCP/IP, LPT or UTP). You can click the checkbox to set the printer as default printer. Click “OK” to continue. - 23 -...

  • Page 28: For Usb Interface

    For USB Interface: Select the USB port The Virtual COM driver is installed during the process. - 24 -...
  • Page 29  Searching USB Device: If the printer is already attached and the message box below is displayed, please Power OFF and Power ON the printer to continue installation. - 25 -...
  • Page 30  Installation completed The driver is successfully installed. Click “Finish” to exit the menu. - 26 -...

  • Page 31: For Serial Interface

    For Serial Interface Select and configure the serial port for driver installation. - 27 -...
  • Page 32 Select the COM port preferred and click “OK” to continue. To configure the selected COM port, select the COM port and click “Configure Port” to continue (see next page). - 28 -...
  • Page 33  Configure the Serial Port: Select the proper settings (baud rates. Data bits, parity…etc. - 29 -...
  • Page 34  Installation completed The driver is successfully installed. Click “Finish” to exit the menu. - 30 -...

  • Page 35: For Ethernet (Tcp/Ip) Interface

    For Ethernet (TCP/IP) Interface: Select and assign a TCP/IP port for your printer. Click “OK” to continue. Note: Printing on the TCP/IP Port is only possible if both IP Address (Printer and Computer) belongs to the same class. - 31 -...
  • Page 36  Select IP Address Move the cursor to the Available Port (IP address). Click “OK” to continue. Note: User can configure the selected IP port or create a new IP address manually. - 32 -...
  • Page 37 To Configure The TCP/IP Port: Configure port (If required) by clicking “Configure Port” button and apply settings. - 33 -...
  • Page 38 To Create a New TCP/IP Port: If TCP/IP port doesn’t exist in the list, click “Create Port” button for further installation. - 34 -...
  • Page 39 Add New TCP/IP Port: IP Addresses of all the Printers that are attached over the network are shown in “Add New TCP/IP Port” dialog. IP Address: The present IP address setting of the printer. Select a correct IP address for the printer. Printer Self Test Page: User can click “Printer Self Test Page”...
  • Page 40 Printer New IP Settings: User can enter the New IP address, Subnet Mask, and Gateway Address manually. Click “Set Parameters” button to confirm the new parameters of Printer. Note: Reboot the Printer The printer will reboot automatically and return to the previous menu after the new parameters are confirmed.
  • Page 41 Printer Status: Click “Printer Status” to examine the printer. Check the status list and resolving the red-mark items. Click “Cancel” to return - 37 -...
  • Page 42  Installation completed The driver is successfully installed. Click “Finish” to exit the menu. - 38 -...

  • Page 43: Examine The Printer

    Examine the Printer Now user can access to the “Devices and Printers” and examine the new printer. - 39 -...

  • Page 44: For Lpt And Utp (Usb To Parallel) Interface (Customized

    For LPT and UTP (USB to Parallel) Interface (customized models only) The two interfaces are only reserved for customized models only. Please consult your local supplier before installation. To install the driver, please refer to the appendix for instructions - 40 -...
  • Page 45 - 41 -...

  • Page 46: Appendix

    D. Appendix Cutter Maintenance In general, the printer will initial and reset the cutter when turn on the power. To reset the cutter back to the initial position: Turn off the printer. Turn on the printer and the printer will initial and reset the cutter.
  • Page 47 Adjustment Gear Front Cover Note: Do not remove the protective cover with force or it may damage the cutter or printer head. Warning: Beware of the Cutting Edge of the cutter module during maintenance in order to avoid injury to the person near the printer.

  • Page 48: Rs-232 Pin Assignment

    RS-232 Pin Assignment Signal Description N.C. XON/XOF Handshake (Control codes transmission). Data transmission (the printer receives data from the HOST) N.C. Ground Printer Status N.C. RTS. Printer Status N.C. - 44 -...

  • Page 49: Pin Assignment

    RJ-11 Pin Assignment Signal Signal Description Direction Ground Frame Ground Cash Drawer Kick Out Signal Output Cash Drawer Input Open/Close Status +VDC 24v Cash Drawer Kick Out Signal Output Signal Ground - 45 -...

  • Page 50: Self Test

    Self Test This function allows user to perform self-test and print out the settings of the printer unit: Turn off the printer. Press and hold the Paper Feed Button. Turn on the Power Switch of the printer. As the Indicators blink, release the Paper Feed Button.
  • Page 51 Paper Feed Button Power Switch Protocols: TCP/IP (A1) Mac address: X-XXX-XXX-XX IP address: 192.168.123.100 Netmask: 255.255.255.0 Gateway: 192.168.1.1 DHCP: Disabled Print out the Self-test data - 47 -...

  • Page 52: Code

    Code Page Setup Access the website www.fametech.com.tw download the utility files. Click the folder “SetCodePage” to access the software Double click the icon “Setup.EXE” to initial installation. Follow the instructions to install the utility. - 48 -...
  • Page 53  Code Page Setup Utility This utility can help user to setup the code page of the printer. Note: Before Setup It may need to re-configure the printer prior to the codepage setup (e.g.: DIP switch). It’s recommended to consult the technical personnel relating to the information about the code page and application.
  • Page 54 For Parallel LPT Port: Select LPT1 as the printer port to establish communication. For Ethernet (TCP/IP): Enter the IP address of the printer to establish the communication. - 50 -...
  • Page 55  Select Page Code To select the codepage desired: Make sure to the DIP switch 4 of the printer is set ON (please refer to DIP Switch Configuration for further information). Go to the scroll menu and select the preset codepage desired.

  • Page 56: Lpt And Utp (Usb To Parallel) Interface Installation (Customized Models Reserved)

    LPT and UTP (USB to Parallel) Interface installation (customized models reserved) Before Installation: Please consult the local supplier and purchase the customized models support LPT or UTP (USB to Parallel) interface. WARNING: This instruction is ONLY for customized models with LPT or UTP (USB to Parallel) interface.
  • Page 57  For LPT Interface: Select the LPT port - 53 -...
  • Page 58 Select the LPT port preferred and click “OK” to continue. - 54 -...
  • Page 59 Installation completed: The driver is successfully installed. Click “Finish” to exit the menu. - 55 -...
  • Page 60  For UTP Interface: Select the UTP port - 56 -...
  • Page 61 Select the LPT port preferred and click “OK” to continue. - 57 -...
  • Page 62 Installation completed: The driver is successfully installed. Click “Finish” to exit the menu. - 58 -...
  • Page 63 20190128...
