Tysso PRP-058-S User Manual

5. Pinouts
A. Serial Connection
Printer Dsub-25pin POS Dsub-25pin
Socket Serial Socket
GND 7
6 DSR 6
20 DTR 20
RTS 4
7 GND 7
5 CTS 5
TXD 2
8 DCD 8
3 RXD 3
RXD 3
2 TXD 2
B. Parallel Connection
Pin# Signal Pin#
1 /STB 10
2 DATA1 11
3 DATA2 12
4 DATA3 13
5 DATA4 14
6 DATA5 15
7 DATA6 16
8 DATA7 17
9 DATA8 18~25
C. Power Input
I
O
+ -
OFF ON
8.8V/3.5A
PRP-058 requires DC 8.8V/3.5A power adapter.
D. Cash Drawer Port
Pin# Signal Description
1. N/C
2. Drive Signal Cash drawer drive signal (output)
3. Drive Signal Cash drawer drive signal (output)
4. DC +12V Output power
5. DC +12V Output power
6. N/C
4

6. Command Set

Command Hex Code
No.
1 LF 0A
POS Dsub-9pin
Serial Socket
2 ESC J n 1B 4A n 18<=n<=FF Prints out buffer and advances n lines
3 ESC 2 1B 32
6 DSR
4 ESC 3 n 1B 33 n 0B<=n<=FF Sets line space to n dots, n=30 default
4 DTR
5 ESC ! n 1B 21 n
5 GND
n=00, 10, 20, 30
8 CTS
1 DCD
2 RXD
3 TXD
6 ESC SO 1B 0E
Signal
/ACK
7 ESC DC4 1B 14
BUSY
GND
8 ESC c 5 n 1B 63 35 n
SEL
00<=n<=01
/ERR
(Default n=00)
N/C
N/C
N/C
9 ESC * m 1B 2A m n1 n2
GND
n1 n2 d1 d1...dx
...dx m=01, 21
00<=n1<=FF
n2=00, 01
00<=d<=FF
10 ESC @ 1B 40
11 ESC P m 1B 70 m n1 n2
n1 n2 m=00
01<n1<=n2
n1<=n2<FF
Note: Commands detailed information can be referred from the bundled
diskette.
Function Description
Prints out buffer and advances one line
Sets line space to 1/6 inch or 30 dots
Sets font size, n=00 default
n=10 double height n=20 double width
n=30 double height and double width
(This command gets overridden by ESC DC4
command.)
Sets double width printing for all characters
subsequent to the command in a line (This
command gets overridden by LF, CR, or ESC
DC4 command.)
Resets to default font size
Enables Feed & Online buttons n=00
Disables Feed & Online buttons n=01
(The button get enabled automatically when
paper roll being loaded.)
Sets bit image mode
m=01 8 dots double density
m=21 24 dots double density
n1+256*n2 total number of horizontal dots
d=1 to print the dot
d=0 not to print the dot
x denotes the data number
x=n1+256*n2 when m=01
x=(n1+256*n2)*3 when m=21
Initializes printer and sets all defaults
Generate drawer kick-out drive pulse
The defined pules:
On time is n1 x 2 ms
Off time is n2 x 2 ms
5

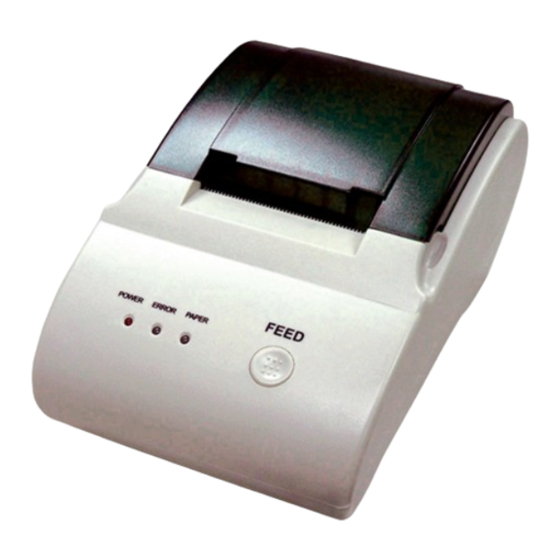

User's Manual
PRP-058 Series

Receipt Printer

Contents
1. Unpacking ................................................................................... 1
A. Standard Package.................................................................. 1
B. Models.................................................................................... 1
2. Specifications ............................................................................
3. Indicators and Connections ..................................................... 2
A. Front View of the Printer......................................................... 2
B. Rear View of the Printer.......................................................... 2
C. Loading Paper Roll................................................................. 3
4. Self Test of the Printer ............................................................... 3
5. Pinouts ........................................................................................ 4
A. Serial Connection................................................................... 4
B. Parallel Connection................................................................ 4
C. Power Input............................................................................ 4
D. Cash Drawer Port................................................................... 4
6. Command Set ............................................................................ 5
1
