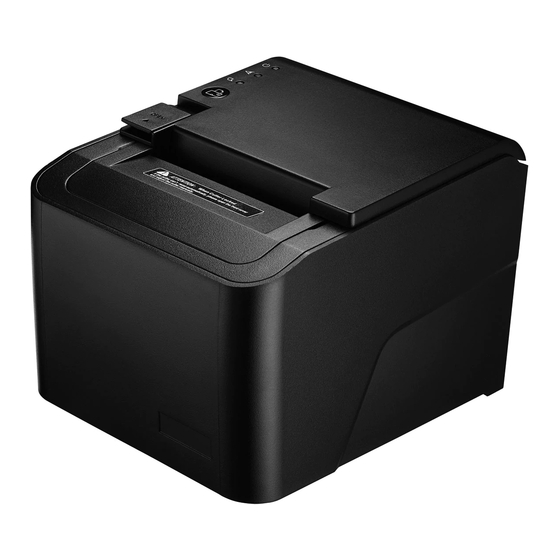

Tysso PRP-250 Instruction Manual

Thermal receipt printer
Hide thumbs Also See for PRP-250:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
PRP-250
Thermal Receipt Printer
Instruction Manual
Please keep the manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRP-250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tysso PRP-250

Summary of Contents for Tysso PRP-250

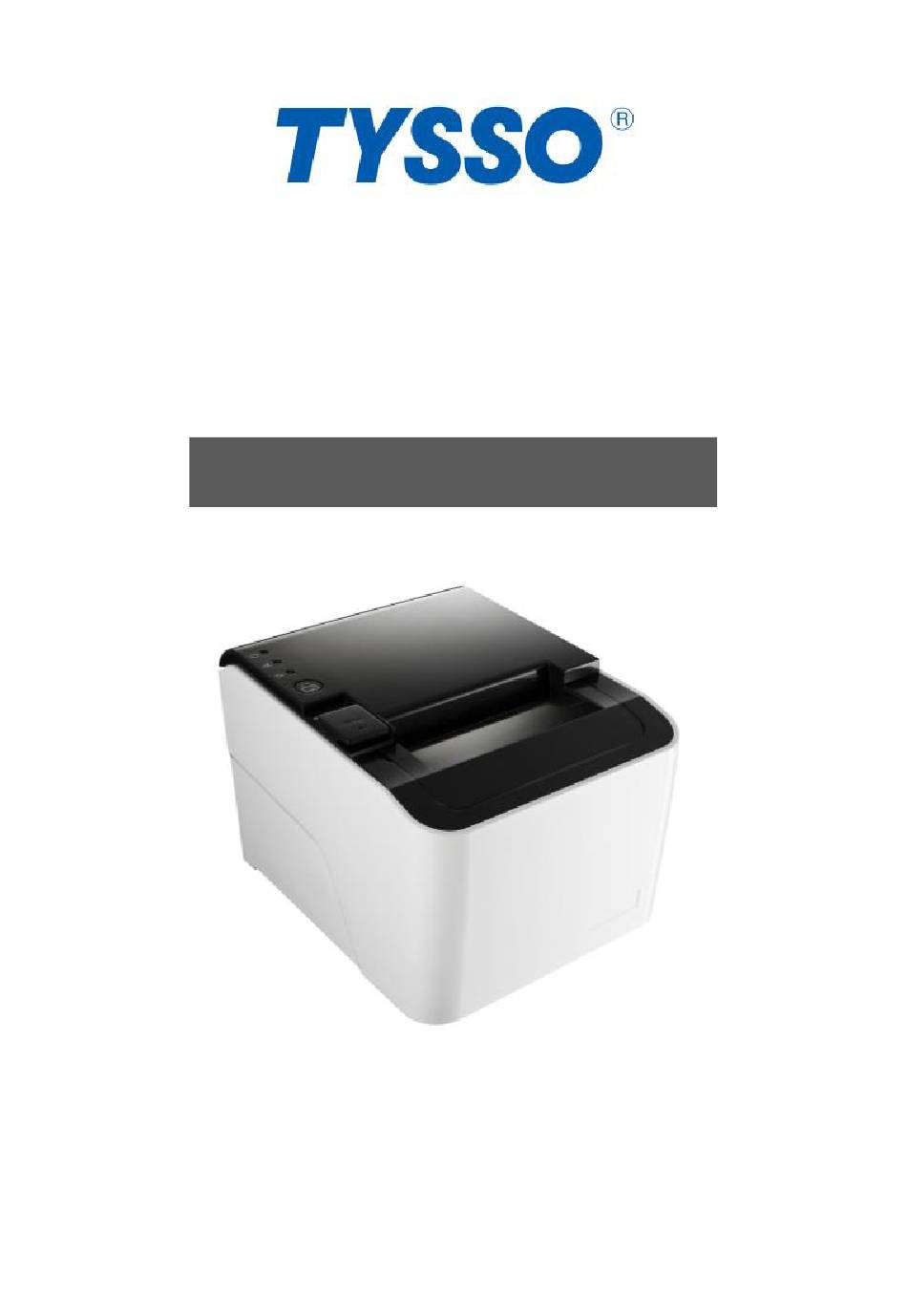

  • Page 1 PRP-250 Thermal Receipt Printer Instruction Manual Please keep the manual for future reference.

  • Page 3: Table Of Contents

    Contents A. IMPORTANT SAFETY NOTIFICATION ....1 B. PRODUCT OVERVIEW ......... 3 Feature ................4 Packing ................5 Specification ..............6 Part Description .............. 8 C. INSTALLING YOUR PRINTER ......15 1. Connecting Your Printer ......... 15 2. Install/Replace the Paper Roll ........ 17 3.
  • Page 4 D. APPENDIX ............48 1. Cutter Maintenance ..........48 2. DIP Switch Configuration ........51 3. Interface PIN Assignment ........53 4. Self Test ..............56 5. Code Page Setup ........... 57...

  • Page 6: Important Safety Notification

    A. Important Safety Notification  Read the instruction manual carefully before use. Save the manual in the near location for further reference.  Use only parts or accessories, especially power adapter, recommended by the manufacturer; unapproved parts may be hazardous and cause injures to the product or human.
  • Page 7 Important Safety Notification  Do not expose the product to water or moisture, such as a bathtub, a washbowl, a kitchen sink, a laundry tub, and a swimming pool.  Do not expose the machine under direct sunlight, and keep it away from any heat source. ...

  • Page 8: Product Overview

    POS System as well. The Multi-I/O interfaces (USB/RS-232/RJ-45/RJ-11 or Parallel/USB/RJ-11) provide PRP-250 with good connectivity to various system or POS solutions. Easy maintenance and fascinating high-speed performance, PRP-250 is the best choice of high-quality demand solutions.

  • Page 9: Feature

    Feature  Compact and Stylish Design.  Paper Auto-Cutter.  Multi-I/O Interface (Serial +Ethernet +USB or Parallel +USB type selectable).  Cash drawer connection port (RJ-11).  Compatible with ESC/POS print commands set.  Various Drivers support.  User friendly, drop-and-print paper installation, simple paper jam elimination.

  • Page 10: Packing

    Packing Printer Unit Power Adaptor *Power Cord Paper Roll **Printer Cable Paper Roll Holder Quick Paper Width Installation Guide Guide) * Power Cord is selectable depending on the types of electrical plug. ** Printer cable is selectable depending on the interface required (RS-232 or USB B-Type).

  • Page 11: Specification

    Specification General Print Method Thermal line printing Print Speed 250mm/sec Print Life 100 Km ANK Font (ASCII Mode) Font A: 12 x 24 dots, Print Font Font B: 9 x 17 dots Graphic Font) Chinese Character: 24 x 24 dots Print Resolution 576 dots/line or 512 dots/line International Font, Big 5 Chinese,...
  • Page 12 Interface Multi I/O Interface (Serial + Ethernet + USB or I/O Interface Parallel + USB available) Cash Drawer +24VDC/1A, 6-Wire RJ-11 Notification Indicator Audio and LED Indicators Auto Cutter Partial Paper End Notice Over-Heat Halt-on Protection Others +24VDC/2.5A Power Input (External Adapter: 100~240VAC, 50/60Hz) Color...

  • Page 13: Part Description

    Part Description Product Views Top View Side View Front View Bottom View Rear View Rear View (Parallel) (Serial/Ethernet/USB)
  • Page 14 Dimensions...
  • Page 15 I/O Ports & Switches Power Switch Multi-I/O Ports Configuration DIP Switches...
  • Page 16 Control Buttons & Indicators Power Indicator Error Indicator Paper Indicator Paper Feed Button Cover Release Button Control Buttons Paper Feed: This function is to advance the paper. Press the key and the paper advances by a single line. Press and hold the key for over 3 seconds and the paper advances by multiple lines.
  • Page 17 Indicator Status Indicator Status Description Power Off Power Power On Printer Error (Out of paper, Printer head Error over heat, or paper cutter error) Out of paper Paper * The Error Indicator is lit as well...
  • Page 18 I/O Ports RS-232/USB/Ethernet Type RS-232 RJ-45 RJ-11 Cash Power *Printer Cable Drawer Adaptor Note:  Power Cord is selectable depending on the types of electrical plug.  Printer cable is selectable depending on the interface required (RS-232 or USB B-Type). ...
  • Page 19 Parallel Type Parallel Port RJ-11 Printer Cable Cash Power Drawer Adaptor...

  • Page 20: Installing Your Printer

    C. Installing your Printer Connecting Your Printer Please check the printer and the supplied accessories before Installation. It’s recommended to read the entire instruction manual prior to the installation. Power Printer Cable Adaptor Power Cord Host PC Printer Place the printer on the designate location. Plug the connector of Power Adaptor to the printer.
  • Page 21 Note: Connect to the LAN: Make sure the Printer and HOST PC are properly connected to the HUB. (The default IP address of the Printer is 192.168.123.100) Printer Host PC...

  • Page 22: Install/Replace The Paper Roll

    Install/Replace the Paper Roll Pull the Cover Release Button to open the Cover. Pass the Paper Roll Holder through the Receipt Paper Roll. Roll out and install the Paper Roll with Holder into the Printer. (with the edges of the holder fitted onto the holder slots) Replace the Cover and tear out the paper.
  • Page 23 Install the Paper Width Guide When using a paper roll in smaller width, install the Paper Width Guide first, and then install the paper roll with holder. Paper Width Guide...

  • Page 24: Installing The Driver Of The Printer

    Installing the Driver of the Printer Before installing the driver of your printer, make sure the printer is properly connected to the host PC. To install the driver of the printer: Access the website www.fametech.com.tw download the driver. Double click the icon “SetupPRP.EXE” to initiate the installation.
  • Page 25 Click “Install” to continue.
  • Page 26 Select “Install this driver software anyway”.
  • Page 27 Select the Printer Port: Enter printer name and select the port type for installation (USB, Serial, TCP/IP, LPT or UTP). User can click the checkbox to set the printer as default printer. Click “OK” to continue.

  • Page 28: For Usb Interface

    For USB Interface: Select the USB port. The Virtual COM driver is installed during the process.
  • Page 29  Searching USB Device: If the printer is already attached and the message box below is displayed, please Power OFF and Power ON the printer to continue installation.
  • Page 30  Installation completed The driver is successfully installed. Click “Finish” to exit the menu.

  • Page 31: For Serial Interface

    For Serial Interface: Select and configure the serial port for driver installation.
  • Page 32 Select the COM port preferred and click “OK” to continue. To configure the selected COM port, select the COM port and click “Configure Port” to continue (see next page).
  • Page 33  Configure the Serial Port: Select the proper settings (baud rates. Data bits, parity…etc.
  • Page 34  Installation completed The driver is successfully installed. Click “Finish” to exit the menu.

  • Page 35: For Lpt Interface

    For LPT Interface: Select the LPT port...
  • Page 36 Select the LPT port preferred and click “OK” to continue.
  • Page 37  Installation completed The driver is successfully installed. Click “Finish” to exit the menu.

  • Page 38: For Ethernet (Tcp/Ip) Interface

    For Ethernet (TCP/IP) Interface: Select and assign a TCP/IP port for your printer. Click “OK” to continue. Note: Printing on the TCP/IP Port is only possible if both IP Address (Printer and Computer) belongs to the same class.
  • Page 39  Select IP Address Move the cursor to the Available Port (IP address). Click “OK” to continue. Note: User can configure the selected IP port or create a new IP address manually.
  • Page 40 To Configure The TCP/IP Port: Configure port (If required) by clicking “Configure Port” button and apply settings.
  • Page 41 To Create a New TCP/IP Port: If TCP/IP port doesn’t exist in the list, click “Create Port” button for further installation.
  • Page 42 Add New TCP/IP Port: IP Addresses of all the Printers that are attached over the network are shown in “Add New TCP/IP Port” dialog. IP Address: The present IP address setting of the printer. Select a correct IP address for the printer. Printer Self Test Page: User can click “Printer Self Test Page”...
  • Page 43 Set Parameters: Click “Printer New IP Settings” button to configure the Printer parameters settings (see next page). Printer New IP Settings: User can enter the New IP address, Subnet Mask, and Gateway Address manually. Click “Set Parameters” button to confirm the new parameters of Printer.
  • Page 44 Cancel: User can click “Return” button to cancel the new IP settings and return to the previous menu. Printer Status: Click “Printer Status” to examine the printer.
  • Page 45 Check the status list and resolving the red-mark items. Click “Cancel” to return...
  • Page 46  Installation completed The driver is successfully installed. Click “Finish” to exit the menu.

  • Page 47: For Utp Interface

    For UTP Interface: WARNING: This instruction is ONLY for customized model with UTP (USB to Parallel) interface. DO NOT install the driver to any models not support the UTP interface. It may cause the printer not functioning. Before Installation: Please consult the local supplier and purchase the customized models support UTP (USB to Parallel) interface.
  • Page 48  Select the UTP Port Select the UTP port and Click “OK” to continue.
  • Page 49 Select the LPT port preferred and click “OK” to continue.
  • Page 50  Installation completed The driver is successfully installed. Click “Finish” to exit the menu.

  • Page 51: Examine The Printer

    Examine the Printer Now user can access to the “Devices and Printers” and examine the new printer.

  • Page 53: Appendix

    D. Appendix Cutter Maintenance In general, the printer will initial and reset the cutter when turn on the power. To reset the cutter back to the initial position:  Turn off the printer.  Turn on the printer and the printer will initial and reset the cutter.
  • Page 54 Pull the Cover Release Button to open the Cover. Slightly pull up the Front Cover and remove it from the printer. Front Cover...
  • Page 55 There is an Adjustment Gear in the cutter. Turn the Adjustment Gear to move the cutter back to the position. Cutting Edge Adjustment Gear Note: Do not remove the protective cover with force or it may damage the cutter or printer head. Warning: Beware of the Cutting Edge during maintenance in order to avoid injury to the person near the printer.

  • Page 56: Dip Switch Configuration

    DIP Switch Configuration To change the setting of the printer manually: Turn off the printer. Loosen the securing screw on the bottom of the printer. Remove the protective cover of the DIP Switches. Protective Cover...
  • Page 57  DIP Switch Setting Function Auto Cutter Yes* Audio Alarm Yes * Print Density Dark Light * Two-byte Character Code Yes* Character Per Line 48 * Cutter with Cash Drawer No * 7 & 8 Baud Rate Setting OFF* “*” Default Setting. ...

  • Page 58: Interface Pin Assignment

    Interface PIN Assignment  RS-232 Pin Assignment Signal Description N.C. XON/XOF Handshake (Control codes transmission). Data transmission (the printer receives data from the HOST) N.C. Ground Data Set ready N.C. CTS. Clear to send N.C.
  • Page 59  Parallel Pin Assignment Signal Signal Description Source The HOST (computer) /STB HOST presents the data on the data lines and pulses STB. DATA0 DATA1 DATA2 DATA3 Indicates Data Bit 0 ~ Data HOST Bit 7 (8 bits) DATA4 DATA5 DATA6 DATA7 Acknowledge Signal...
  • Page 60  RJ-11 Pin Assignment Signal Signal Description Direction Ground Frame Ground Cash Drawer Kick Out Signal Output Cash Drawer Input Open/Close Status +VDC 24v Cash Drawer Kick Out Signal Output Signal Ground...

  • Page 61: Self Test

    Self Test This function allows user to perform self-test and print out the settings of the printer unit: Turn off the printer. Press and hold the Paper Feed Button. Turn on the Power Switch of the printer. Release the Paper Feed Button. The Indicators would blink and then the printer starts printing out the self-test data.

  • Page 62: Code

    Code Page Setup Access the website www.fametech.com.tw download the utility files. Click the folder “SetCodePage” to access the software Double click the icon “Setup.EXE” to initial installation. Follow the instructions to install the utility.
  • Page 63  Code Page Setup Utility This utility can help user to setup the code page of the printer. Note: Before Setup It may need to re-configure the printer prior to the codepage setup (e.g.: DIP switch). It’s recommended to consult the technical personnel relating to the information about the code page and application.
  • Page 64 For Parallel LPT Port: Select LPT1 as the printer port to establish communication. For Ethernet (TCP/IP): Enter the IP address of the printer to establish the communication.
  • Page 65  Select Page Code To select the codepage desired: Make sure to the DIP switch 4 of the printer is set ON (please refer to DIP Switch Configuration for further information). Go to the scroll menu and select the preset codepage desired.
  • Page 66 20190128...
