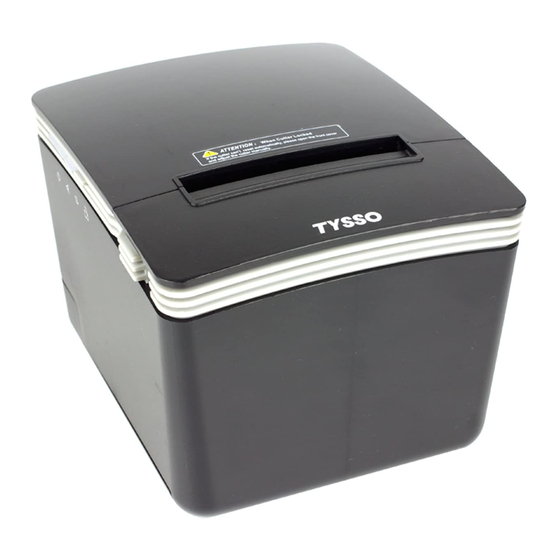

Tysso PRP-300 Quick Installation Manual

QRC-PRINTER

Thermal Receipt Printer

Quick Installation Guide

Specification

General
Print Method Thermal line printing
Print Speed 250mm/sec
Print Life 100 Km
ANK Font.
(ASCII Mode)
Print Font Font A: 12 x 24 dots, Font B: 9 x 17 dots
Graphic Font) Chinese Character: 24 x 24 dots
Print Resolution 576 dots/line or 512 dots/line
International Font, Big 5 Chinese,
Print Font Character Support
GB Chinese, Japanese, Korean selectable
Character Per Line 48 (Font A) / 64(Font B)
Effective Print Width 72mm
Paper Width 79.5mm± 0.5mm
Paper Roll Diameter 83mm
Paper Thickness 0.06~0.08mm
Win 9X/Win ME/Win 2000/
Driver Win 2003/Win NT/Win XP/Win Vista/Win 7/Win 8,
compatible with EPSON and SAMSUNG
Print Command ESC/POS print commands set
Receipt 128K bytes
Buffer User-Defined 128K bytes
NV Flash 256K bytes
Interface
Multi I/O Interface
I/O Interface
(Serial +Ethernet +USB)
Cash Drawer DC 24V/1A, 6-Wire RJ-11
Notification
Indicator Audio and LED Indicators
Auto Cutter Partial
Paper End Notice Yes
Over-Heat Halt-on Protection Yes
Others
24VDC/2.5A
Power Input
(External Adapter: 100~240VAC 50/60Hz)
Color Black / White
Compliance FCC / CE / WEEE / RoHS
Weight 1200g ( without cable )
Dimension (mm) 174(L) x 144(W) x 124(H)
Operating Temperature 0°C~45°C
Operating Humidity 10% ~ 80% RH, non-condensing
Storage Temperature -10°C~ 60°C
Storage Humidity 10% ~ 90% RH non-condensing

Product Overview

Side
Front Rear
TOP Bottom
Contents
Printer Unit Power Adaptor *Power Cord
**Printer Cable Paper Roll Paper Roll
Holder
Paper Width Quick Installation Utility CD
Guide
* Power Cord is selectable depending on the types of electrical plug.
** Printer cable is selectable depending on the interface required
(RS-232, USB, RJ-45 or Parallel).
Please refer to the nearest local representatives for further information.

Installing your Printer

Power Adapter
Power Cord
RS-232 USB
RS-232 RJ-11 Power
USB
Cash
Drawer

Installing the Paper Roll

Paper Roll
and
Paper Roll Holder
Printer Cable
HOST PC
Printer
Ethernet (RJ-45)
RJ-11 Power RJ-45 RJ-11 Power
Cash Cash
Drawer Drawer
Paper Roll
Paper Roll
Holder
Paper Width
Guide
