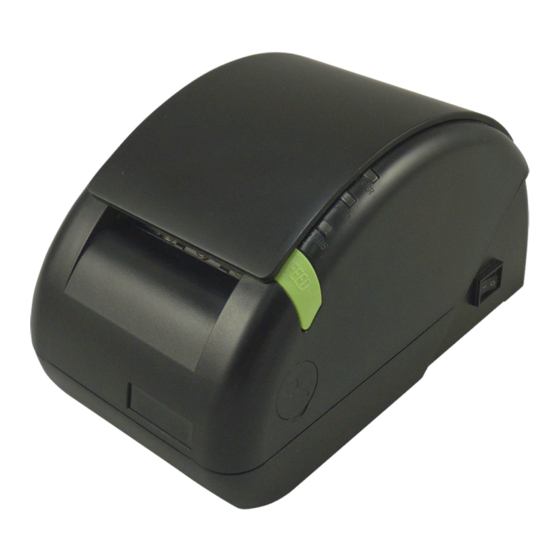

- Page 1 Mini Thermal Receipt Printer User Manual Please keep this manual in a safe place for future reference.
-
Page 3: Table Of Contents
Index A. IMPORTANT SAFETY NOTIFICATION ....1 B. PRODUCT OVERVIEW ......... 3 Main Features ..............3 Packing ................4 Specification ..............5 Part Description .............. 7 I/O Ports ............... 11 C. INSTALLING YOUR PRINTER ......12 Connecting Your Printer ..........12 Install/Replace the Paper Roll........ -
Page 4: Important Safety Notification
A. Important Safety Notification Read the instruction manual carefully before use. Save the manual in the near location for further reference. Use only parts or accessories, especially power adapter, recommended by the manufacturer; unapproved parts may be hazardous and cause injures to the product or human. - Page 5 Important Safety Notification Do not expose the product to rain or moisture, such as a bathtub, a washbowl, a kitchen sink, a laundry tub, and a swimming pool. Do not expose the machine under direct sunlight, and keep it away from any heat source. ...
-
Page 6: Product Overview
B. Product Overview Main Features Compact and Stylish Design Cost-effective for various printing applications Halt-on protect function for over heat (60°C) Interface: serial, USB, Cash drawer connection port (RJ-11) Compatible with ESC/POS print commands set ... -
Page 7: Packing
Packing Printer Unit Power Adaptor *Power Cord Quick **Printer Cable Installation Paper Roll Guide * Power Cord is selectable depending on the types of electrical plug. ** Printer cable is selectable depending on the interface required. Please refer to the nearest local representatives for further information. -
Page 8: Specification
Specification Model PRP-058K General Print Method Thermal line printing Print Speed 90 mm/sec Print Life 150Km ANK Character: Font A: (ASCII 12 x 24dots Mode) Print Font B: 9 x 17dots Font (Graphic Simplified/Traditional Chinese: Font) 24 x 24dots Print Resolution... - Page 9 Interface D-Sub 9-pin female connector, Serial 9600 bps ~ 115200 bps 1 x USB +12VDC/1A, 6-Wire RJ-11 Cash Drawer Socket Others +12VDC /3A (with External Power Input Adapter 110VAC/220VAC, 50/60Hz) Color Black Compliance FCC / CE / WEEE / RoHS Weight 778.6 g ( without cable ) Dimension (mm)
-
Page 10: Part Description
Part Description Product Views Top View Bottom View Front View Right View Rear View (Serial/USB) Left View - 7 -... - Page 11 Control Buttons & Indicators Control Buttons Paper Feed: This function is to advance the paper. Press the key and the paper advances by a single line. Press and hold the key for over 3 seconds and the paper advances by multiple lines. Cover Release Button: Push the button to the right to open the printer cover.
- Page 12 Cover Release Button Power Switch Paper Feed Button Maintenance Cover - 9 -...
- Page 13 Indicator Status Paper Power Status Status Description Indicator Out of paper Paper * The Error Indicator is lit as well Power Power Off Power On Printer Error (Out of paper, Printer Status head over heat, or paper cutter error) - 10 -...
-
Page 14: I/O Ports
I/O Ports I/O Ports Power RJ-11 RS-232 USB Rear View - 11 -... -
Page 15: Installing Your Printer
C. Installing your Printer Connecting Your Printer Please check the printer and the supplied accessories before Installation. It’s recommended to read the entire instruction manual prior to the installation. Power Adaptor Printer Cable Power Host PC Cord Printer Place the printer on the designate location. Detach the I/O Port Bracket. -
Page 16: Install/Replace The Paper Roll
Install/Replace the Paper Roll Press the Cover Release Button to open the Cover. Roll out and install the Paper Roll with Holder into the Printer. (with the edges of the paper roll holder onto the holder slots) Paper Roll Cutting Edge Cover Release Button... - Page 17 Replace the Cover and tear off the odd paper using the cutting edge. - 14 -...
-
Page 18: Installing The Driver Of The Printer
Installing the Driver of the Printer Before installing the driver of your printer, make sure the printer is properly connected to the host PC. To install the driver of the printer: Before installing the driver of your printer, make sure the printer is properly connected to the host PC. - Page 19 Click “Next” to continue. - 16 -...
- Page 20 Select the Operating System. (For example: select “Windows XP” for Windows XP version). Click “Next” to continue. - 17 -...
- Page 21 Printer Configuration This menu allows user to configure the printer according to the model number. Please refer to the steps below to complete the configuration. - 18 -...
- Page 22 Select Module Number: Select Printer Model Number - 19 -...
- Page 23 Default Printer Setting: To set the printer as the default printer, click the checkbox to confirm. Click “Next” to continue. - 20 -...
- Page 24 Printer Interface Setting: Select the communication interface (COM port or USB) Click “Install” to complete the installation. - 21 -...
- Page 25 Configuration Completed. Click “Finish” to exit the menu. It’ recommended restarting the computer after installation is completed. - 22 -...
- Page 26 Port Setting: Remember to access the properties of your printer (Start>>Printers and Faxes>>) and double-click the icon to enter. Make sure the port of printer is correctly configured. - 23 -...
- Page 27 Access sub menu “Ports”, and click to select the correct port for your printer. Click “OK” to exit. - 24 -...
-
Page 28: Appendix
D. Appendix Self Test This function allows user to perform self-test and print out the settings of the printer unit: Turn off the printer. Press and hold the Paper Feed Button. Turn on the Power Switch of the printer. The Indicators would blink and then Release the Paper Feed Button. -
Page 29: Dip Switch Configuration
DIP Switch Configuration To change the setting of the printer manually: Turn off the printer. Loosen the securing screw of the Protective Cover. Remove the Protective Cover. Adjust the switches to configure the printer. Securing Screw Protective Cover - 26 -... - Page 30 DIP Switch Setting Function DIP Switch Function Paper Cutter SW-1 Audio Alarm (Beeper) SW-2 Print Density Dark Light SW-3 Two-byte Character Code SW-4 Black Mark SW-5 Reserved SW-6 Baud Rate Setting (DIP-7, DIP-8) SW-7 SW-8 Baud Rate 38400 115200 9600 19200 - 27 -...
-
Page 31: Paper Jam Elimination
Paper Jam Elimination When printer cutter jammed and the top cover cannot be opened, you can eliminate the jammed paper by re-initiating the printer: Turn off the power switch. Restart the printer. The cutter will return to normal status and you can open the top cover to remove the jammed paper from the cutter. - Page 32 If the printer fail to return to the normal status and top cover cannot be opened: Pull out the Maintenance Cover. Use a cross screw driver to adjust the cutter position. Keep adjust the cutter position until the cutter move forward with the jammed paper.
-
Page 33: Code
Code Page Setup Access the website www.fametech.com.tw download the utility files. Click the folder “SetCodePage” to access the software Double click the icon “Setup.EXE” to initial installation. Follow the instructions to install the utility. - 30 -... - Page 34 Code Page Setup Utility This utility can help user to setup the code page of the printer. Note: Before Setup It may need to re-configure the printer prior to the codepage setup (e.g.: DIP switch). It’s recommended to consult the technical personnel relating to the information about the code page and application.
- Page 35 Select Code Page To select the code page desired: Make sure to the DIP switch 4 of the printer is set ON (please refer to DIP Switch Configuration for further information). Go to the scroll menu and select the preset code page desired.
- Page 36 20190128...
