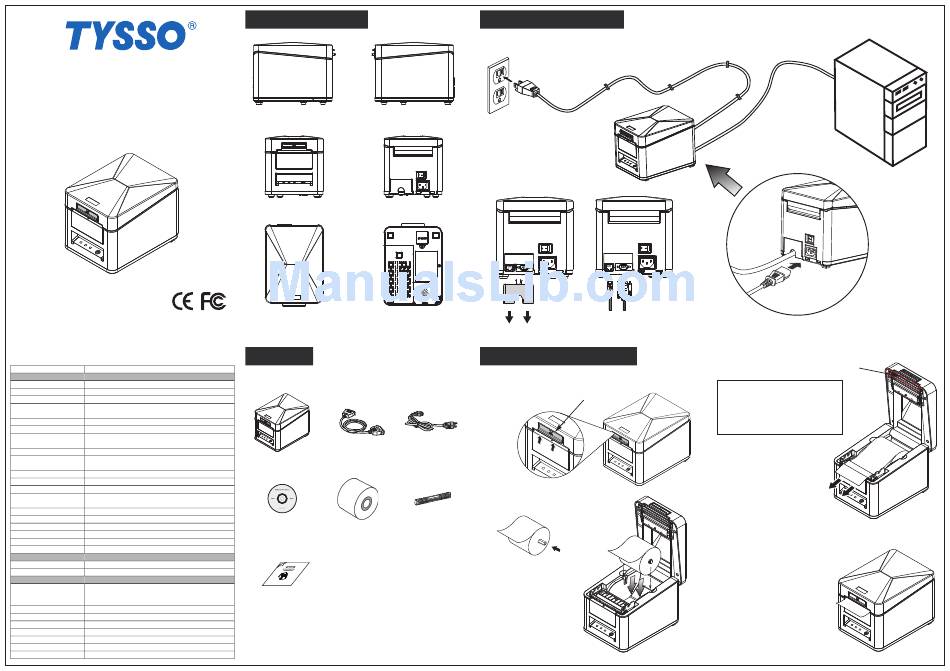

Tysso PRP-350 Quick Installation Manual

PRP-350

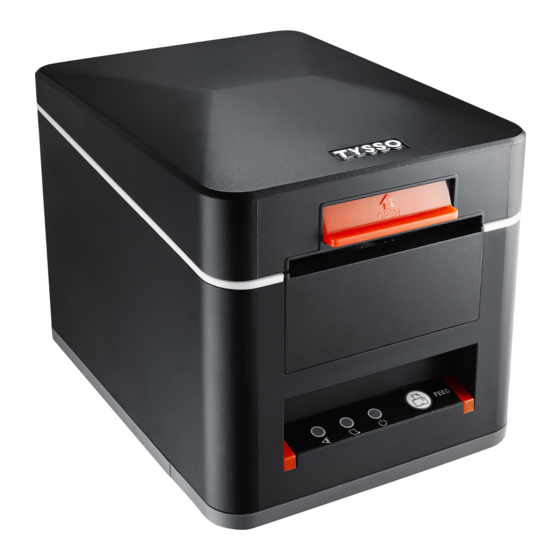

Kitchen Thermal Printer
Quick Installation Guide
Specification
Model PRP-350
General
Print Method Thermal line printing
Print Speed 250mm/sec
Print Life 150 Km
ANK Font
Print Font (ASCII)
Font A: 12 x 24 dots, Font B: 9 x 17 dots
Print Font (Graphic ) Chinese character: 24 x 24 dots
Print Resolution 576 dots/line or 512 dots/line
International Font, Big 5 Chinese, GB Chinese,
Print Font Character Support
Japanese, Korean selectable
Character Per Line 48 (Font A) / 42(Font B)
UPC-A, UPC-E, JAN-13/EAN-13, JAN-8/EAN-8, CODE 39, ITF,
Barcode Support
CODABAR, CODE 93, CODE 128, QR CODE
Effective Print Width 72mm
Paper Width 79.5mm± 0.5mm
Paper Thickness 0.06~0.08mm
Win 2000/ Win 2003/ Win XP/Win Vista/Win 7, Win 8,
Driver
compatible with EPSON and SAMSUNG, OPOS Driver support
Print Command Compatible with ESC/POS commands set
Auto Cutter Partial
LED Indicator 3 and 2 Auxiliary Paper Indicator
Audio Indicator 83 dB , with print job notification
Paper End Detection Yes
Over-Heat Halt-on Protection Yes
Interface
Serial 1 x DB-9 Serial Port
Ethernet 1 x RJ-45
Others
+24VDC/2.5A
Power Input (with External Adapter 100~240VAC 50/60Hz),
embedded in the body
Color Black
Compliance FCC / CE / WEEE / RoHS
Weight 1300 g ( with power adapter)
Dimension (mm) 190.5 (L) x 140 (W) x 145.0 (H)
Operating Temperature 5°C~45°C
Operating Humidity 10% ~ 80% RH non-condensing
Storage Temperature -10°C~ 50°C
Product Overview
Left Right
Front Rear
TOP Bottom
Contents
Printer Unit **Printer Cable *Power Cord
Utility CD Paper Roll Paper Roll
Holder
Quick Installation
Guide
* Power Cord is selectable depending on the types of electrical plug.
** Printer cable is selectable depending on the interface required
(RS-232 or RJ-45)
*** RJ-45 cable is not supplied and need purchased separately.
Please refer to the nearest local representatives for further information.
Installing your Printer
Power Cord
Printer
I/O Port Cover
RJ-45 RS-232
Installing the Paper Roll
Cover Release Lever
Paper Roll
and
Paper Roll Holder
Printer Cable
HOST PC
Printer
Power Cord
Paper Cutter
Warning: Paper Cutter
Beware of the Paper Cutter while
installing or replacing the paper roll.
The sharp edge of Paper Cutter may
cause injury to operator
Pull out the paper
Printer Cover
Keep holding and slowly replace the
Print Cover; press it into position with
care.
Make sure the cover is firmly closed.
