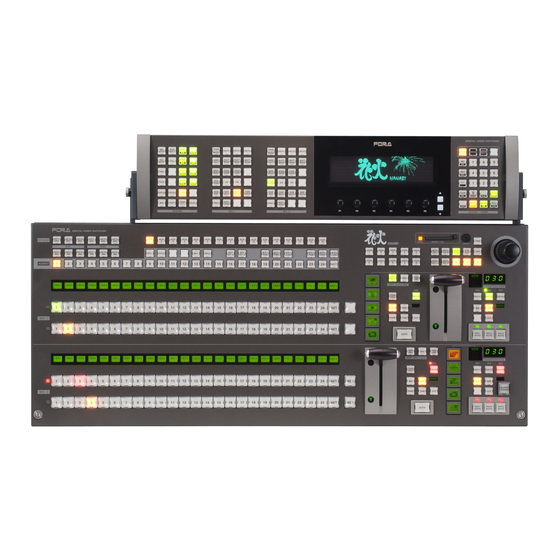

- Page 1 CONNECTOR INFORMATION HVS-3800HS HVS-3800S Digital Video Switcher Edition - Rev.2 - 2008/03/06)
- Page 2 9-pin D-sub connector (male) with inch security lock screws needed for user cable fabrication. Fan alarm Pins 1, 6 remain OPEN during normal operation. If fan failure occurs at HVS-3800HS/S side, pins 1, 6 will short and fan alarm signal output occurs. Power supply alarm Pins 2, 7 remain OPEN during normal operation.
- Page 3 EDITOR Connector Pin Assignment Table (9-pin D-sub, female) Pin No. Signal Name Description Frame ground Transmit data (-) Receive data (+) Signal ground Not used Signal ground Transmit data (+) Receive data (-) Frame ground Cable Connectors 9-pin D-sub connector (male) with inch security lock screws needed for user cable fabrication. ...
- Page 4 Pin1 to 10 signal assignments shown above are factory default settings. These can be changed in operational menus. See section 16-1-1. “GPI IN Free Assignments” for more details. Circuit Switch or Relay Open corrector External Device HVS-3800HS/S External Device HVS-3800HS/S...
- Page 5 GPI/TALLY OUT Connector Pin Assignment Table (25-pin D-sub female) Pin No. Description M/E1-BKGD TRANSITION (default setting) M/E1-KEY1 TRANSITION (default setting) M/E1-KEY2 TRANSITION (default setting) M/E1-KEY3 TRANSITION (default setting) M/E2-BKGD TRANSITION (default setting) M/E2-KEY1 TRANSITION (default setting) M/E2-KEY2 TRANSITION (default setting) M/E2-KEY3 TRANSITION (default setting) Not assigned (default setting) Not assigned (default setting)
- Page 6 HVS-3800HS/S External Device Circuit Max voltage: 40V Max load current: 100mA...
