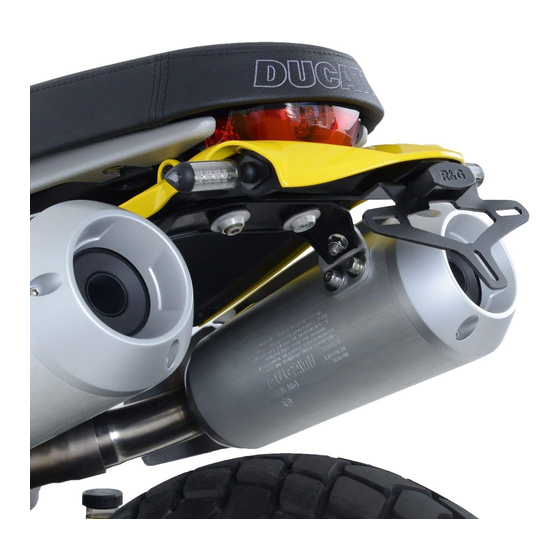

Licence plate bracket ducati scrambler 1100 2018
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Page 1 of 19
LP0256
FITTING INSTRUCTIONS FOR LP0256BK LICENCE PLATE BRACKET
DUCATI SCRAMBLER 1100 2018
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike.
T
(
).
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
FOR CLARITY OF INSTRUCTIONS ONLY
Please note that in cases where kits are packed with rubber washers holding the components onto the bolt – the
rubber washers should be thrown away!
Digital copies of these instructions are available to download from
www.rg-racing.com
R&G
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
www.rg-racing.com
Email:
info@rg-racing.com
