3. 3. 3. 3. Press Modify. Press

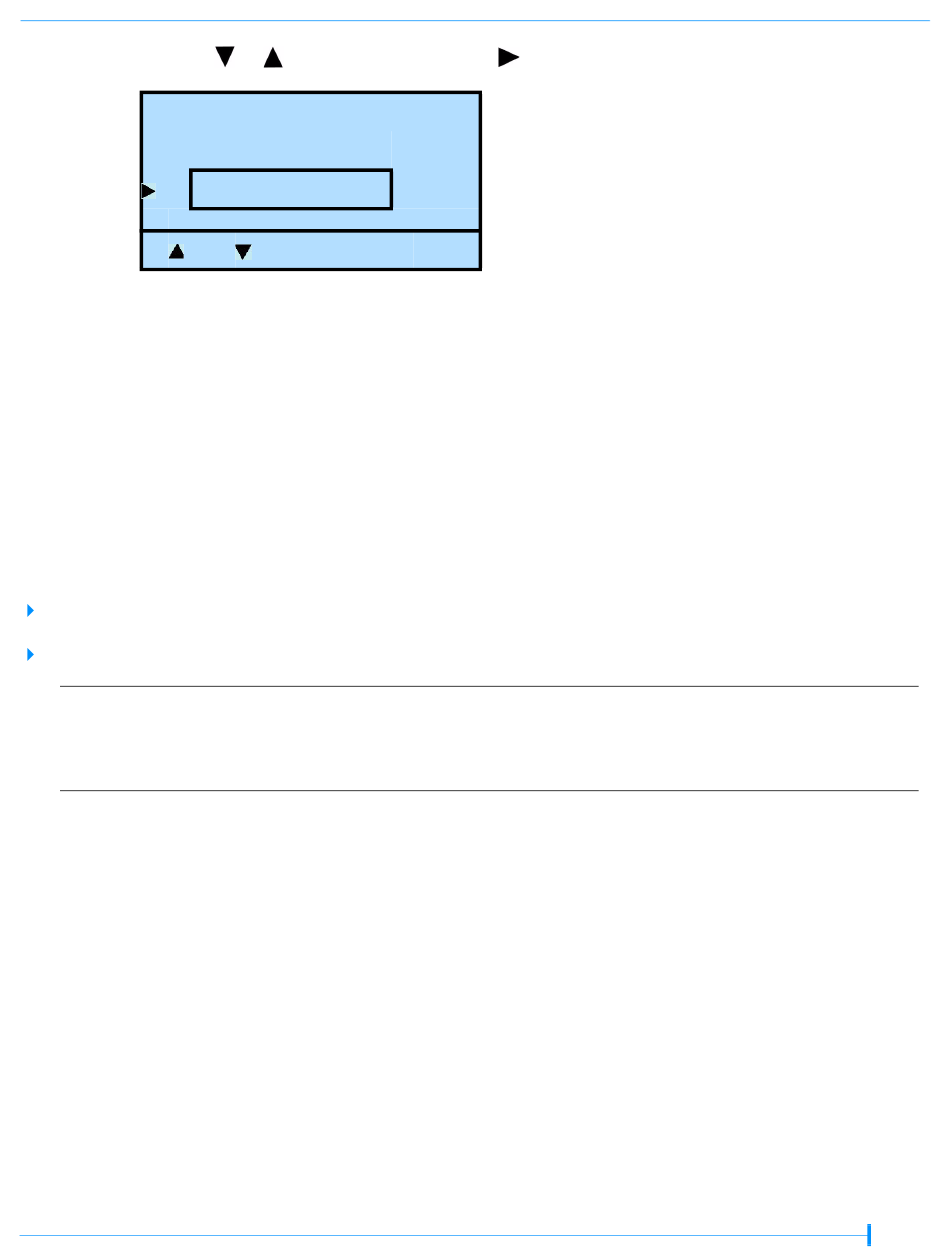

Select Drive 1
HP LTO HalfHigh
IBM LTO FullHigh
Note: This menu option requires input for all of the tape drives installed in the library. If you press "Back" before
configuring all the tape drives, the configuration selection will not change.
4. 4. 4. 4. Press OK.
5. 5. 5. 5. Repeat the process for each tape drive installed.
6. 6. 6. 6. Press Back (as needed) to return to the Home screen.
R O
ESUMING PERATION
1. 1. 1. 1. Power the library off (press the 0 on the back of the unit—after setting the new tape drive configuration).
2. 2. 2. 2. Connect the interface cables.
Connect the Fibre Channel cable.
or...
Connect the SCSI cable (or cables if you installed more than one tape drive) and a terminator (if needed).
! Important
Notes: You must install a terminator on the device at the physical end of the SCSI bus. If one of the tape drives in
the library terminates the SCSI bus, you must install the required terminator on one of the tape drive's
SCSI connectors. If there are additional devices on the SCSI bus, ensure that only the device at the
physical end of the bus is terminated.
The library communicates with the host through the SCSI interface of one of the tape drive via the
Automation Drive Interface (ADI) serial interface.
See the tape drive's Product Manual for tape drive information.
IBM —
Hewlett Packard —
See Automation/Drive Interface for ADI information:
3. 3. 3. 3. Reconnect the power cord and power on the library (press the
4. 4. 4. 4. Power on the host.
or until the selection arrow (
Select
LTO-2, LTO-3, and LTO-4 tape drives require an Ultra 3 or LVD 160 terminator to function
properly on the SCSI bus. An inadequate terminator will result in various SCSI bus issues,
including bus hangs and Read/Write failures. See the Product Manual at
www.tandbergdata.com
www.storage.ibm.com/tape/lto/oem/index.html
www1.hp.com/storage/tapestorage.html
) points to the desired configuration. Press Select.
Back
for detailed information.
www.T10.org
on the back of the unit).
