Chemical Feed System
For examples of components and chemical systems, please reference the Culligan Chemical Feed System Guid for the
HE Controller (P/N 01024913), the
com) or contact Culligan Application Engineering (call 1-877-216-6914 or email C&ISolutions@culligan.com).
Refer to GBE Programming for Commercial Softeners and Filters (except for HFxN) Manual (P/N 01027295) for program-
ming information. This manual can be obtained from your local dealer, C-Port (www.cport.culligan.com) under the
cal Service Tab
or on the Service Tech App.

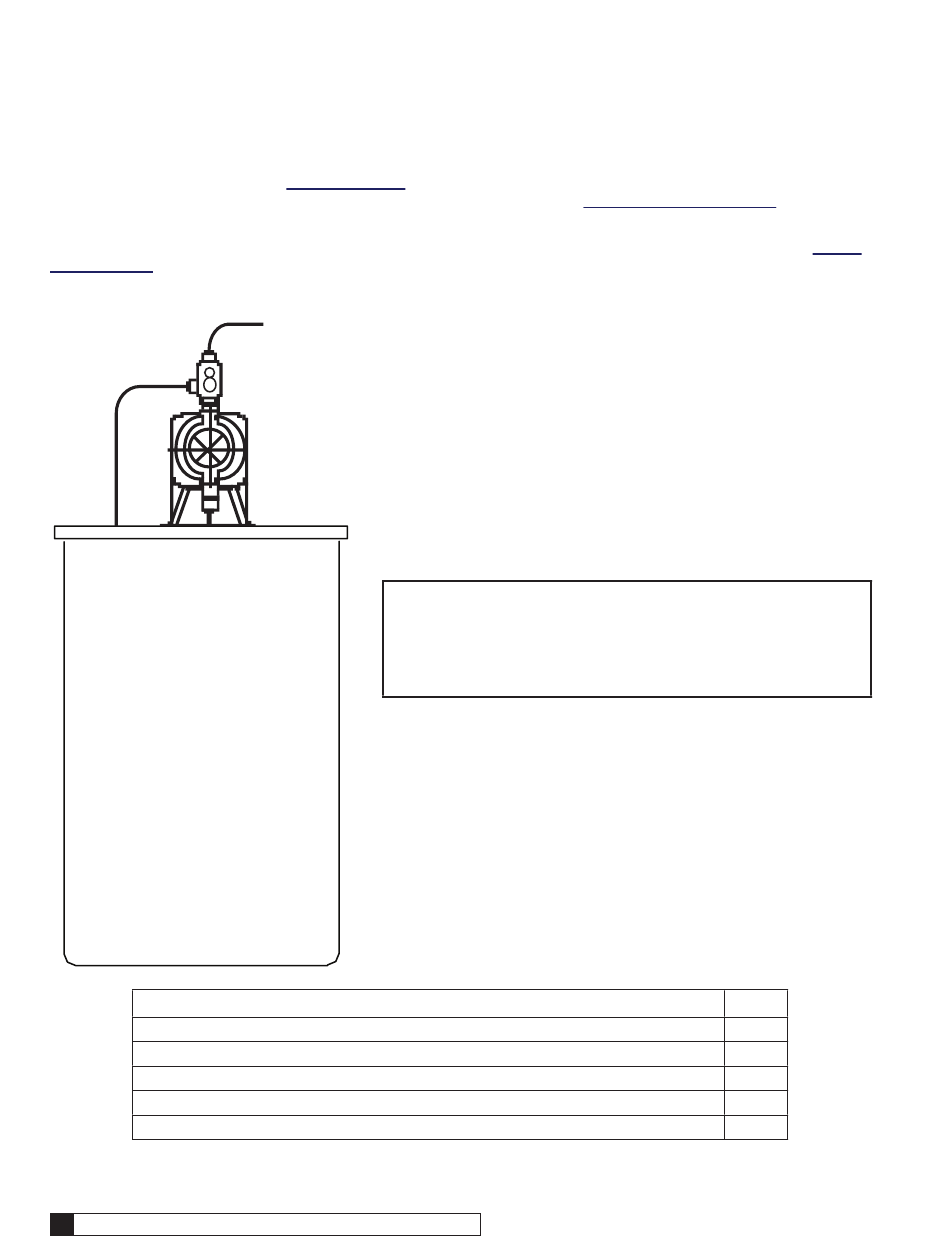

Example: Chemfeed System with Diaphragm Pump
Chemical Feed Tank
Pump, Chemfeed, 30 GPD, Diaphragm
Tank, Chemfeed Solution, 30 Gallon
Static Mixer, PVC, 1"
Circuit Board, Alarm Relay, GBE
Bushing, Strain Relief (25 Pack)
Culligan® High Efficiency 1.5 Water Filter
38
Feeder and Mixer
section of the Mechandise Catalog on C-Port (www.cport.culligan.
To Static Mixer to Unit
Chemical Feed Pump
NOTE
Description
When using a chemical feed system, the calculation for
continuous feed demand using chlorine is estimated as
follows:
mg/L Cl2 = (1 x mg/L Fe) + (3 x mg/L Mn) + (6 x mg/L H2S)
+ (8 x mg/L NH3)
Techni-
Qty
1
1
1
1
1
Cat. No. 01024514
