Summary of Contents for Culligan Iron-Cleer Plus

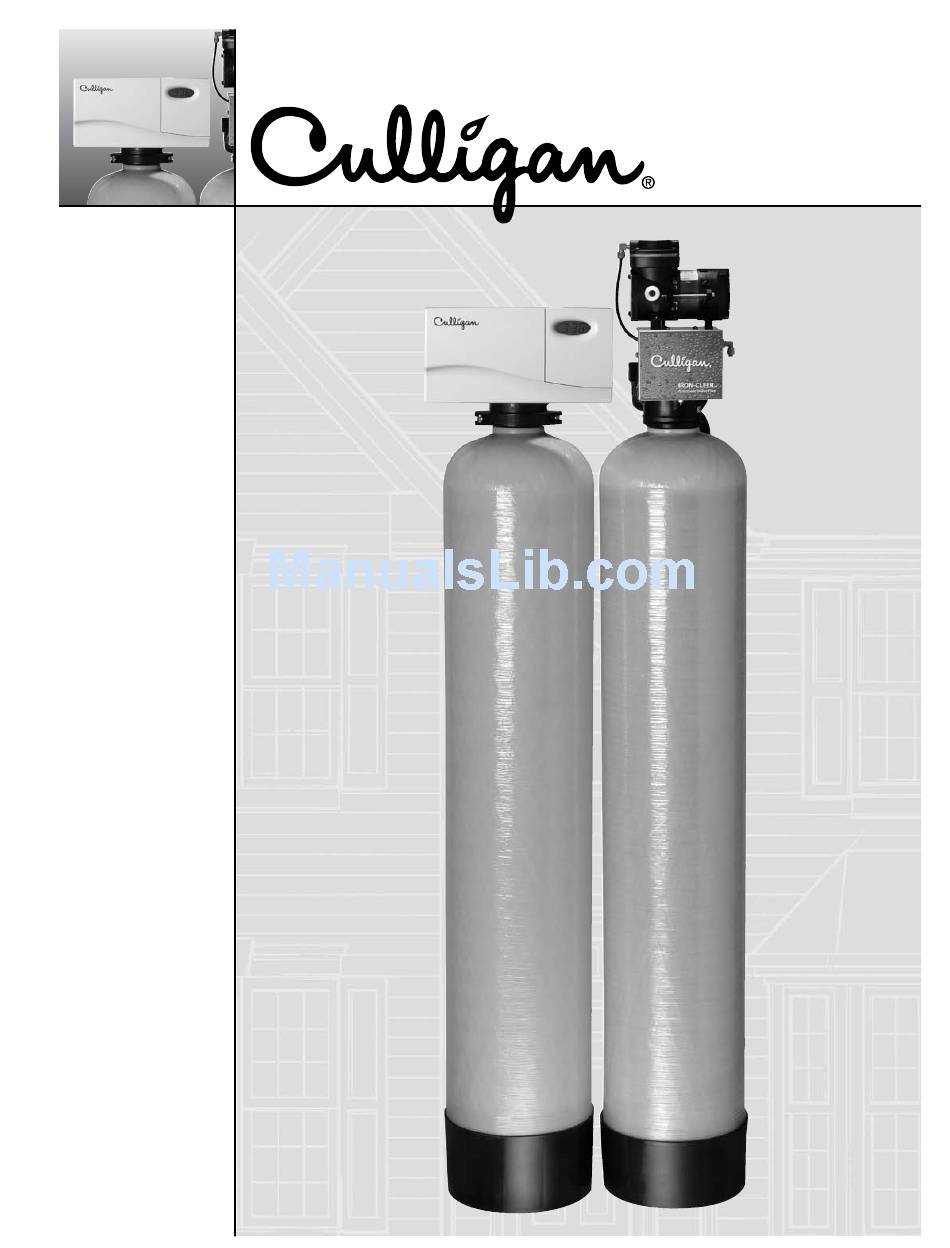

- Page 1 Culligan ® Iron-Cleer Plus ® Automatic Water Filter Owners Guide...
- Page 2 We promise that you’ll never want to be without it again. Congratulations, too, on selecting one of the “first family” of water filters in the prestigious Culligan Iron-Cleer. With Culligan’s many years of knowledge and experience in water treatment, you can be confident that the model you selected has been designed and engineered to provide years of service with a minimum of care and attention.
-
Page 3: Table Of Contents
Specifications ..........1 Introduction . - Page 4 This page intentionally left blank.
-
Page 5: Specifications
Culligan Iron Cleer Plus Filters ® ® Control Valve Timer Overall Conditioner Height Media Tank Dimensions (D x H) Filter Media Type Underbedding G-50 Cullsan U Capacity Freeboard Max. Clear Water (Soluble) Iron Max. Hydrogen Sulfide Minimum Alkalinity Service Flow @ Pressure Drop (Clean Bed) - Page 6 Introduction Operation Step 1. Aeration Operation Service Cycle In the service cycle, raw water enters the inlet port of the aeration tank and is directed through the inlet diffuser. The oxidation process begins when the water passes through the inlet diffuser and cascades through a head of air.
-
Page 7: Introduction
Shuttle Valve Operation In the service position, water pressure holds the shuttle valve piston in the closed position, trapping the airhead in the aeration tank and closes the air recharge inlet port and drain port. During air recharge cycle, air pressure is greater than the water pressure and forces the shuttle valve piston in the open piston. -
Page 8: Operating Conditions
Operating The concentration limits listed below reflect the maximum individual limit that each contaminant was tested for separately without any interference of other contaminants in the influent water. Conditions In reality, however, we know that these contaminants may be present in combination which may limit the filter’s ability to remove these contaminants in higher concentrations. -
Page 9: Familiarization
If you live in an area where power outages occur with a regular frequency, a battery backup option is available for ensuring that the time of day is properly maintained. Contact your Culligan Dealer for more information. - Page 10 If you live in an area where power outages occur with a regular frequency, a battery backup option is available for ensuring that the time of day is properly maintained. Contact your Culligan Dealer for more information. Display Program Key Regeneration Information...
-
Page 11: Programming
The Culligan AccuSoft Plus circuit board controls all ® ® of the filter functions. These settings are programmed at the time of installation. The following is a list of all the microprocessor functions, in the event that any of the settings need to be adjusted. - Page 12 Programming • Time of Regeneration - This setting is used to program the time at which a regeneration is to occur in the delay mode, or in (cont.) immediate mode with time clock backup on. The display will first show “tor” for two seconds. After “tor”...
- Page 13 • Filter Media Life (Change Media) - This setting is used in Filter Mode ONLY with flow meter attached. It enables or disables an alarm code (“CHANGE MEDIA”) that indicates the end of life for the filter media. The display will show “LIFE” in the left most characters and toggle between “Y”...
-
Page 14: Statistic Functions
Statistic The statistical functions are reached by pressing the “Information” key. Repetitive presses of the “Information” key will cycle through the standard statistics mode until cycled back to time of day Functions display. Once either of the Information menus is entered the information shown for each display is outlined below: •... -
Page 15: Bypass Valve
If you are going away on vacation and want to save salt by not having the unit recharge while you’re away. Bypass Valve In the back of Culligan water conditioners is a push-button Cul-Flo-Valv simply turn the blue knob clockwise. To return to soft water service, reverse the procedure - turn the blue knob counter-clockwise. -
Page 16: When And How To Bypass Your Water Filter
When and Aeration Tank Bypass Valve How to Bypass Your Water Filter (cont.) Aeration Tank – Bypass Valve Operation Normal Operation “Treated” Water Supply Water Exits Enters Diagnostic Mode Supply Water Supply Water Enters Exits Bypass Operation Supply Water Supply Water Exits Enters Shut-Off Mode... -
Page 17: Things To Check Before You Call For Service
(outside tap) to see if you have any water pressure. If you have water pressure, check the bypass valve. If it is in the Service position, put it into the bypass and call your Culligan dealer for service. -
Page 18: Preventative Maintenance
Recommended The Culligan Iron Cleer water filter has been designed to provide a good, consistent service life. Because of the nature of problem water, we recommend that the local Culligan dealer provide regular Preventative maintenance/service contracts for the proper operation of your systems. The water filter service... -
Page 19: Troubleshooting Guide
G. Raw water 1. Internal control valve leak. bleeding through filter. Solution 1. Call your Culligan dealer for service. 2. Check for minimum specified flow and pressure requirements of filter system. 3. Call your Culligan dealer for service. - Page 20 1. Improper installation not sealing. location. 2. Foreign material preventing check valve. 3. Worn or faulty check valve. 3. Call your Culligan dealer A. Reduced pressure 1. Service flow demand is in distribution system. greater than water supply available from well pump system.
- Page 21 (check plug, breaker, fuse, etc.) 2. Faulty circuit board. 2. Replace circuit board.. 3. Faulty drive motor. 3. Call your Culligan dealer for service. 4. Foreign material lodged in 4. Call your Culligan dealer piston. for service. 1. Low pH condition of the 1.
-
Page 22: Performance Data Sheet
Performance Indicator: If water flow decreases or a noticeable odor returns, the filter should be reconditioned. If conditions do not improve, contact your local Culligan Man. He can determine if your filter requires servicing. Regeneration Frequency: Regeneration frequency will vary depending upon water conditions. -
Page 23: Records And Data
Important Data on Your Water Filter It is advisable to have the salesperson or installer fill in the information below for your future reference. If this has not been done, please ask for it, as it is necessary if you contact your dealer. Identification Model Name Control Model No. -
Page 24: Warranty
If a part described above is found defective within the specified period, you should notify your inde- pendently operated Culligan dealer and arrange a time during normal business hours for the dealer to inspect the water conditioner on your premises. Any part found defective within the terms of this warranty will be repaired or replaced by the dealer. - Page 25 We’re here to provide you with fast, dependable service, making sure any problems you have are taken care of. The Culligan Man has been around for over seventy years, delivering dependable service all along. That’s why people say “Hey, Culligan Man!”...
