Culligan Smart Controller HE DF 12 Installation, Operation, And Service Instructions With Parts Lists page 26

Reattaching Electrical Enclosure Cover to Control Valve
1. If compartment plate was never removed, skip to step 4. Align the compartment plate over the gear motor onto
the control valve frame. Ensure that the gasket around the gear motor on the compartment plate is positioned
correctly to prevent leaks. Screw the compartment plate back onto the control valve frame.
2. Pull the position sensor cable back through the gray rubber bushing.
3. Reconnect the gear motor harness, position sensor harness, and any accessory harnesses to the GBE board.
4. Place the enclosure onto the control valve, aligning the circuit board edge with the slots on the control valve
frame and the screw on the enclosure with the hole on the cover.
5. Connect the 24 V power cord to the two 24 V terminals on the transformer.
NOTE Refer to the GBE Programming for Commercial Softeners and Filters, except HF xN Manual (P/N
01027295) for programming information. This manual can be obtained from your local dealer, on C-Port
(www.cport.culligan.com) under the
Culligan® High Efficiency 1.5 Water Filter
22
Make sure to align slots on the frame
with the edge of the circuit board in the
controller enclosure.

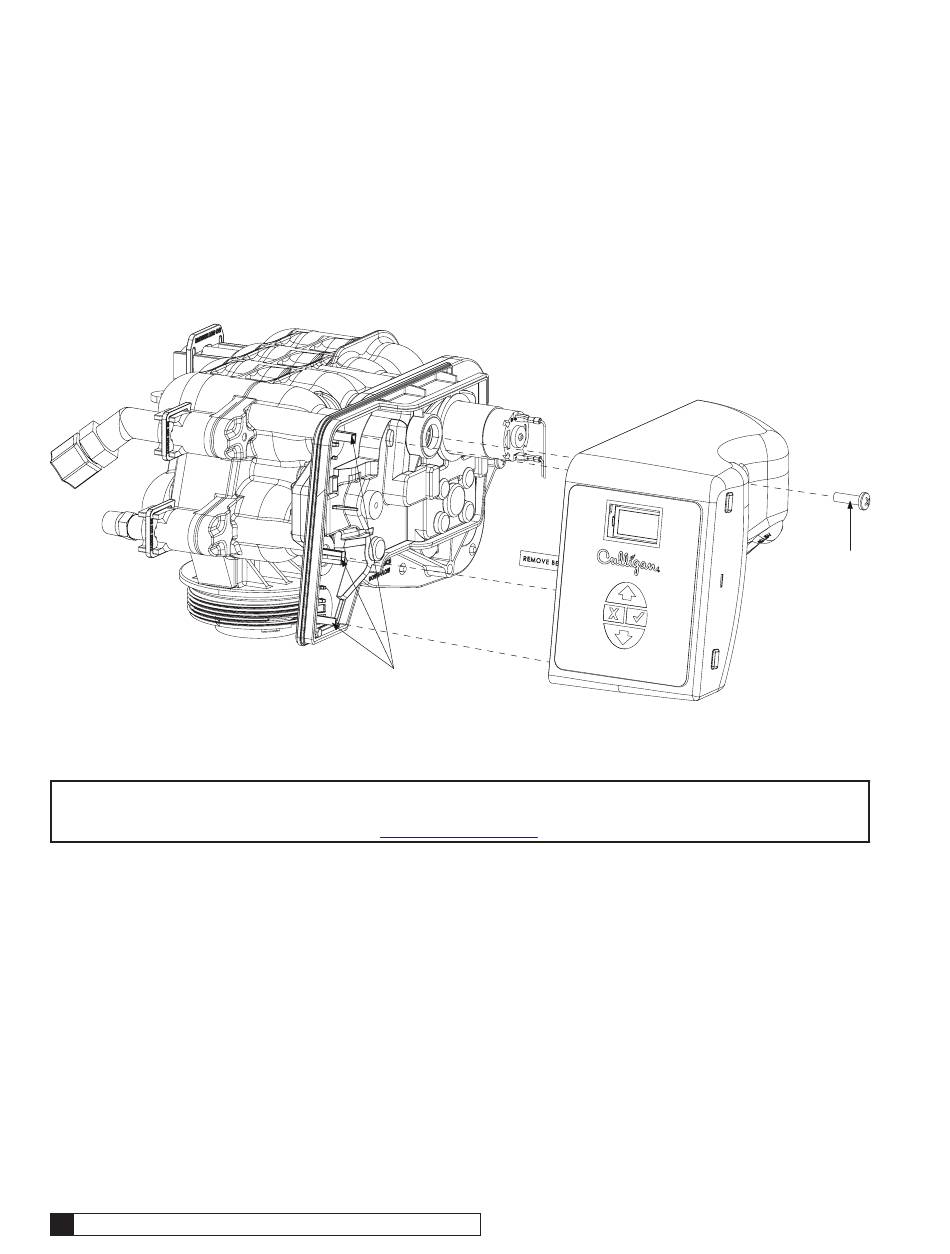

Figure 26. Attaching enclosure cover to control valve.
Technical Service Tab or on the Service Tech App.
22
Insert electrical
enclosure screw
through hole into
holder on the
control valve
Cat. No. 01024514
