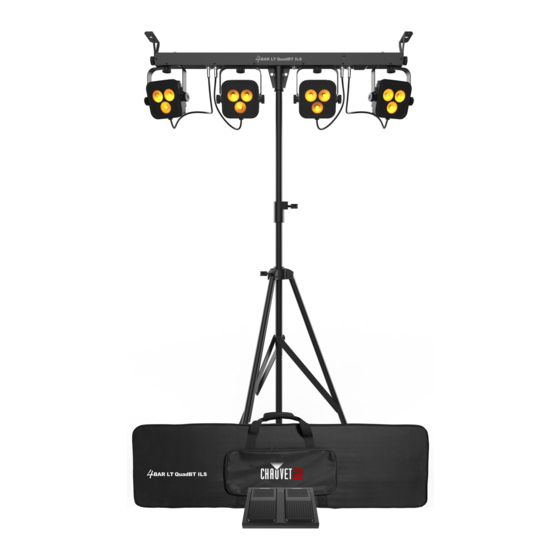

Chauvet DJ 4BAR LT QuadBT ILS User Manual
Hide thumbs
Also See for 4BAR LT QuadBT ILS:
- Quick reference manual (33 pages) ,
- Quick reference manual (9 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Chauvet DJ 4BAR LT QuadBT ILS
Summary of Contents for Chauvet DJ 4BAR LT QuadBT ILS
- Page 1 User Manual...
- Page 2 Edition Notes The 4BAR LT QuadBT ILS User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the 4BAR LT QuadBT ILS as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, 4BAR, and ILS are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
IRC-6 Infrared Remote Control ..............Bluetooth Control ..................Master/Slave Mode ..................Wired Master/Slave Mode .................. D-Fi USB Master/Slave Mode ................ILS Mode....................... 5. Maintenance..................Product Maintenance ..................6. Technical Specifications..............Contact Us....................Warranty & Returns..................4BAR LT QuadBT ILS User Manual Rev. 1... -
Page 4: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. 4BAR LT QuadBT ILS User Manual Rev. 1... -
Page 5: Safety Notes
This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and the user. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 4BAR LT QuadBT ILS User Manual Rev. 1... -
Page 6: Introduction
WARNING! DO NOT plug anything other than a D-Fi USB into the USB type B port. Doing so may cause damage to the product. Product Dimensions 10.8 in 274.3 mm 36.1 in 3.7 in 918.1 mm 95 mm 4BAR LT QuadBT ILS User Manual Rev. 1... -
Page 7: Setup
3. Setup AC Power The 4BAR LT QuadBT ILS has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The 4BAR LT QuadBT ILS may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming. -
Page 9: Operation
DMX_Primer_rev05_WO.pdf. Personality and Starting Address The 4BAR LT QuadBT ILS uses up to 19 DMX channels in the 19Ch DMX mode, which defines the highest configurable/recommended address to 494 When selecting a starting DMX address, always consider the number of DMX channels the DMX mode uses. -
Page 10: D-Fi Usb Connectivity
Operation D-Fi USB Connectivity The 4BAR LT QuadBT ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D-Fi receiving/transmitting channel, then plug it into the D-Fi USB port. - Page 11 000 255 0–100% – – Amber 4 000 255 0–100% – – Dimmer 000 255 0–100% 000 015 No function – – Strobe 016 255 Strobe, slow to fast 4BAR LT QuadBT ILS User Manual Rev. 1...
-
Page 12: Standalone Configuration
3. Use <UP> or <DOWN> to increase or decrease the program speed, from S 1–100. 4. Press <ENTER>. Standalone Dimmer To set the output intensity of the 4BAR LT QuadBT ILS in standalone mode, do the following: 1. Press <MENU> repeatedly until d-- shows on the display. 2. Press <ENTER>. -
Page 13: Wireless Footswitch Operation
3. Use <UP> or <DOWN> to select Foot, and press <ENTER>. 4. Use <UP> or <DOWN> to select from PubL (enables control by any 4BAR LT QuadBT ILS footswitch), Link (links to a single footswitch), or oFF (disables footswitch control), and press <ENTER>. -
Page 14: Irc-6 Infrared Remote Control
Operation IRC-6 Infrared Remote Control The 4BAR LT QuadBT ILS is compatible with the IRC-6 infrared remote control from Chauvet. To enable or disable IRC-6 functionality, do the following: 1. Press <MENU> repeatedly until SEt shows on the display. 2. Press <ENTER>. -
Page 15: Bluetooth Control
The Master/Slave mode allows a single 4BAR LT QuadBT ILS product (the “master”) to control the actions of one or more 4BAR LT QuadBT ILS products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in either standalone mode or with the IRC-6, while the slave products will be set to operate in slave mode. -
Page 16: D-Fi Usb Master/Slave Mode
D-Fi USB Master/Slave Mode The D-Fi USB allows a single 4BAR LT QuadBT ILS product (the “master”) to control the actions of one or more 4BAR LT QuadBT ILS products (the “slaves”) without the need of a DMX controller or DMX cables. -
Page 17: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. 4BAR LT QuadBT ILS User Manual Rev. 1... -
Page 18: Technical Specifications
3-pin XLR 4, 6, or 19 Bluetooth Bluetooth Version Operating Frequency Max. Unobstructed Distance 2.4 GHz 150 ft (25.7 m) Ordering Product Name Item Code UPC Number 4BAR LT QuadBT ILS 10032007 781462223557 4BAR LT QuadBT ILS User Manual Rev. 1... -
Page 19: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. 4BAR LT QuadBT ILS User Manual Rev. 1...
