Summary of Contents for Chauvet DJ 4BAR Hex ILS

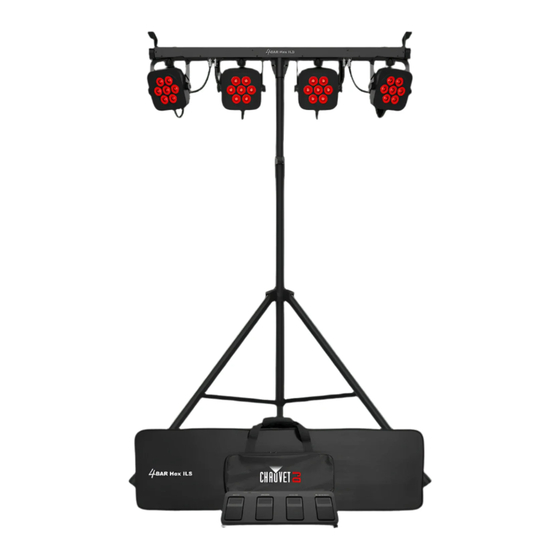

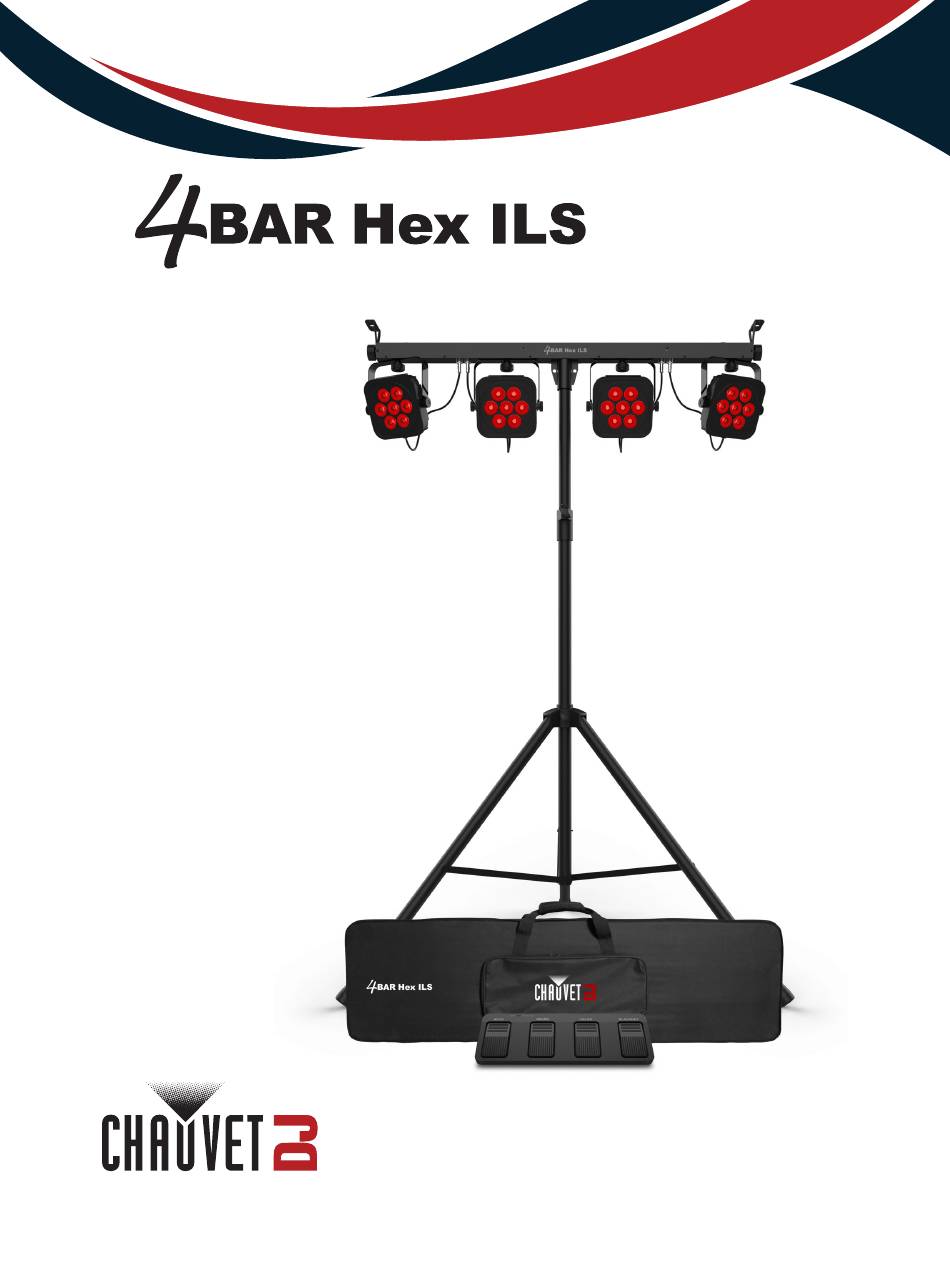

- Page 1 User Manual...
- Page 2 Edition Notes The 4BAR Hex ILS User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the 4BAR Hex ILS as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and 4BAR are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Master/Slave Mode ..................D-Fi USB Master/Slave Mode ............... ILS Mode....................... Wireless Footswitch Operation ..............Footswitch Battery....................IRC-6 Infrared Remote Control ..............5. Maintenance..................Product Maintenance ..................6. Technical Specifications..............Contact Us....................Warranty & Returns..................4BAR Hex ILS User Manual Rev. 1... -
Page 4: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. 4BAR Hex ILS User Manual Rev. 1... -
Page 5: Safety Notes
♦ Set this product on a flammable surface. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. 4BAR Hex ILS User Manual Rev. 1... -
Page 6: Introduction
16 Pedal #3 - Static colors 17 Pedal #4 - Blackout 18 Battery cover WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product. 4BAR Hex ILS User Manual Rev. 1... -
Page 7: Product Dimensions
Introduction Product Dimensions Front View 46.7 in 1186 mm 43.3 in 1100 mm 12.8 in 326 mm Side View 4.7 in 121 mm 4BAR Hex ILS User Manual Rev. 1... -
Page 8: Setup
3. Setup AC Power The 4BAR Hex ILS has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 9: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The 4BAR Hex ILS may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 10: Operation
Press to scroll down the list of options or to find a lower value <ENTER> Press to activate a menu option or a selected value Menu Map Refer to the 4BAR Hex ILS product page on www.chauvetdj.com for the latest menu map. Mode... -
Page 11: Dmx Linking
If the starting address is set too high, access to some of the product’s channels could be restricted. The 4BAR Hex ILS uses up to 27 DMX channels in a 27-Ch DMX mode, which defines the highest configurable address to 486. -
Page 12: D-Fi Usb Connectivity
Operation D-Fi USB Connectivity The 4BAR Hex ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D-Fi receiving/transmitting channel, plug it into the D-Fi USB port then set the product’s DMX Personality and DMX Address. -
Page 13: Dmx Channel Assignments And Values
000 255 0–100% – – UV 4 000 255 0–100% – – Dimmer 000 255 0–100% 000 015 No function – – Strobe 016 255 Strobe, slow to fast 4BAR Hex ILS User Manual Rev. 1... -
Page 14: Standalone Configuration
DMX controller. Products in standalone mode may transmit DMX signals that could interfere with the DMX signals from the controller. Static Colors To run the 4BAR Hex ILS in Preset Color mode, follow the instructions below: 1. Press <MENU> repeatedly until C-- shows on the display. 2. Press <ENTER>. -
Page 15: Master/Slave Mode
D-Fi USB Master/Slave Mode The D-Fi USB allows a single 4BAR Hex ILS product (the “master”) to control the actions of one or more 4BAR Hex ILS products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in standalone mode, while the slave (receiver) products will be set to operate in DMX mode. -
Page 16: Wireless Footswitch Operation
• The 4BAR Hex ILS footswitch will not work on DMX or Bluetooth mode. • The user must turn on the IR setting from the 4BAR Hex ILS and navigate to Auto mode before using the footswitch. Footswitch Battery The wireless footswitch uses a 9-volt battery located under the battery cover on the bottom of the product, which can be replaced when necessary. -
Page 17: Irc-6 Infrared Remote Control
Operation IRC-6 Infrared Remote Control The 4BAR Hex ILS can be operated with the Chauvet IRC-6. Button Function <BLACK OUT> Press to turn off all lights until the button is pressed again Press then use <+> or <–> to increase or decrease strobe speed <STROBE>... -
Page 18: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. 4BAR Hex ILS User Manual Rev. 1... -
Page 19: Technical Specifications
Maximum External Temperature Cooling System 104°F (40°C) Convection I/O Connector Channel Range Optional Controllers 3-pin XLR 6, 8, or 27 IRC-6, D-Fi USB Ordering Product Name Item Code UPC Number 4BAR Hex ILS 10032217 781462225650 4BAR Hex ILS User Manual Rev. 1... -
Page 20: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. 4BAR Hex ILS User Manual Rev. 1...
