- Page 1 BAR ILS User Manual...
-
Page 2: Table Of Contents
Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... Unpacking Instructions.................. Claims ........................Text Conventions ..................Symbols ......................Disclaimer ..................... Intellectual Property ..................Safety Notes....................2. Introduction ................Product Overview..................Product Dimensions ..................3. Setup ................... AC Power ...................... -
Page 3: Before You Begin

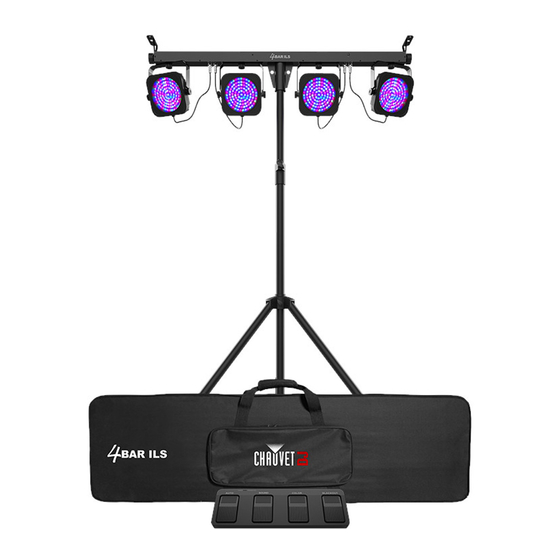

Before You Begin 1. Before You Begin What Is Included • 4BAR ILS • Tripod • Power cord • Tripod carry bag • Carrying bag • Quick Reference Guide • Wireless footswitch Unpacking Instructions Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition. -
Page 4: Safety Notes
Before You Begin Safety Notes • Always connect the product to a grounded circuit to avoid the risk of electrocution. • Always disconnect the product from the power source before cleaning or replacing the fuse. • Avoid direct eye exposure to the light source while the product is on. •... -
Page 5: Introduction
Introduction 2. Introduction Product Overview 4BAR USB - Back Panel D-Fi USB Power port Microphone LED display Infrared Fuse Menu sensor holder buttons in/out Footswitch indicators Power switch DIP switch 9-Volt battery cover WARNING! DO NOT plug anything other than a D-Fi USB into the USB Port. Doing so may cause damage to the product. -
Page 6: Product Dimensions
Introduction Product Dimensions Front View 47.4 in 1205 mm 11 in 284.5 mm Side View 2 in 50 mm Page 4 of 19 4BAR ILS User Manual Rev. 1... -
Page 7: Setup
Setup 3. Setup AC Power The 4BAR ILS has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Mounting
Setup Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The 4BAR ILS may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 9: Operation
Operation 4. Operation Control Panel Operation To access the control panel functions, use the four buttons located underneath the display. Please refer to Product Overview to see the button locations on the control panel. Button Function <MENU> Press to find an operation mode or to back out of the current menu option <UP>... -
Page 10: D-Fi Usb Connectivity
The 4BAR ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the DIP switch D-Fi receiving/transmitting channel, plug it into the USB port then set the product’s DMX Personality and DMX Address. Further instructions for connecting this product for D-Fi USB operation are in the User Manual. -
Page 11: Dmx Channel Assignments And Values
Operation DMX Channel Assignments and Values 15Ch Function Value Percent/Setting 000 009 No function 010 029 Auto program 1 030 049 Auto program 2 050 069 Auto program 3 070 089 Auto program 4 090 109 Auto program 5 110 ... -
Page 12: Configuration (Standalone)
Operation Configuration (Standalone) Set the product in one of the standalone modes to control without a DMX controller. • Connect the product to a suitable power outlet. Never connect a product that is operating in any standalone mode to a DMX string connected to a DMX controller. -
Page 13: Wireless Footswitch
Operation Wireless Footswitch The included wireless footswitch provides quick access to preset colors, color-change programs, and sound-activation through the 4BAR ILS microphone. To use the footswitch: 1. Connect the 4BAR ILS to power. Turn the wireless footswitch on. 2. Press <MENU> on the 4BAR ILS until SEt shows on the display, and press <ENTER>. -
Page 14: Irc-6 Infrared Remote Control
Operation IRC-6 Infrared Remote Control The 4BAR ILS is compatible with the IRC-6 infrared remote control from Chauvet. To activate IR mode, follow the instructions below: 1. Press <MENU> repeatedly until SEt shows on the display. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to select ir. 4. -
Page 15: Master/Slave Mode
Operation Master/Slave Mode The Master/Slave mode allows a single 4BAR ILS product (the “master”) to control the actions of one or more 4BAR ILS products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in either standalone mode or with the footswitch, while the slave products will be set to operate in slave mode. -
Page 16: Master/Slave Expansion Mode
Operation Master/Slave Expansion Mode The Master/Slave Expansion mode allows a single 4BAR ILS product (the “master”) to control the actions of one or more Tri-color LED USB products (the “slaves”), such as a COREpar USB, SlimPAR USB, or Freedom Par, without the need of a DMX controller, with the use of the optional D-Fi USB (not included). The 4BAR ILS will be set to operate in either standalone mode or with the footswitch, while the slave products will be set to operate in slave mode. -
Page 17: Ils Mode
Operation ILS Mode ILS (Integrated Lighting System) provides 4 modes that synchronize with the GigBAR MOVE+ILS: Modes 1 and 3 synchronize with side 1 of the GigBAR MOVE+ILS, whereas modes 2 and 4 synchronize with side 2 of the GigBAR MOVE+ILS. When linked, effects will sync with the most similar effect on the selected side of the GigBAR MOVE+ILS: Kinta effects will sync with one of the kintas, moving heads will sync with one of the moving heads, and wash effects will sync with one of the pars. -
Page 18: Maintenance
Maintenance 5. Maintenance Product Maintenance Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency. -
Page 19: Technical Specifications
Technical Specifications 6. Technical Specifications Dimensions and Weight Length Width Height Weight 4BAR ILS 43.3 in (1,100 mm) 2 in (50 mm) 10.5 in (267 mm) 11 lb (5 kg) Wireless 12.4 in (315 mm) 5.2 in (132 mm) 1.5 in (38 mm) 1.2 lb (0.6 kg) Footswitch Note: Dimensions in inches rounded to the nearest decimal digit. -
Page 20: Returns
Returns Returns In case you need to get support or return a product: • If you are located in the U.S., contact Chauvet World Headquarters. • If you are located in the U.K. or Ireland, contact Chauvet Europe Ltd. • If you are located in Benelux, contact Chauvet Europe BVBA. -
Page 21: Contact Us
Contact Us Contact Us General Information Technical Support World Headquarters Address: 5200 NW 108th Ave. Voice: (844) 393-7575 Sunrise, FL 33351 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com Fax: (954) 929-5560 Toll Free: (800) 762-1084 Website: www.chauvetdj.com U.K. Address: Unit 1C Email: UKtech@chauvetlighting.eu Brookhill Road Industrial Estate...
