1

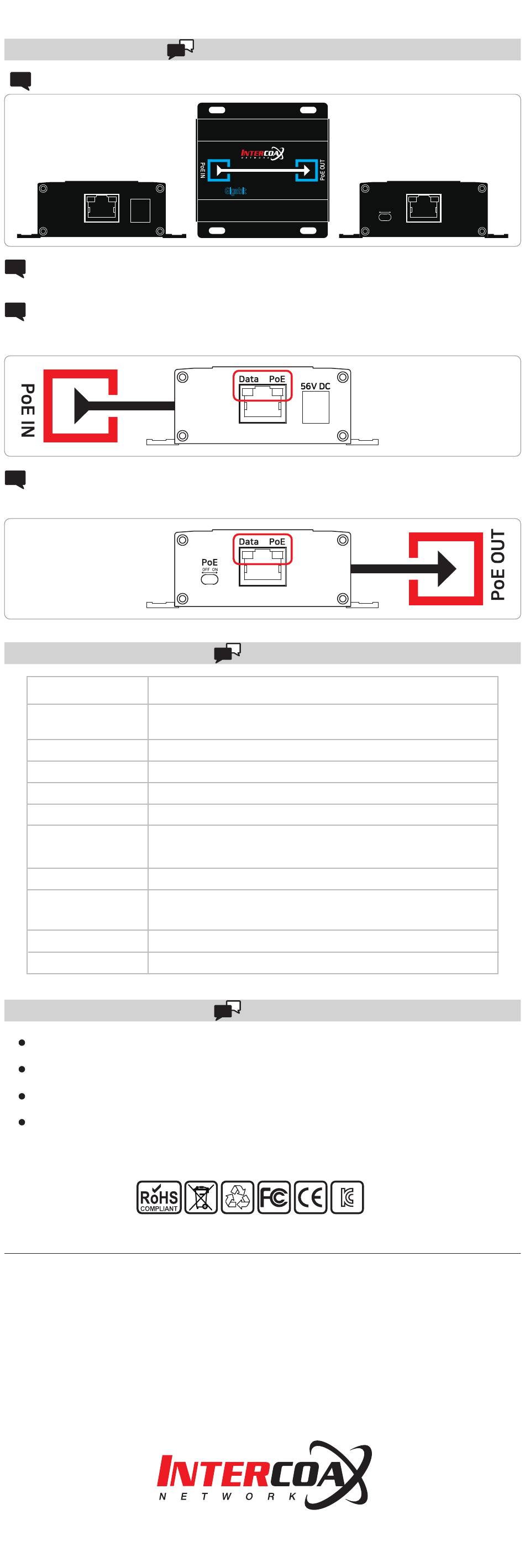

Product Image
Data
PoE
2
EPR-1001 is powered by power supply (up to 57VDC) or PSE (Power Sourcing
Equipment) such as PoE Switch or Injector.
3
Connect UTP cable from PSE to "PoE IN" port.
Data/PoE LED indicates working status.
"PoE OUT" port is connected to PD(Power Device) such as IP camera.
4
When connecting Non-PoE devices, please turn off the PoE On/Off switch.
Model
Data & Power
Input/Output
UTP
Power Input
PoE
Bandwidth
Trans. Distance
LED Indication
Temperature /
Humidity
Weight
Dimension
This device has passed the quality control and product inspection.
Please install and use according to the installation guide.
The warranty period for this product is 24 months from the date of puchase.
Any damages or breakage from user's abuse, accident, modification
or natural disasters will not be covered manufacturer's warranty
Installation Guide
56V DC
PoE (IEEE802.3af/at - Class 4) or DC48~57VDC
Working Temp.: 0 ~ 60°C / Storage Temp. : -20 ~ 85°C
Please visit below website for more detailed information.
Manufacturer : INTERCOAX CO.,LTD
TEL : 031-365-3133
FAX : 031-365-3135
E-mail : info@intercoax.com
www.intercoax.com
Gigabit
Ethernet & PoE Repeater
Specification
EPR-1001
RJ45
Cat5e or Better
IEEE 802.3at/af
10/100/1000Mbps
Max.130m (10/100/1000Mbps)
Max. 220m (Between EPR-1001s)
Green: Data, Yellow: PoE
Max. 95%
118g
82x83x28(mm)
Warranty
Data
PoE
PoE
OFF ON
