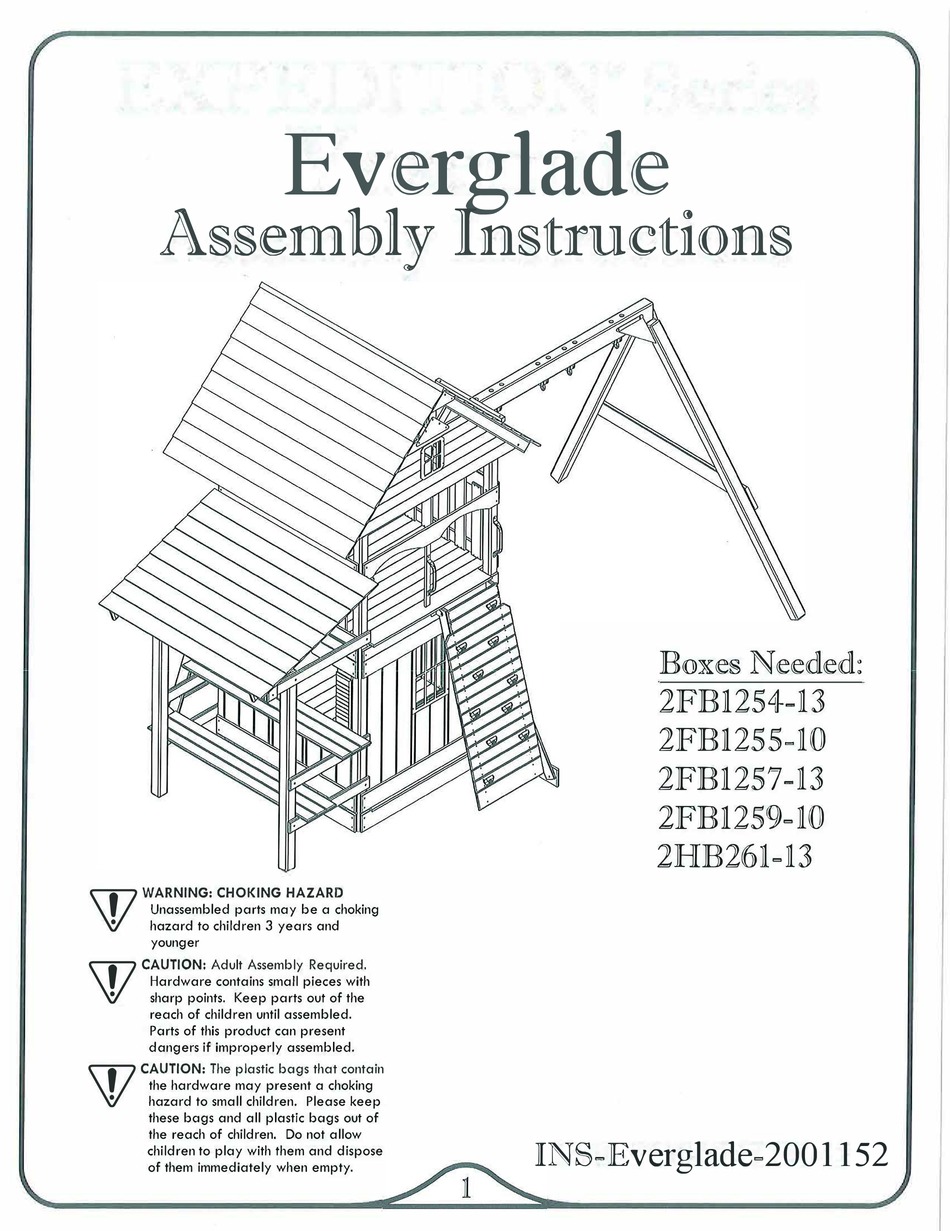

Assembly Ins1truc1tions
W
WARNING: CHOKING HAZARD
Unassembled ports may be a choking
hazard to children 3 years and
younger
W
CAUTION:
Adult Assembly Required.
Hardware contains small pieces with
sharp points. Keep ports out of the
reach of children until assembled.
Ports of this product con present
dangers if improperly assembled.
W
CAUTION:
The plastic bogs that contain
the hardware may present a choking
hazard to small children. Please keep
these bogs and all plastic bogs out of
the reach of children. Do not allow
children to ploy with them and dispose
of them immediately when empty.
Everglade
Boxes Needed:
2FBJ1254=Jl3
2FBJ1255=Jl0
2FBJ1257 =Jl3
2FBJ1259= Jl0
2HB261=Jl3
INS= Everglade=2001152

Advertisement

loading
Need help?

Need help?

Do you have a question about the Everglade and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Discovery Everglade

Summary of Contents for Backyard Discovery Everglade

  • Page 1 Please keep these bogs and all plastic bogs out of the reach of children. Do not allow INS= Everglade=2001152 children to ploy with them and dispose of them immediately when empty.

  • Page 7: Parts Identification

    Parts Identification Accessrnriies 1 - Placard - 6BP08 17 • Green L-Bracket - 4M032 2 - Rockwall Rocks (5 count) - 6PCR5 6 - Green Plastic Stakes - 6P085 2 - Hand Grips • 6P028 2 - Handrails -ladder 4M 1124-1 3 ·...
  • Page 31 AE - HAND GRIP GREEN 816 c/c - 4M1124-13 ADDENDUM ATTACH HAND GRIPS AS SHOWN. SCREW TAPPING 14x1...
  • Page 32 Single Beam Assembly Instructions WARNING: CHOKING HAZARD Unassembled parts may be a choking hazard to children 3 years and younger. CAUTION: Adult Assembly Required. Hardware contains small pieces with sharp points. Keep parts out of the reach of children until assembled. Parts of this product can present dangers if improperly assembled.

  • Page 33: Parts Identification

    Parts Identification Wood Components (NOT TO SCALE) A1 - 86x134x2997 SINGLE BEAM - 4L3259-13 3 3/8"x5 1/4"x118" (86x134x2997) SP1 - 86x86x2489 SINGLE BEAM LEG - 4L3260-13 3 3/8"x3 3/8"x98" (86x86x2489) G1 - 24x134x1905 SWING LEG SUPPORT - 4L3261-13 1"x5 1/4"x75" (24x134x1905) Parts Identification Hardware N - CARRIAGE BOLT (5/16"x6") - 6HCB6...
  • Page 34 Parts Identification Accessories (NOT TO SCALE) G - SWING HANGER - LARGE (DUCTILE) - 6HASH H - SINGLE BEAM CLAMP - 4M1037-13 R - BRACE - 5" ANGLED (GREEN) - 4M1077-08 J - SINGLE BEAM TOP PLATE CLAMP - 4M1038-06B (2) A - SWING SEAT ASSEMBLY (GREEN) - 2A1246-08 F - 2/0 CHAIN - 30"...
  • Page 35 SP1 - 86x86x2489 SINGLE BEAM LEG - 4L3260-13 3 3/8"x3 3/8"x98" (86x86x2489) H - SINGLE BEAM CLAMP - 4M1037-13 STEP 1 Carriage bolts go through the square holes in clamp 'H' and into pre-drilled holes in legs 'SP1'. FLAT WASHER Note orientation of hole in legs 'SP1'.
  • Page 36 A1 - 86x134x2997 SINGLE BEAM - 4L3259-13 3 3/8"x5 1/4"x118" (86x134x2997) G - SWING HANGER - LARGE (DUCTILE) - 6HASH R - BRACE - 5" ANGLED (GREEN) - 4M1077-08 STEP 2 SPLIT WASHER (5/16") HEX BOLT (5/16"x1 1/2") LOCKNUT (14) (5/16") HEX BOLT HEX BOLT (5/16"x6")
  • Page 37 J - SINGLE BEAM TOP PLATE CLAMP - 4M1038-06B STEP 4 CARRIAGE BOLT (5/16"x6") (2 PLCS) LOCKNUT (5/16") LAG SCREW (5/16"x2") FLAT (10) WASHER (5/16") CARRIAGE BOLT (5/16"x6") FLAT WASHER (5/16") LOCKNUT (5/16") (2 PLCS) (2 PLCS) STEP 5 Adjust legs 'SP1' to make sure top beam 'A1' is level. Once top beam is level, secure legs with lag screws and flat washers as shown.
  • Page 38 G1 - 24x134x1905 SWING LEG SUPPORT - 4L3261-13 1"x5 1/4"x75" (24x134x1905) STEP 6 Locate leg support 'G1' so that ends are flush with outside of legs 'SP1'. FLAT WASHER (5/16") LAG SCREW (5/16"x3") FLUSH LAG SCREW (5/16"x3") (4 PLCS) FLAT WASHER (5/16") (4 PLCS)

  • Page 39: Flat Washer

    STEP 7 Remove bolt from trapeze and loop one end of chain through bolt. Place bolt back through hole on trapeze and place flat washer and lock nut on end and tighten. TRAPEZE CHAIN (2 PLCS) TRAPEZE BOLT (2 PLCS) FLAT WASHER (2 PLCS) LOCK NUT...
  • Page 40 F - 2/0 CHAIN - 30" (GRN) - 4M1003 D - QUICK LINK (LONG) - 6H072 (1) W - PLASTIC TRAPEZE BAR (GREEN) - 6P053 (2) A - SWING SEAT ASSEMBLY (GREEN) - 2A1246-08 STEP 8 HANGER QUICK LINK (LONG) CHAIN NOTE: This completes the swing beam assembly with trapeze.
