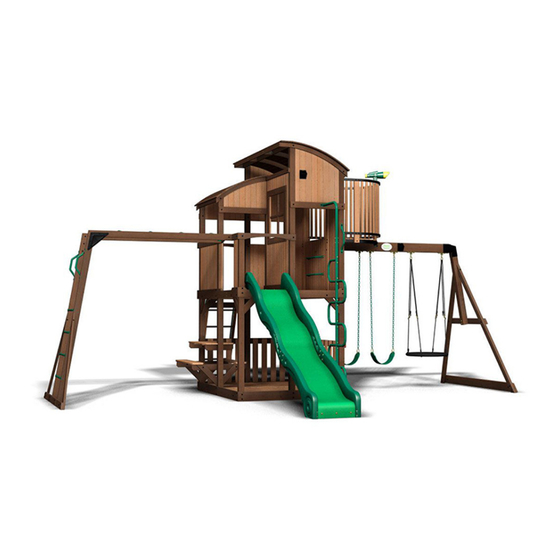

Backyard Discovery Skyfort Elite Owner's Manual & Assembly Instructions

Wooden swing set

Hide thumbs

100

101

102

103

104

page of 104

/ 104
Bookmarks

Quick Links

Download this manual

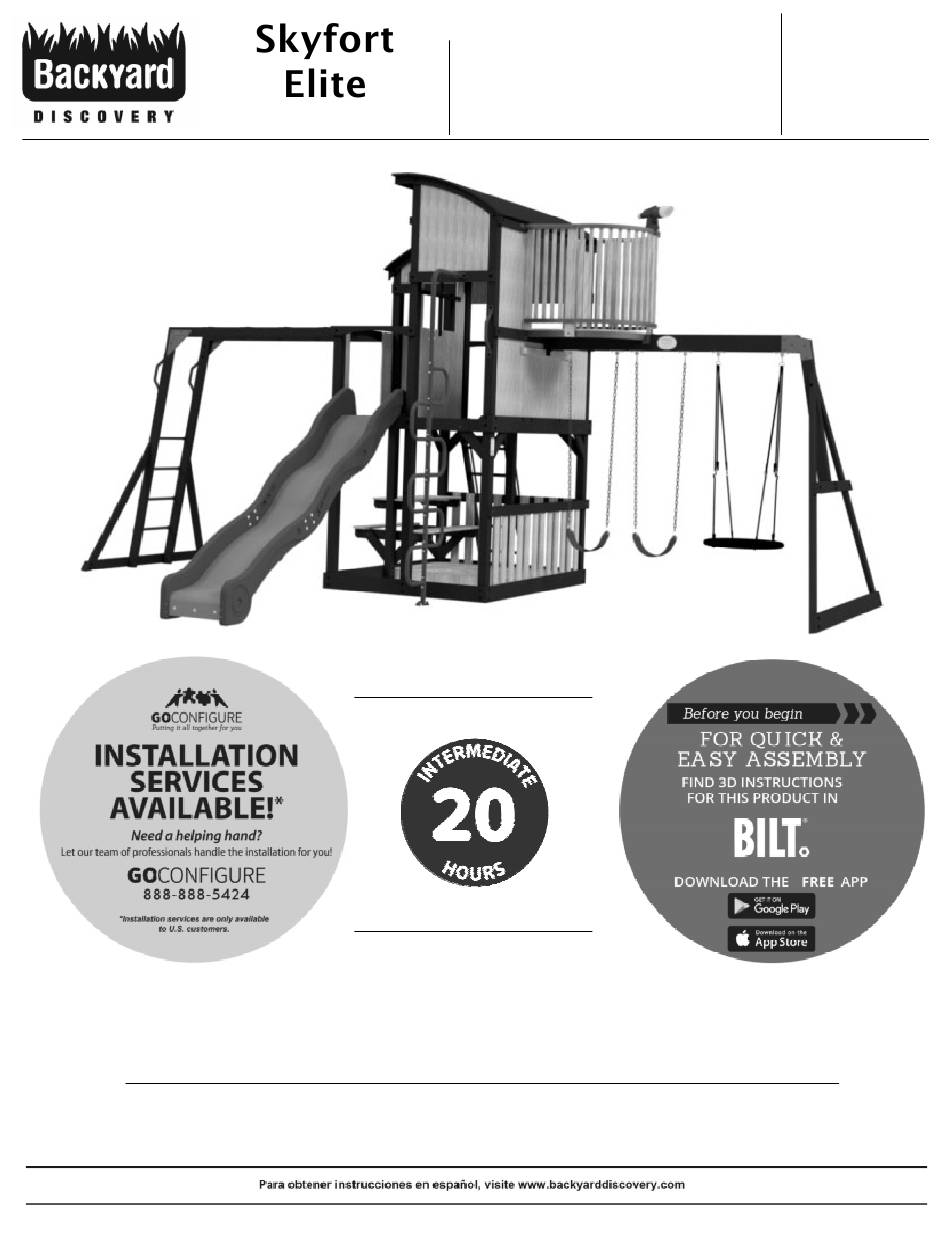

MANUFACTURED BY:

Wooden Swing Set

Backyard Discovery

3305 Airport Drive

Pittsburg, KS 66762

Owner's Manual & Assembly Instructions

800-856-4445

Model # 1801035

average 2 person assembly time

assembly time may vary based on skill level

For the most up to date assembly manual,

to register your set, or to order replacement parts please visit

www.backyarddiscovery.com

SAVE THIS ASSEMBLY MANUAL FOR FUTURE REFERENCE IN THE EVENT THAT

YOU NEED TO ORDER REPLACEMENT PARTS.

Made in China | INS-1801035-A-SKYFORT ELITE-ENG 9-15-20

Need help?

Do you have a question about the Skyfort Elite and is the answer not in the manual?

Questions and answers

Summary of Contents for Backyard Discovery Skyfort Elite

Page 1 For the most up to date assembly manual, to register your set, or to order replacement parts please visit www.backyarddiscovery.com SAVE THIS ASSEMBLY MANUAL FOR FUTURE REFERENCE IN THE EVENT THAT YOU NEED TO ORDER REPLACEMENT PARTS. Made in China | INS-1801035-A-SKYFORT ELITE-ENG 9-15-20...
Page 2 STOP PARE Missing A Part? CALL US BEFORE GOING BACK TO THE STORE! The store where you made your purchase does not stock parts for this item. If you have assembly questions or if you need parts, whether they are missing or damaged Call Toll-Free Help Line or visit www.swingsetsonline.com 1-800-856-4445 PLEASE READ THIS BEFORE STARTING ASSEMBLY...
Page 3 Dear Customer: Please read entire booklet completely before beginning the assembly process. Equipment is recommended for use by children 3 to 10 years of age. Structures are not intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Daycare, Preschool, Nursery School, Recreational Park, or any similar Commercial Application.
Page 4 Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height. Positioning Your Playcenter 1. The Playcenter is designed to be installed on a level surface by an Adult with an Adult helper. Place in a flat area of your yard to minimize ground preparation. 2.
Page 5 The following chart explains the fall height in feet from which a life threatening head injury would not be expected Critical Heights in feet (m) of Tested Materials Material Uncompressed Depth Compressed Depth 6" (152mm) 9" (228mm) 12" (304mm) to 9" (228mm) Wood Chips 7' (2.13m) 10' (3.05m)
Page 6 18. Verify that any suspended climbing ropes, chain, or cable are secured at both ends and that they cannot be looped back on it. 19. Instruct children not to attach items to the playground equipment that are not specifically designed for use with the equipment, such as, but not limited to, jump ropes, clothesline, pet leashes, cables and chain as they may cause a strangulation hazard.
Page 7 Third Party Assembly: Customer may, in their sole discretion, elect to use a third party person or service to assemble this product. Backyard Discovery assumes no responsibility or liability for any charge incurred by the Customer for any assembly services’.
Page 8 APPENDIX A Information on Playground Surfacing Materials: The following information is from the United States Consumer Product Safety Commission’s Information Sheet for playground surfacing material; also see the following website for additional information: www.cpsc.gov/cpscpub/pubs/323.html. SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY HANDBOOK X3.1 Select Protective Surfacing—One of the most important things you can do to reduce the likelihood of serious head injuries is to install shock-absorbing protective surfacing under and around your play equipment.
Page 9 5. How often should the playset be stained? Backyard Discovery recommends the playset be stained once each year. A water or oil based stain can be used at the customer’s discretion. 6. Why does it seem that my swing set is developing cracks? Wood is a natural material;...
Page 10 Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Level 24") (Square) (Open End Wrenches (Phillips Screw Driver) 1/2" & 9/16") (Tape Measure) (Claw Hammer) (Rubber Mallet - Optional)
Page 11 Basic Setup Dimensions Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. 35'-1 1/8" [10.7 m] 21'-11 1/4" [6.7 m] General Information: 6'-7"...
Page 12 Parts Identification Wood Components (NOT TO SCALE) A1 - SWING BEAM - W4L08130 3 3/8"x5 1/4"x89 1/2" (86x134x2274) B1 - UPRIGHT - W4L07772 3"x3"x89 1/8" (76x76x2263) B2 - UPRIGHT - W4L07773 3"x3"x58 3/8" (76x76x1484) B4 - UPRIGHT - W4L08086 3"x3"x58 3/8" (76x76x1484) B5 - UPRIGHT - W4L08089 3"x3"x58 3/8"...
Page 13 Parts Identification Wood Components (NOT TO SCALE) B11 - UPRIGHT - W4L08107 3"x3"x53 7/8" (76x76x1370) B12 - UPRIGHT - W4L08118 3"x3"x79 1/8" (76x76x2010) E1 - UPRIGHT - W4L08105 1 3/8"x3 3/8"x66 1/8" (36x86x1678) E2 - MONKEY BAR RAIL - W4L08126 1 3/8"x3 3/8"x77 1/8"...
Page 14 Parts Identification Wood Components (NOT TO SCALE) F3 - RAIL - W4L08148 1 3/8"x2 3/8"x35" (36x60x889) G1 - MID BOARD - W4L08072 1"x5 1/4"x80 1/4" (24x134x2038) G2 - MID BOARD - W4L08082 1"x5 1/4"x80 1/4" (24x134x2038) G3 - MID BOARD - W4L08080 1"x5 1/4"x62 1/2"...
Page 15 Parts Identification Wood Components (NOT TO SCALE) H1 - JOIST - W4L08074 1"x3 3/8"x25 5/8" (24x86x652) H2 - JOIST - W4L08075 1"x3 3/8"x60 1/2" (24x86x1536) H3 - FLOOR JOIST - W4L08076 1"x3 3/8"x60 1/2" (24x86x1536) H4 - SUPPORT BLOCK - W4L08077 1"x3 3/8"x3"...
Page 16 Parts Identification Wood Components (NOT TO SCALE) H11 - RAIL - W4L08101 1"x3 3/8"x80 1/4" (24x86x2038) H12 - RAIL - W4L08102 1"x3 3/8"x32 3/4" (24x86x831) H13 - RAIL - W4L08103 1"x3 3/8"x31 3/4" (24x86x807) H14 - RAIL - W4L08108 1"x3 3/8"x30 1/4" (24x86x767) H15 - ROOF RAIL - W4L08116 1"x3 3/8"x80 1/4"...
Page 17 Parts Identification Wood Components (NOT TO SCALE) H21 - RAIL - W4L08138 1"x3 3/8"x38 3/8" (24x86x976) H22 - MONKEY BAR BRACE - W4L08128 1"x3 3/8"x53 1/4" (24x86x1352) H23 - PICNIC TABLE BRACE - W4L07770 1"x3 3/8"x17 1/2" (24x86x444) H24 - MONKEY BAR GROUND BOARD - W4L08129 1"x3 3/8"x70 3/8"...
Page 18 Parts Identification Wood Components (NOT TO SCALE) K1 - GROUND BOARD - W4L08070 5/8"x5 1/4"x61 3/4" (16x134x1570) K2 - GROUND BOARD - W4L08071 5/8"x5 1/4"x80 1/4" (16x134x2038) K3 - GROUND BOARD - W4L08073 5/8"x5 1/4"x80 1/4" (16x134x2038) KE5 - END SHINGLE - W4L08232 5/8"x3 3/8"x86 7/8"...
Page 19 Parts Identification Wood Components (NOT TO SCALE) M4 - UPPER FLOOR BOARD - W4L08084 5/8"x3"x80 1/4" (16x76x2037) M5 - WINDOW FRAME - W4L08083 5/8"x3 3/8"x30 3/4" (16x86x781) M6 - UPPER FLOOR BOARD - W4L08087 5/8"x3 3/8"x80 1/4" (16x86x2037) M7 - PICKET - W4L08092 (20) 5/8"x3 3/8"x26 7/8"...
Page 20 Parts Identification Wood Components (NOT TO SCALE) M16 - PICKET - W4L08140 5/8"x3"x30" (16x77x763) M17 - PICKET - W4L08201 5/8"x2 5/8"x34 1/2" (16x67x877) M18 - PICKET - W4L08202 5/8"x3 3/8"x34 1/8" (16x86x866) M19 - PICKET - W4L08203 5/8"x3 3/8"x33 3/8" (16x86x847) M20 - PICKET - W4L08204 5/8"x3 3/8"x32 3/8"...
Page 21 Parts Identification Wood Components (NOT TO SCALE) M27 - PICKET - W4L08210 5/8"x3 3/8"x21 1/8" (16x86x537) M28 - PICKET - W4L08211 5/8"x3 3/8"x20 3/8" (16x86x518) M29 - PICKET - W4L08212 5/8"x3 3/8"x19 1/2" (16x86x494) M30 - PICKET - W4L08213 5/8"x3 3/8"x18 1/4" (16x86x464) M31 - PICKET - W4L08214 5/8"x3 3/8"x16 7/8"...
Page 22 Parts Identification Wood Components (NOT TO SCALE) M37 - FLOOR BOARD - W4L08220 5/8"x3 3/8"x33 1/8" (16x86x840) M38 - FLOOR BOARD - W4L08221 5/8"x3 3/8"x29" (16x86x736) M40 - FLOOR BOARD - W4L08223 5/8"x3 3/8"x36 3/8" (16x86x924) M41 - REAR SUPPORT - W4L08227 5/8"x3 3/8"x19 1/4"...
Page 23 Parts Identification Wood Components (NOT TO SCALE) O1 - PICKET - W4L08150 (26) 5/8"x1 3/8"x32 3/8" (16x34x821) SP1 - SWING BEAM SUPPORT - W4L08132 3 3/8"x3 3/8"x48 7/8" (86x86x1242) T1 - FLOOR SUPPORT - W4L08079 1"x1 3/8"x25 3/4" (24x34x653) T2 - WINDOW FRAME - W4L08136 15/16"x1 5/16"x27 15/16"...
Page 24 Parts Identification Wood Components (NOT TO SCALE) (3) FP4 - FLOOR PANEL - W2A02171 1 1/4"x17"x80 3/16" (32x432x2037) FP1 - FLOOR PANEL - W2A02172 1 1/4"x17"x38 9/16" (32x432x980) FP2 - FLOOR PANEL - W2A02203 1 1/4"x10 3/16"x38 9/16" (32x259x980) FP3 - FLOOR PANEL - W2A02204 1 1/4"x10 3/16"x38 9/16"...
Page 25 Parts Identification Hardware BOLT HEX 3/8x5-1/2 (13) H100654 LAG SCREW WH BOLT WH 5/16x3/4 5/16x3 H100222 H100029 BOLT WH 5/16x2 1/4 BOLT WH 5/16x1/2 (11) H100013 H100115 BOLT TPH 5/16x1-1/4 NUT BARREL TPH (18) (18) 5/16x1 WZ H100605 H100606 - T-30 TORX WRENCH - H100114 - T-40 TORX WRENCH - A100041 - T-30 TORX BIT - H100147 - T-40 TORX BIT - A100042...
Page 26 Parts Identification Hardware BOLT HEX 5/16x2-3/4 H100472 BOLT WH 5/16X6 BLK H100363 BOLT WH 5/16x4 1/4 BOLT WH 5/16x1/2 H100513 H100396 BOLT WH 5/16x3 3/4 BOLT WH 5/16x1 BLK (43) H100468 H100415 BOLT WH 5/16x1 1/4 BOLT WH 5/16x3-1/2 (24) H100459 H100503 BOLT WH 5/16x1 1/2...
Page 27 Parts Identification Hardware SCREW PFH 8x2 1/2 (41) H100090 LAG SCREW WH 5/16x1-1/2 BLK H100471 SCREW PFH 8x2 (24) H100111 SCREW PFH 8x1-3/4" (22) LAG SCREW WH H100089 (13) 1/4x2-1/2 BLK H100456 SCREW PFH 8x1-1/2" (187) H100086 LAG SCREW WH (26) 1/4x1-1/2 BLK SCREW PFH 8x1-1/4"...
Page 28 Parts Identification Hardware NUT BARREL WH 5/16x1 1/2 T-NUT 3/8 H100006 T-NUT 5/16 (13) (13) H100073 H100074 NUT BARREL WH 5/16x1-1/2 BLK H100193 T-NUT 1/4 BLK (17) T-NUT 5/16 BLK H100398 (113) H100379 NUT BARREL WH (23) 5/16x7/8 BLK H100192 WASHER FLAT 11x25 (13) FLANGE CUP...
Page 29 Parts Identification Hardware WASHER LOCK EXT WASHER LOCK EXT (24) 12x19 BLK (15) 8x19 H100199 H100030 WASHER LOCK INT WASHER LOCK EXT (13) 10x18 (135) 8x19 BLK H100107 H100198 WASHER LOCK INT WASHER FLAT 9x18 (17) 8.4x14.5 WZ H100610 H100474 WASHER LOCK EXT (13) 6x15 BLK...
Page 30 Parts Identification Accessories (NOT TO SCALE) BYD ID TAG (LARGE) AGES 3-10 TRIANGLE PLATE A100164 100° 5 HOLE QUICK LINK A4M00614 A100069 SWING SEAT GREEN 22" A6P00054 SLIDE BED 10' LIGHT GREEN A100035 "A" REVISION TAG A100314 (6) SWING HANGER - A4M00505...
Page 31 Parts Identification Accessories (NOT TO SCALE) SWING BEAM SWING BEAM EXTENSION EXTENSION BRACKET-LEFT BRACKET-RIGHT A4M00617 A4M00618 GROUND STAKE REBAR A4M00527 90° L-BRACKET - L BRACKET L BRACKET BLACK 2.5x38x50x55 32x51 A4M00555 A100340 A4M00710 METAL RUNG 559 GREEN A100045 GROUND STAKE A4M00766 CHAIN GREEN 57"...
Page 32 Parts Identification Accessories (NOT TO SCALE) HAND GRIP METAL GREEN 381 c/c A100118 (1) - UPPER LADDER SECTION - A4M00868 HAND GRIP GREEN 816 C/C A100134 L BRACKET 51x32x82x3.175 A4M00855 LADDER RUNG 578 GREEN A100324 (6) LADDER RUNG - A4M00867 LADDER FOOT A6P00190 CLIMBING TREE...
Page 33 Parts Identification Accessories (NOT TO SCALE) SLIDE RAIL 10' BOTTOM LEFT GREEN A100030 SLIDE RAIL 10' BOTTOM RIGHT GREEN A100031 SLIDE RAIL 10' TOP LEFT GREEN A100032 SLIDE RAIL 10' TOP RIGHT GREEN A100033...
Page 34 Parts Identification Accessories (NOT TO SCALE) SLIDE SUPPORT TUBE (1) TELESCOPE - A100034 A100104 (1) WEB SWING - A6P00253...
Page 35 Parts Identification Accessories (NOT TO SCALE) (2) ARCHED RAIL - A4M00873 SUPPORT BRACE A4M00928 (4) RAIL - A4M00875 (1) ARCHED FLOOR JOIST - A4M00874 (1) ARCHED FLOOR JOIST - A4M00901...
Page 36 M70 - SLIDE BED SUPPORT - W100935 DX - SLIDE BED 10' LIGHT GREEN - A100035 5/8"x3 3/8"x19 7/8" (16x86x505) 10 FOOT SLIDE ASSEMBLY STEP 1 BOLT WH 5/16x1/2 T-NUT 5/16 DX - SLIDE BED 10' LIGHT GREEN (SEE SLIDE ASSEMBLY INSTALLATION STEP FOR DECK MOUNTING HOLE DRILLING LOCATIONS).
Page 37 DS - SLIDE RAIL 10' BOTTOM RIGHT GREEN - A100031 TR - SLIDE RAIL 10' TOP RIGHT GREEN - A100033 DR - SLIDE RAIL 10' BOTTOM LEFT GREEN - A100030 DT - SLIDE RAIL 10' TOP LEFT GREEN - A100032 10 FOOT SLIDE ASSEMBLY STEP 2 BOLT WH...
Page 38 DW - SLIDE SUPPORT TUBE 21.34x505 - A100034 21.34 OD x 2.77 W x 505 10 FOOT SLIDE ASSEMBLY STEP 3 PLACE (1) SLIDE RAIL ASSEMBLY ON A FLAT SURFACE AND BEGIN INSERTING SLIDE BED AT THE BOTTOM OF THE SLIDE RAIL (FIG. 1). HAVE A HELPER BEND THE SLIDE BED TOWARDS THE TOP OF THE SLIDE AND INSERT THE BED INTO THE SLIDE CAVITY.
Page 39 10 FOOT SLIDE ASSEMBLY STEP 4 ONCE THE SLIDE BED, SUPPORT TUBES, AND SUPPORT BOARD ARE COMPLETELY IN THE CAVITY AND SUPPORT POCKET, SECURE USING 2-1/2" SCREWS AT EACH OF THE PILOT HOLE LOCATIONS AS SHOWN. REPEAT PROCESS FOR OPPOSITE SLIDE RAIL. SCREW PFH (38) 8x2 1/2...
Page 40 H20 - LADDER RUNG - W4L08226 H18 - LEFT UPRIGHT - W4L08224 1"x3 3/8"x18 1/8" (24x86x460) 1"x3 3/8"x64 3/8" (24x86x1634) LADDER ASSEMBLY STEP 1 SCREW PFH (10) 8x2 BLK SCREW PFH 8x2 BLK (10 PLCS)
Page 41 H19 - RIGHT UPRIGHT - W4L08225 1"x3 3/8"x64 3/8" (24x86x1634) LADDER ASSEMBLY STEP 2 SCREW PFH (10) 8x2 BLK SCREW PFH 8x2 BLK (10 PLCS)
Page 42 M41 - REAR SUPPORT - W4L08227 Y1 - ATTACHMENT BOARD - W4L08228 5/8"x3 3/8"x19 1/4" (16x86x488) 5/8"x4"x19 1/4" (16x102x488) LADDER ASSEMBLY STEP 3 SCREW PFH 8x2 BLK SCREW PFH 8x2 BLK (8 PLCS) FLUSH 1 1/4...
Page 43 - HAND GRIP GREEN 816 C/C - A100134 LADDER ASSEMBLY STEP 4 LAG SCREW WH 1/4x1-1/2 LAG SCREW WH 1/4x1-1/2 BLK (4 PLCS) HAND GRIP GREEN 816 C/C (2 PLCS)
Page 44 - CLIMBING TREE TRUNK - GREEN - A4M00866 (6) - LADDER RUNG - A4M00867 CLIMBING TREE STEP 1 BOLT TPH (14) 5/16x1 1/4 BARREL (14) 5/16x1 WZ CLIMBING TREE TRUNK - GREEN WASHER WASHER FLAT WASHER FLAT 10.5X16 WZ (14) WASHER FLAT 8.2X16 WZ FLAT 8.2X16 WZ...
Page 45 (1) - LADDER NECK - A4M00868 CLIMBING TREE STEP 2 BOLT TPH BARREL 5/16x1 1/4 5/16x1 WZ WASHER WASHER FLAT FLAT 10.5X16 8.2X16 WZ NECK - GREEN WASHER FLAT 8.2X16 WZ (2 PLCS) WASHER WASHER LOCK INT 8.4x14.5 WZ LOCK INT (2 PLCS) 8.4x14.5 BOLT TPH 5/16x1 1/4 WZ...
Page 46 - LADDER FOOT - A6P00190 CLIMBING TREE STEP 3 SCREW TAPPING 5x15mm SCREW TAPPING PPH 5x15mm WZ (2 PLCS) LADDER FOOT...
Page 47 E2 - MONKEY BAR RAIL - W4L08126 1 3/8"x3 3/8"x77 1/8" (36x86x1959) EC - METAL RUNG 559 GREEN - A100045 - TRIANGLE PLATE 100° 5 HOLE - A4M00614 - L BRACKET 2.5x38x50x55 - A100340 MONKEY BAR ASSEMBLY STEP 1 BOLT WH 5/16x1 1/2 FLUSH LAG SCREW...
Page 48 E3 - MONKEY BAR UPRIGHT - W4L08127 1 3/8"x3 3/8"x87 5/8" (36x86x2226) MONKEY BAR ASSEMBLY STEP 2 BOLT WH 5/16x1 1/2 T-NUT 5/16 BOLT WH 5/16x1 1/2 BLK (4 PLCS) T-NUT 5/16 BLK (4 PLCS)
Page 49 H24 - MONKEY BAR GROUND BOARD - W4L08129 1"x3 3/8"x70 3/8" (24x86x1786) H22 - MONKEY BAR BRACE - W4L08128 1"x3 3/8"x53 1/4" (24x86x1352) MONKEY BAR ASSEMBLY STEP 3 BOLT HEX 5/16x2-3/4 LAG SCREW WH 5/16x2-1/2 BOLT WH 5/16x1 1/2 T-NUT 5/16 NUT BARREL WH 5/16x7/8 WASHER...
Page 50 EC - METAL RUNG 559 GREEN - A100045 - HAND GRIP METAL GREEN 381 c/c - A100118 MONKEY BAR ASSEMBLY STEP 4 LAG SCREW (12) WH 1/4x1-1/2 HAND GRIP METAL GREEN 381 c/c (2 PLCS) LAG SCREW WH 1/4x1-1/2 BLK (12 PLCS) METAL RUNG 559 GREEN (4 PLCS)
Page 51 A1 - SWING BEAM - W4L08130 3 3/8"x5 1/4"x89 1/2" (86x134x2274) - SWING BEAM EXTENSION BRACKET-LEFT - A4M00617 - SWING BEAM EXTENSION BRACKET-RIGHT - A4M00618 SWING BEAM STEP 1 BOLT WH 5/16x3 BLK NUT BARREL WH 5/16x7/8...
Page 52 E4 - ANGLE BRACE - W4L08133 SP1 - SWING BEAM SUPPORT - W4L08132 1 3/8"x3 3/8"x88 3/4" (36x86x2254) 3 3/8"x3 3/8"x48 7/8" (86x86x1242) E50 - END SUPPORT - W4L08131 G8 - GROUND BOARD - W4L08134 1 3/8"x3 3/8"x44 1/8" (36x86x1120) 1"x5 1/4"x86 3/4"...
Page 53 SWING BEAM STEP 3 BOLT WH 5/16x3 BLK NUT BARREL WH 5/16x7/8...
Page 54 SWING BEAM STEP 4 BOLT HEX (12) 3/8x5-1/2 WASHER (12) (12) T-NUT 3/8 LOCK INT 10x18 WASHER (12) FLAT 11x25...
Page 55 B1 - UPRIGHT - W4L07772 K1 - GROUND BOARD - W4L08070 3"x3"x89 1/8" (76x76x2263) 5/8"x5 1/4"x61 3/4" (16x134x1570) NOTE ORIENTATION B2 - UPRIGHT - W4L07773 3"x3"x58 3/8" (76x76x1484) 1 7/16 2 1/16 B3 - WARNING UPRIGHT - W2A02207 3"x3"x58 7/16" (76x76x1484) G3 - MID BOARD - W4L08080 1"x5 1/4"x62 1/2"...
Page 56 K2 - GROUND BOARD - W4L08071 5/8"x5 1/4"x80 1/4" (16x134x2038) K3 - GROUND BOARD - W4L08073 5/8"x5 1/4"x80 1/4" (16x134x2038) STEP 2 BOLT WH 5/16x3-1/2 WASHER LOCK T-NUT 5/16 BLK EXT 8x19 BLK WASHER LOCK EXT 8x19 BLK (4 PLCS) BOLT WH 5/16x3-1/2 BLK (4 PLCS) T-NUT 5/16 BLK...
Page 57 B2 - UPRIGHT - W4L07773 3"x3"x58 3/8" (76x76x1484) G4 - MID BOARD - W4L08095 1"x5 1/4"x62 1/2" (24x134x1586) B4 - UPRIGHT - W4L08086 3"x3"x58 3/8" (76x76x1484) K1 - GROUND BOARD - W4L08070 B5 - UPRIGHT - W4L08089 5/8"x5 1/4"x61 3/4" (16x134x1570) 3"x3"x58 3/8"...
Page 58 NOTE ORIENTATION 42 1/16 38 1/8 B6 - UPRIGHT - W4L08081 3"x3"x58 3/8" (76x76x1484) G1 - MID BOARD - W4L08072 1"x5 1/4"x80 1/4" (24x134x2038) G2 - MID BOARD - W4L08082 1"x5 1/4"x80 1/4" (24x134x2038) STEP 4 BOLT WH 5/16x3 3/4 T-NUT 5/16 BLK BOLT WH 5/16x3-1/2 WASHER LOCK...
Page 59 H2 - JOIST - W4L08075 H1 - JOIST - W4L08074 1"x3 3/8"x60 1/2" (24x86x1536) 1"x3 3/8"x25 5/8" (24x86x652) H3 - FLOOR JOIST - W4L08076 H4 - SUPPORT BLOCK - W4L08077 1"x3 3/8"x60 1/2" (24x86x1536) 1"x3 3/8"x3" (24x86x76) STEP 5 LAG SCREW WH 5/16x2-1/2 BLK SCREW PFH 8x2 SCREW PFH 8x2-1/2...
Page 60 GROUND STAKE REBAR A4M00527 Anchoring Instructions STEP 6 BOLT WH 5/16x1 1/4 BOLT WH 5/16x1 1/4 BLK (1 PLCS) BOLT WH 5/16x1/2 NUT BARREL WH 5/16x7/8 BLK (1 PLCS) NUT BARREL WH 5/16x7/8 BLK NUT BARREL WH 5/16x5/8 BLK WASHER LOCK EXT 12x19 BLK APPROXIMATELY 5"...
Page 61 FP2 - FLOOR PANEL - W2A02203 FP3 - FLOOR PANEL - W2A02204 1 1/4"x10 3/16"x38 9/16" (32x259x980) 1 1/4"x10 3/16"x38 9/16" (32x259x980) FP1 - FLOOR PANEL - W2A02172 1 1/4"x17"x38 9/16" (32x432x980) M1 - FLOOR BOARD - W4L08078 5/8"x3"x35 1/2" (16x76x903) STEP 7 (54) SCREW PFH...
Page 62 H2 - JOIST - W4L08075 T1 - FLOOR SUPPORT - W4L08079 1"x3 3/8"x60 1/2" (24x86x1536) 1"x1 3/8"x25 3/4" (24x34x653) H3 - FLOOR JOIST - W4L08076 H4 - SUPPORT BLOCK - W4L08077 1"x3 3/8"x60 1/2" (24x86x1536) 1"x3 3/8"x3" (24x86x76) STEP 8 WASHER LOCK EXT 8x19 BLK LAG SCREW WH (1 PLCS)
Page 63 H8 - ANGLE BRACE - W4L08093 H9 - UPRIGHT BRACE - W4L08094 1"x3 3/8"x17 1/2" (24x86x444) 1"x3 3/8"x15 5/8" (24x86x396) STEP 9 LAG SCREW WH 1/4x2-1/2 BLK T-NUT 5/16 BLK (7 PLCS) BOLT WH 5/16x1 3/4 WASHER LOCK EXT 8x19 BLK (7 PLCS) WASHER LOCK T-NUT 5/16 BLK...
Page 64 M3 - UPPER FLOOR BOARD - W4L08085 5/8"x3"x77 1/4" (16x76x1961) M4 - UPPER FLOOR BOARD - W4L08084 5/8"x3"x80 1/4" (16x76x2037) FP4 - FLOOR PANEL - W2A02171 1 1/4"x17"x80 3/16" (32x432x2037) M6 - UPPER FLOOR BOARD - W4L08087 5/8"x3 3/8"x80 1/4" (16x86x2037) STEP 10 (90) SCREW PFH...
Page 65 H9 - UPRIGHT BRACE - W4L08094 1"x3 3/8"x15 5/8" (24x86x396) 5 FT LADDER WITH ATTACHMENT BOARD GREEN AND DR.BRN STEP 11 LAG SCREW WH BOLT WH 5/16x1 1/2 BLK 1/4x2-1/2 BLK (1 PLCS) BOLT WH 5/16x2-1/2 BLK BOLT WH 5/16x2-1/2 (1 PLCS) WASHER LOCK EXT 8x19 BLK (2 PLCS)
Page 66 B7 - UPRIGHT - W4L08096 B10 - UPRIGHT - W4L08099 3"x3"x66 1/8" (76x76x1678) 3"x3"x53 7/8" (76x76x1370) B8 - UPRIGHT - W4L08097 B11 - UPRIGHT - W4L08107 3"x3"x66 1/8" (76x76x1678) 3"x3"x53 7/8" (76x76x1370) B12 - UPRIGHT - W4L08118 B9 - UPRIGHT - W4L08098 3"x3"x79 1/8"...
Page 67 H6 - PICKET RAIL - W4L08088 1"x3 3/8"x80 1/4" (24x86x2038) H13 - RAIL - W4L08103 1"x3 3/8"x31 3/4" (24x86x807) H12 - RAIL - W4L08102 H15 - ROOF RAIL - W4L08116 1"x3 3/8"x32 3/4" (24x86x831) 1"x3 3/8"x80 1/4" (24x86x2038) STEP 13 BOLT WH 5/16x3 3/4 NOTE HOLE LOCATIONS LAG SCREW WH...
Page 68 H7 - PICKET RAIL - W4L08091 H11 - RAIL - W4L08101 1"x3 3/8"x61 1/2" (24x86x1562) 1"x3 3/8"x80 1/4" (24x86x2038) J3 - ROOF RAIL - W4L08113 1"x2 3/8"x41 5/8" (24x60x1057) H10 - RAIL - W4L08100 1"x3 3/8"x62 1/2" (24x86x1586) H25 - PICKET RAIL - W4L08239 1"x3 3/8"x60 1/2"...
Page 69 J2 - ROOF RAIL - W4L08112 1"x2 3/8"x80 1/4" (24x60x2038) 38 1/8 J9 - RAIL - W4L08106 1"x2 3/8"x80 1/4" (24x60x2038) STEP 15 BOLT WH 5/16x3 3/4 T-NUT 5/16 BLK (4 PLCS) T-NUT 5/16 BLK WASHER LOCK WASHER LOCK EXT 8x19 BLK EXT 8x19 BLK (4 PLCS) BOLT WH 5/16x3 3/4 BLK...
Page 70 H14 - RAIL - W4L08108 E1 - UPRIGHT - W4L08105 1"x3 3/8"x30 1/4" (24x86x767) 1 3/8"x3 3/8"x66 1/8" (36x86x1678) STEP 16 BOLT WH 5/16x4 1/4 BOLT WH 5/16x2-1/4 BOLT WH 5/16x3 3/4 T-NUT 5/16 BLK WASHER LOCK EXT 8x19 BLK BOLT WH 5/16x2-1/4 BLK (1 PLCS) WASHER LOCK EXT 8x19 BLK...
Page 71 NOTE ORIENTATION M2 - RAIL - W4L08120 5/8"x3 3/8"x41 3/4" (16x86x1062) L BRACKET 2.5x38x50x55 A100340 STEP 17 NUT BARREL WH 5/16x5/8 BLK (1 PLCS) NUT BARREL WH WASHER LOCK WASHER LOCK LAG SCREW WH 5/16x5/8 BLK EXT 8x19 BLK EXT 12x19 BLK 5/16x2 BLK WASHER LOCK EXT 12x19 BLK (1 PLCS)
Page 72 E5 - PICKET - W4L08137 28 3/8 1 3/8"x3 3/8"x66 1/8" (36x86x1678) M11 - PICKET - W4L08119 5/8"x3 3/8"x66 1/8" (16x86x1678) M9 - PICKET - W4L08961 5/8"x3 3/8"x66 1/8" (16x86x1678) STEP 18 EVENLY SPACE M11 & M9 PICKETS BOLT WH 5/16x2-1/4 T-NUT 5/16 BLK (4 PLCS) (20)
Page 73 NOTE ORIENTATION J8 - RAIL - W4L08139 1 1/8 H21 - RAIL - W4L08138 1"x2 3/8"x40 1/8" (24x60x1020) 1"x3 3/8"x38 3/8" (24x86x976) STEP 19 BOLT WH 5/16x3 3/4 BOLT WH 5/16x2 1/4 T-NUT 5/16 BLK (2 PLCS) WASHER LOCK T-NUT 5/16 EXT 8x19 WASHER LOCK EXT 8x19 BLK (2 PLCS)
Page 74 NOTE ORIENTATION 1 1/2 M43 - PICKET - W4L08236 M16 - PICKET - W4L08140 M8 - PICKET - W4L08104 5/8"x3 3/8"x30" (16x86x763) 1 7/8 5/8"x3"x30" (16x77x763) 5/8"x3 3/8"x30" (16x86x763) WASHER LOCK EXT 8x19 BLK STEP 20 (4 PLCS) SCREW PFH BOLT WH 5/16x1 1/2 BLK (26) 8x1-1/4"...
Page 75 G6 - ROOF TRUSS - W4L08114 G5 - ROOF TRUSS - W4L08111 G7 - ROOF TRUSS - W4L08115 15/16"x5 1/4"x33 5/8" (24x134x853) 15/16"x5 1/4"x37 3/8" (24x134x950) 15/16"x5 1/4"x35 5/16" (24x134x898) STEP 21 LAG SCREW WH 5/16x2 BLK SCREW PFH 8x2 BLK SCREW PFH 8x2-1/2 (1 PLCS) SCREW PFH 8x2 BLK...
Page 76 M17 - PICKET - W4L08201 M20 - PICKET - W4L08204 M24 - PICKET - W4L08207 5/8"x2 5/8"x34 1/2" (16x67x877) 5/8"x3 3/8"x32 3/8" (16x86x823) 5/8"x3 3/8"x28 1/8" (16x86x715) M25 - PICKET - W4L08208 M18 - PICKET - W4L08202 M21 - PICKET - W4L08205 5/8"x2 5/8"x26 1/4"...
Page 77 M26 - PICKET - W4L08209 M29 - PICKET - W4L08212 M32 - PICKET - W4L08215 5/8"x2 5/8"x21 5/8" (16x67x548) 5/8"x3 3/8"x19 1/2" (16x86x494) 5/8"x3 3/8"x15 1/4" (16x86x386) M33 - PICKET - W4L08216 M27 - PICKET - W4L08210 M30 - PICKET - W4L08213 5/8"x2 5/8"x13 1/4"...
Page 78 N3 - PICKET - W4L08109 M10 - PICKET - W4L08110 M8 - PICKET - W4L08104 (19) 5/8"x2 3/8"x30" (16x60x763) 5/8"x2 5/8"x30" (16x67x763) 5/8"x3 3/8"x30" (16x86x763) STEP 24 EVENLY SPACE PICKETS (46) SCREW PFH 8x1-1/4" SCREW PFH 8x1-1/4" (46 PLCS) HOLD PICKETS FLUSH TO TOP OF SIDE RAILS...
Page 79 M5 - WINDOW FRAME - W4L08083 M15 - PICKET - W4L08125 5/8"x3 3/8"x30 3/4" (16x86x781) 5/8"x3 3/8"x66 1/8" (16x86x1678) N1 - PICKET - W4L08123 M8 - PICKET - W4L08104 5/8"x2 3/8"x66 1/8" (16x60x1678) 5/8"x3 3/8"x30" (16x86x763) N2 - PICKET - W4L08121 5/8"x2 3/8"x66 1/8"...
Page 80 M5 - WINDOW FRAME - W4L08083 M13 - WINDOW FRAME - W4L08122 5/8"x3 3/8"x30 3/4" (16x86x781) 5/8"x3 3/8"x23 7/8" (16x86x607) STEP 26 SCREW PFH 8x1-1/8" (12) H100088 FLUSH SCREW PFH 8x1-1/8" (12 PLCS)
Page 81 T2 - WINDOW FRAME - W4L08136 15/16"x1 5/16"x27 15/16" (24x34x709) M14 - PICKET - W4L08124 5/8"x3 3/8"x12 1/8" (16x86x307) T3 - WINDOW FRAME - W4L08135 1"x1 3/8"x27 7/8" (24x34x707) STEP 27 SCREW PFH 8x1-1/2 SCREW PFH EVENLY SPACE PICKETS 8x1-1/4" H100200 SCREW PFH 8x1-1/4"...
Page 82 M7 - PICKET - W4L08092 (20) 5/8"x3 3/8"x26 7/8" (16x86x683) STEP 28 (20) SCREW PFH 8x1-1/4" (20) SCREW PFH 8x1-1/8" SCREW PFH 8x1-1/4" (20 PLCS) TOP ROW SCREW PFH 8x1-1/8" (20 PLCS) BOTTOM ROW EVENLY SPACE PICKETS...
Page 83 J7 - ROOF RAIL - W4L08231 J10 - ROOF RAIL - W4L08230 1"x2 3/8"x4 3/4" (24x60x122) 1"x2 3/8"x5 3/4" (24x60x146) 90° L-BRACKET - N4 - ROOF RAIL - W4L08229 A4M00555 5/8"x2 3/8"x82 1/8" (16x60x2086) STEP 29 SCREW PFH 8x1-1/2 (12) H100200 FLUSH SCREW PWH 8x3/4...
Page 84 KE5 - END SHINGLE - W4L08232 5/8"x3 3/8"x86 7/8" (16x86x2206) KP4 - SHINGLE - W4L08233 (12) 5/8"x3 3/8"x86 7/8" (16x86x2206) STEP 30 SCREW PFH 8x1-1/2 (82) H100200 SCREW PFH 8x1 1/8 H100386 SCREW PFH 8x1-1/2 BLK (82 PLCS) FLUSH FRONT OF KE5 TO N4 FROM PREVIOUS STEP 12 PLCS SCREW PFH 8x1 1/8 BLK...
Page 85 KE6 - END SHINGLE - W4L08234 5/8"x3 3/8"x48 1/4" (16x86x1225) KP7 - SHINGLE - W4L08235 5/8"x3 3/8"x48 1/4" (16x86x1225) STEP 31 SCREW PFH 8x1-1/2 (43) H100200 SCREW PFH 8x1 1/8 H100386 SCREW PFH 8x1-1/2 BLK (1 PLCS) KP7 9 PLCS SCREW PFH 8x1-1/2 BLK (43 PLCS)
Page 86 H16 - PICNIC TABLE SEAT RAIL - W4L07769 H23 - PICNIC TABLE BRACE - W4L07770 1"x3 3/8"x32" (24x86x812) 1"x3 3/8"x17 1/2" (24x86x444) H17 - PICNIC TABLE TOP RAIL - W4L07771 1"x3 3/8"x16 1/2" (24x86x420) STEP 32 BOLT WH 5/16x1 3/4 LAG SCREW WH LAG SCREW WH 1/4x2-1/2 BLK...
Page 87 H5 - SEAT - W4L08090 1"x3 3/8"x40 3/8" (24x86x1025) (1) TT - TABLE TOP - W2A02206 1 1/4"x16 5/8"x40 3/8" (32x422x1025) STEP 33 SCREW PFH 8x2 (16) H100111 SCREW PFH 8x1-1/2" (20) H100086 SCREW PFH 8x1-1/2" (20 PLCS) SCREW PFH 8x2 (16 PLCS) FLUSH...
Page 88 (1) MONKEY BAR ASSY. STEP 34 BOLT WH 5/16x1 BLK BOLT WH 5/16x1 BLK H100468 (2 PLCS) T-NUT 5/16 BLK (2 PLCS) T-NUT 5/16 BLK MONKEY BAR (1 PLCS)
Page 89 L BRACKET 51x32x82x3.175 A4M00855 (1) SWING BEAM ASSY. STEP 35 BOLT HEX 5/16x1-3/4 T-NUT 5/16 BLK H100657 H100379 LAG SCREW HEX 5/16x2 BLK H100660 WASHER FLAT 8x27 T-NUT 5/16 BLK WASHER SPLIT 5/16 H100478 (2 PLCS) H100477 BACKSIDE BOLT HEX 5/16x1-3/4 BLK (2 PLCS) WASHER FLAT 8x27 BLK (4 PLCS)
Page 90 HAND GRIP METAL GREEN 381 c/c A100118 GROUND STAKE A4M00766 (1) CLIMBING TREE STEP 36 USE PILOT HOLES TO LOCATE BOLT WH 5/16x1 1/2 BLK BOLT WH 5/16x1 1/2 (2 PLCS) H100407 T-NUT 5/16 BLK (2 PLCS) USING RAIL AS A TEMPLATE LAG SCREW WH 5/16x2 BLK DRILL 7/16"...
Page 91 HAND GRIP METAL GREEN 381 c/c A100118 STEP 37 LAG SCREW WH 5/16x2 BLK H100458 USE PILOT HOLES TO LOCATE HAND GRIP METAL GREEN 381 c/c (2 PLCS) LAG SCREW WH 5/16x2 BLK (4 PLCS)
Page 92 (1) 10' SLIDE ASSEMBLY STEP 38 BOLT WH 5/16x1/2 H100115 1 3/8 in [34 mm] 4 1/8 in [103 mm] T-NUT 5/16 5 in H100074 [127 mm] 5 in [127 mm] 1 in USING A 3/8" DRILL BIT [25 mm] AND DIMENSIONS ABOVE DRILL HOLES THROUGH 6 1/2 in...
Page 93 (1) ARCHED FLOOR JOIST - A4M00874 E8 - RAIL - W4L08144 1 3/8"x3"x35" (36x76x889) (1) ARCHED FLOOR JOIST - A4M00901 STEP 39 LAG SCREW WH BOLT HEX 5/16x2-1/2 LAG SCREW HEX 5/16x3 5/16x1-1/2 BLK H100029 H100658 H100659 WASHER SPLIT 5/16 WASHER LOCK EXT T-NUT 5/16 BLK WASHER FLAT 8x27...
Page 94 LADDER RUNG 578 GREEN A100324 STEP 40 BOLT WH 5/16x1/2 H100115 T-NUT 5/16 H100074 USE PILOT HOLES TO LOCATE LADDER RUNG 578 GREEN (2 PLCS) BOLT WH 5/16x1/2 (4 PLCS) T-NUT 5/16 (4 PLCS) OPPOSITE SIDE...
Page 95 (4) RAIL - A4M00875 E6 - RAIL - W4L08145 1 7/16"x3 1/8"x37" (36x80x940) - SUPPORT BRACE - A4M00928 STEP 41 BOLT WH 5/16x1 1/2 NUT BARREL WH BOLT WH 1/4x2 BLK (10) 1/4x5/8 BLK H100407 H100488 H100404 T-NUT 1/4 BLK WASHER LOCK EXT H100398 T-NUT 5/16 BLK...
Page 96 (2) ARCHED RAIL - A4M00873 F3 - RAIL - W4L08148 1 3/8"x2 3/8"x35" (36x60x889) L BRACKET BLACK 32x51 A4M00710 STEP 42 LAG SCREW WH BOLT WH 1/4x2 BLK 5/16x1-1/2 BLK H100488 H100471 T-NUT 1/4 BLK BOLT WH 1/4x1 1/2 H100398 H100406 ARCH RAILING ARCH RAILING...
Page 97 M37 - FLOOR BOARD - W4L08220 M35 - FLOOR BOARD - W4L08218 Y2 - FLOOR BOARD - W4L08222 5/8"x3 3/8"x33 1/8" (16x86x840) 5/8"x3 3/8"x36 3/8" (16x86x923) 5/8"x3 3/4"x22 1/4" (16x95x564) M38 - FLOOR BOARD - W4L08221 M36 - FLOOR BOARD - W4L08219 M34 - FLOOR BOARD - W4L08217 5/8"x3 3/8"x29"...
Page 98 O1 - PICKET - W4L08150 (26) 5/8"x1 3/8"x32 3/8" (16x34x821) STEP 44 SCREW TAPPING (52) PWH #10x1-1/8 H100749 SCREW TAPPING PWH #10x1-1/8 (52 PLCS)
Page 99 QUICK LINK SWING SEAT GREEN A100069 22" A6P00054 (1) WEB SWING - A6P00253 CHAIN GREEN 57" A100047 STEP 45 TIGHTEN QUICK LINK INSERT CHAIN INTO QUICK LINK 26" WEB SWING SEAT (1 PLCS) CHAIN GREEN 57" (4 PLCS) QUICK LINK (4 PLCS)
Page 100 WEB SWING SETUP INSTRUCTIONS: FOLLOW INSTRUCTIONS BELOW BEFORE USING THE WEB SWING. IMPORTANT: SWING MUST BE SET AT A MINIMUM OF 8 INCHES OFF THE GROUND WHEN INSTALLED. IMPORTANT: TO ENSURE STRAIGHT SWINGING MOTION, ADJUST ALL (4) "S" BRACKETS UNTIL WEB SEAT IS LEVEL.
Page 101 BYD ID TAG (LARGE) (1) TELESCOPE - AGES 3-10 A100164 A100104 STEP 46 SCREW TAPPING SCREW PWH 8x5/8 14x2-1/2 H100128 H100082 FLANGE CUP WASHER H100225 SCREW TAPPING 14x2-1/2 (1 PLCS) FLANGE CUP WASHER (1 PLCS) BYD ID TAG (LARGE) 2011 WITH AGES (1 PLCS) SCREW PWH 8x5/8 (4 PLCS)
Page 102 "A" REVISION TAG A100314 STEP 47 SCREW PWH 8x3/4 H100392 APPROXIMATE LOCATIONS SCREW PWH 8x3/4 BLK (2 PLCS) "A" REVISION TAG (1 PLCS)
Page 103 GROUND STAKE REBAR A4M00527 STEP 48 Anchoring Instructions BOLT WH 5/16x1/2 TAP IN GROUND STAKES AT AN APPROXIMATE 45° ANGLE AT THE LOCATIONS SHOWN. USING GROUND STAKES AS A GUIDE, DRILL 7/16" DIA HOLES. NUT BARREL WH NOTE: 5/16x7/8 BLK FAILURE TO USE GROUND STAKES CAN VOID WARRANTY &...
Page 104 Limited Warranty. In addition, Backyard Discovery will replace any parts within the first 30 days from date of purchase found to be missing from or damaged in the original packaging.
