Empire Comfort Systems DCA1ABL-1 Quick Manual

FoR USE oN: (A)DVTL27FP90, (A)DVCX FIREPLACES, DVCT(36,40,50)CFP95, AND DVCT40CSP
INSTRUCTIoNS MUST BE LEFT WITH THE oWNER FoR FUTURE REFERENCE AFTER INSTALLATIoN.
1. Remove Offset Frame and Glass Frame assembly.
See Fireplace Installation Instructions.
(A)DVCX models only: Remove control panel.
See Fireplace installation instructions.
2. Adjust bracket to correct position depending on unit you
have. See Figure 3 below.
3. Place Andirons into Firebox.
• The Andiron "legs" must sit on the firebox floor, brick,
ember bed, stone, or sheet metal liners.
• The Rear Bracket of each Andiron must rest upon the
left or right edge of the Burner.
• If necessary, adjust the height of the Rear Bracket by
loosening the nut on the back side. Use a 7/16-inch
wrench or socket.
4. Replace items removed in Step 1. See Fireplace Installation
Instructions.
DCA1ABL-1 PARTS LIST
Part Number Description
33971
(A) DVTL FIREPLACE
Note: Logs and embers removed for clarity.
34498-3-0819

INSTALLATIoN INSTRUCTIoNS

DCA1ABL-1 ANDIRoNS
Quantity Supplied

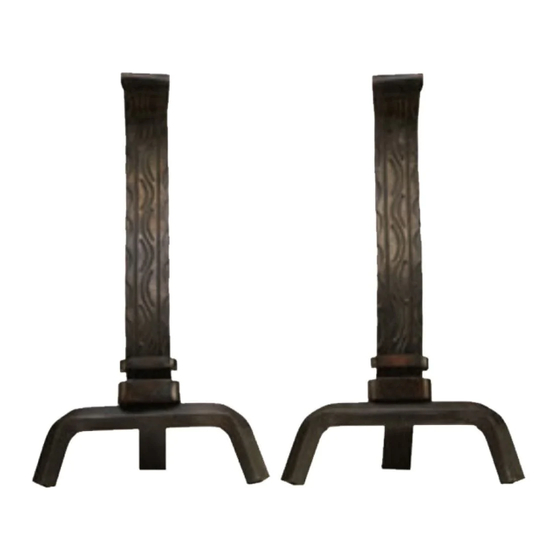

Andiron
2
Assembly
REAR
BRACKET
Andirons

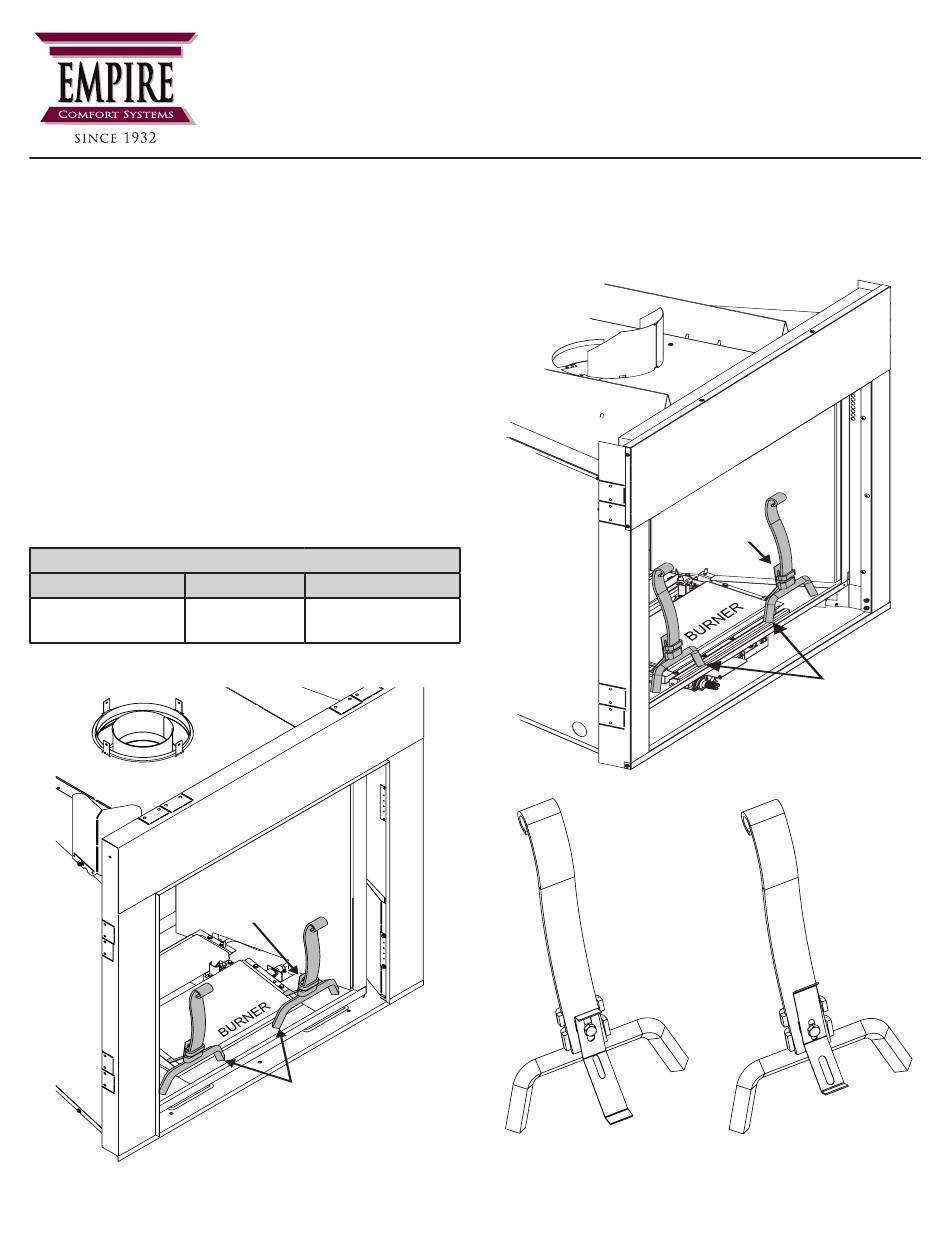

Figure 1

(A) DVCX FIREPLACE
POSITION A
PoSITIoN (A)
For All Other Units
POSITION A
REAR
BRACKET
ANDIRONS

Figure 2

PoSITIoN (B)
POSITION B
For See-Thru

Figure 3

Page 1
