DECORATIVE FIREPLACE FRONT
BEVELED WINDOW FRAMES: DF362(NB,XBZT)-1 AND DF422(NB,XBZT)-1
MODEL NUMBER
DF362NB
DF422NB
DF362XBZT
DF422XBZT
CLEANING
With the unit turned off and cool to the touch, use a 50/50 solution
of vinegar and water and a clean soft cloth to remove dirt and
fingerprints.
Clean doors and/or frame before and after start-up and again anytime
oil or fingerprints are present.
When heated, oil from fingerprints or left over from manufacturing
can permanently discolor the plating.
INSTALLATION
ATTENTION: Leave Barrier Screen in place when installing fronts.
1.
Remove lower panel by lifting it up and out. See Figure 1.
a.
Retain lower panel for future use. Turn to page 2.
41777-0-0220
INSTALLATION INSTRUCTIONS
FOR USE ON (A)DVCX SERIES FIREPLACES

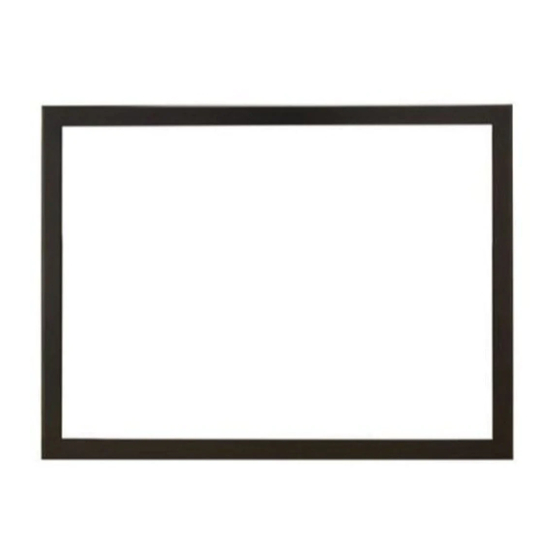

Beveled Window Frame - Brushed Nickel
Beveled Window Frame - Brushed Nickel
Beveled Window Frame - Oil Rubbed Bronze
Beveled Window Frame - Oil Rubbed Bronze
Figure 1
Empire Comfort Systems Inc. • Belleville, IL
DESCRIPTION
NOTE: The rear of the Beveled Window Frame is unfinished.
2.
Move the four screws (two each side) to the forward holes.
See Figure 2.
FITS (A)DVCX FIREPLACE SIZE
36"
42"
36"
42"
Figure 2
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Empire Comfort Systems DF362NB-1
Summary of Contents for Empire Comfort Systems DF362NB-1
- Page 1 ATTENTION: Leave Barrier Screen in place when installing fronts. Remove lower panel by lifting it up and out. See Figure 1. Retain lower panel for future use. Turn to page 2. Figure 2 Figure 1 41777-0-0220 Empire Comfort Systems Inc. • Belleville, IL Page 1...
- Page 2 See Figure 3. Figure 3 Replace lower panel removed in Step 1. See Figure 4. Figure 4 Empire Comfort Systems Inc. Belleville, IL If you have a general question about our products, please e-mail us at info@empirecomfort.com.
