Part Number
R11714
INSTRUCTIONS MUST BE LEFT WITH THE OWNER FOR FUTURE REFERENCE AFTER INSTALLATION
TOOLS REQUIRED:
•
Electric screw gun with Phillips driver
•
Flat-head screwdriver
NOTICE: Your log set will be installed using this
instructions sheet in conjunction with the fireplace
installation instructions.
LSU24SPF
LSU24SPF
DG36MX
36104-1-0220

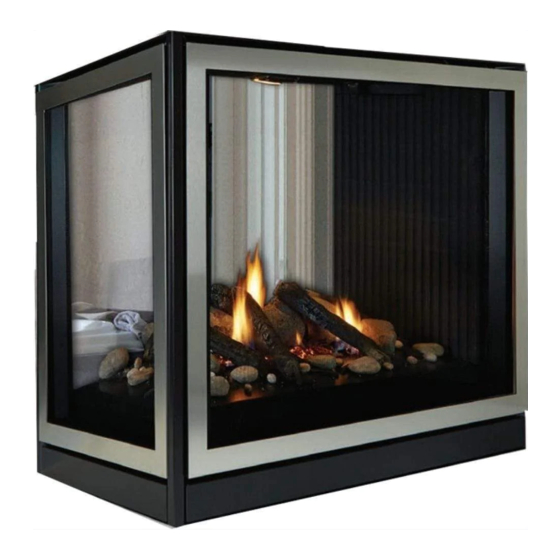

INSTALLATION INSTRUCTIONS
DECORATIVE BOULDERS DG36MX-1
CAMPFIRE LOGSET - LSU24SPF-1
FOR USE ON MODELS: DVCP36(SP,PP)
HARDWARE PACK CONTENTS
#10 X 3/8" Truss Head
Empire Comfort Systems Inc. • Belleville, IL
Description

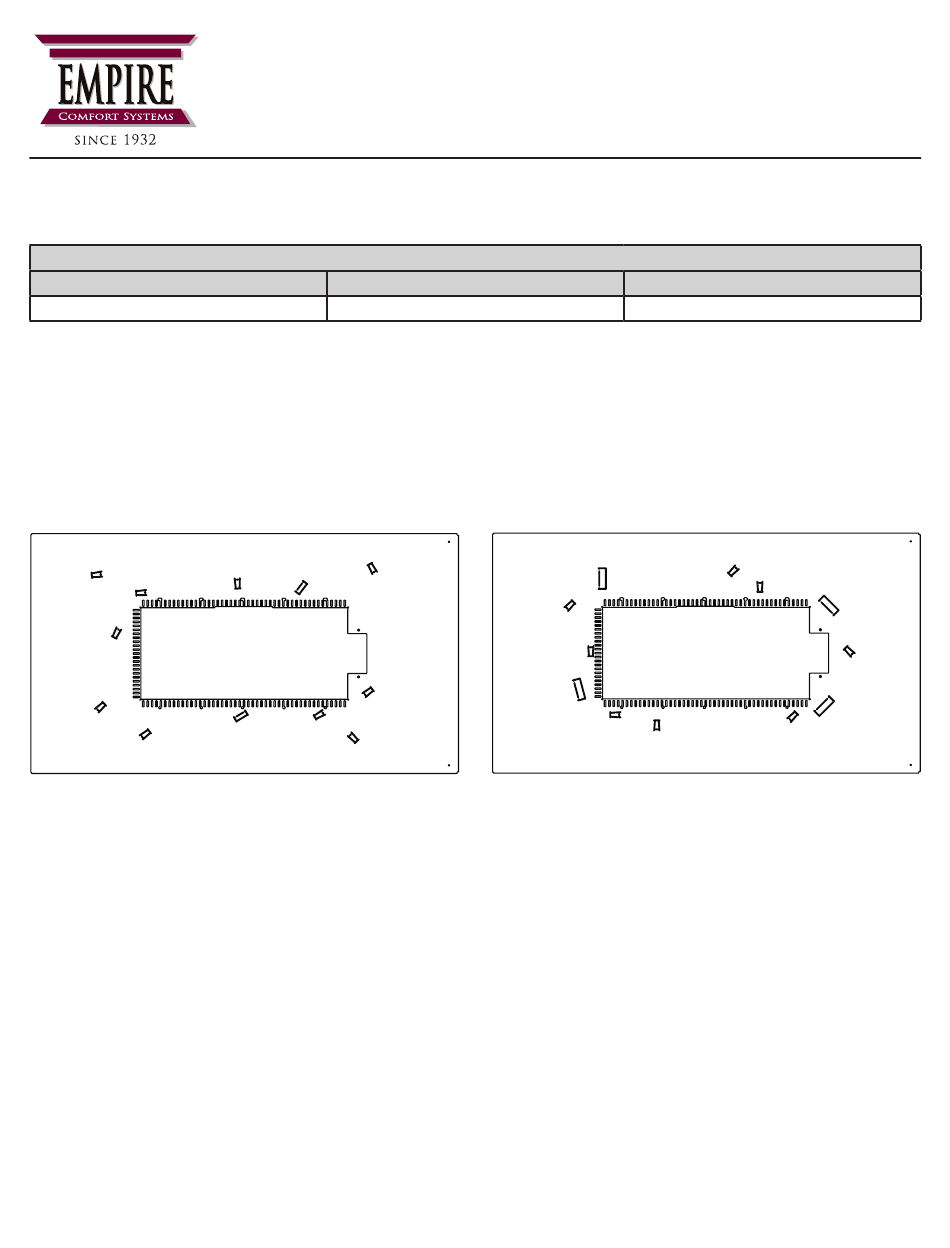

1. Compare the false floor in your log accessory kit to
Figure 1 to make sure that you have the correct part.
Contact your dealer if the false floor you received is
incorrect.
Figure 1
Quantity Supplied
10
LSU24SPF
DG36MX
DG36MX
Page 1
