Empire Comfort Systems BDO36SS Installation Instructions And Operation Manual

FOR USE WITH: OP36FP AND OP42FB FIREPLACE MODEL SERIES
BDO36SS
(For Use With O(P,LP)36FP
Fireplace Model Series)
GAS-FIRED
UL FILE NO.
MH45034
Please read these instructions carefully before starting the installation. Failure to follow these
Installation instructions may result in a possible fire hazard and will void the warranty. These
instructions must be left with the appliance for future reference.
1. Be sure these instructions become the
property of, and are reviewed by, all future
users of the fireplace to encourage proper
installation and operation of the glass
doors.
2. Read these instructions entirely before
beginning the installation. Save the
instructions for future reference.
3. All parts used with the fireplace system
must be installed in accordance with
these installation instructions. Failure to
do so may be hazardous and will void the
warranty.
44027-1-0723
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL

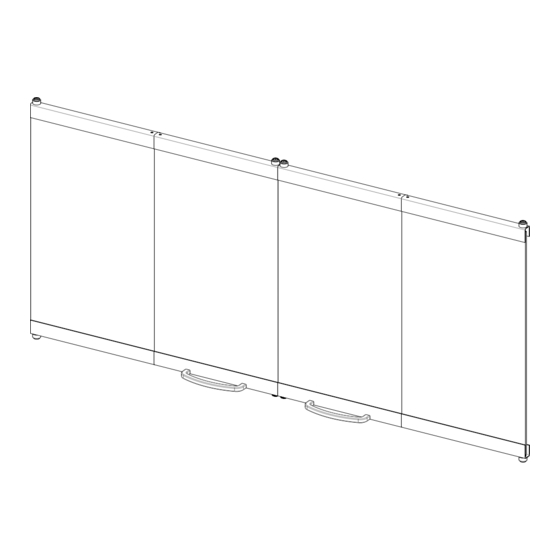

BIFOLD GLASS DOOR MODELS
(For Use With OP36FB
Fireplace Model Series)

WARNING

IMPORTANT NOTICES

Empire Comfort Systems Inc. • Belleville, IL
BDO42SS
(For Use With O(P,LP)42FP
Fireplace Model Series)
HARDWARE PACK CONTENTS
PHILLIPS TRUSS HEAD SCREW
PHILLIPS TRUSS HEAD SCREW
PHILLIPS TRUSS HEAD SCREW 8-32 X 7/8" - QTY - 4 PHILLIPS TRUSS HEAD SCREW 8-32 X 7/8" - QTY - 4
PHILLIPS SCREW 10 - 16 x 1/2"
PHILLIPS SCREW 10-16 X 1/2
FLAT WASHER #6 - QTY - 4
Hardware shown at scale when possible.
4. Check to make sure all parts are included
prior to assembly. See parts list on page 4
for reference.
5. Tools needed for installation includes
standard and Phillips screwdrivers, and a
5/16" nutdriver.
6. CAUTION: Sharp edges. Wear gloves and
safety glasses when installing the glass door
components.
7. Decorative non-combustible trim or finishing
materials must not extend beyond the firebox
side openings. Any materials that extend
past the firebox side opening will interfere
with the operation of the glass doors.
(For Use With OP42FB
Fireplace Model Series)
PHILLIPS TRUSS HEAD SCREW
8-32 X 7/8" - QTY - 4 8-32 X 7/8" - QTY - 4
M4 x 16mm - QTY - 4
PHILLIPS SCREW 10-16 X 1/2
SELF DRILL - QTY - 10 SELF DRILL - QTY - 10
SELF DRILL - QTY - 10
FLAT WASHER #6 FLAT WASHER #6
QTY - 4 QTY - 4
PHILLIPS PHI
