Empire Comfort Systems DVCT30 Installation Instructions

DVCT30CBN
DVP30CPKR-2
Description
Rear Liner
Left Liner
Right Liner
Bottom Liner
Top Liner
Rear Heat Shield
NOTICE: Before You Begin
The glass panels are smooth on one side and textured on the other. Install liners with smooth side facing burners.
1. Remove barrier screen and glass door. Remove log
set and existing liner kit if applicable. Store each in a
safe location.
42016-1-0520
INSTALLATION INSTRUCTIONS
DVCT30 & DVCT35 LINER KITS
BLACK REFLECTIVE LINERS
DVCT35CBN
DVP35CPKR-2
LEAVE INSTRUCTIONS WITH THE HOMEOWNER.
CARTON CONTENTS
Black Reflective Liners
1
1
1
1
1
1
TOOLS NEEDED: Phillips Screwdriver
REFLECTIVE LINER INSTALLATION

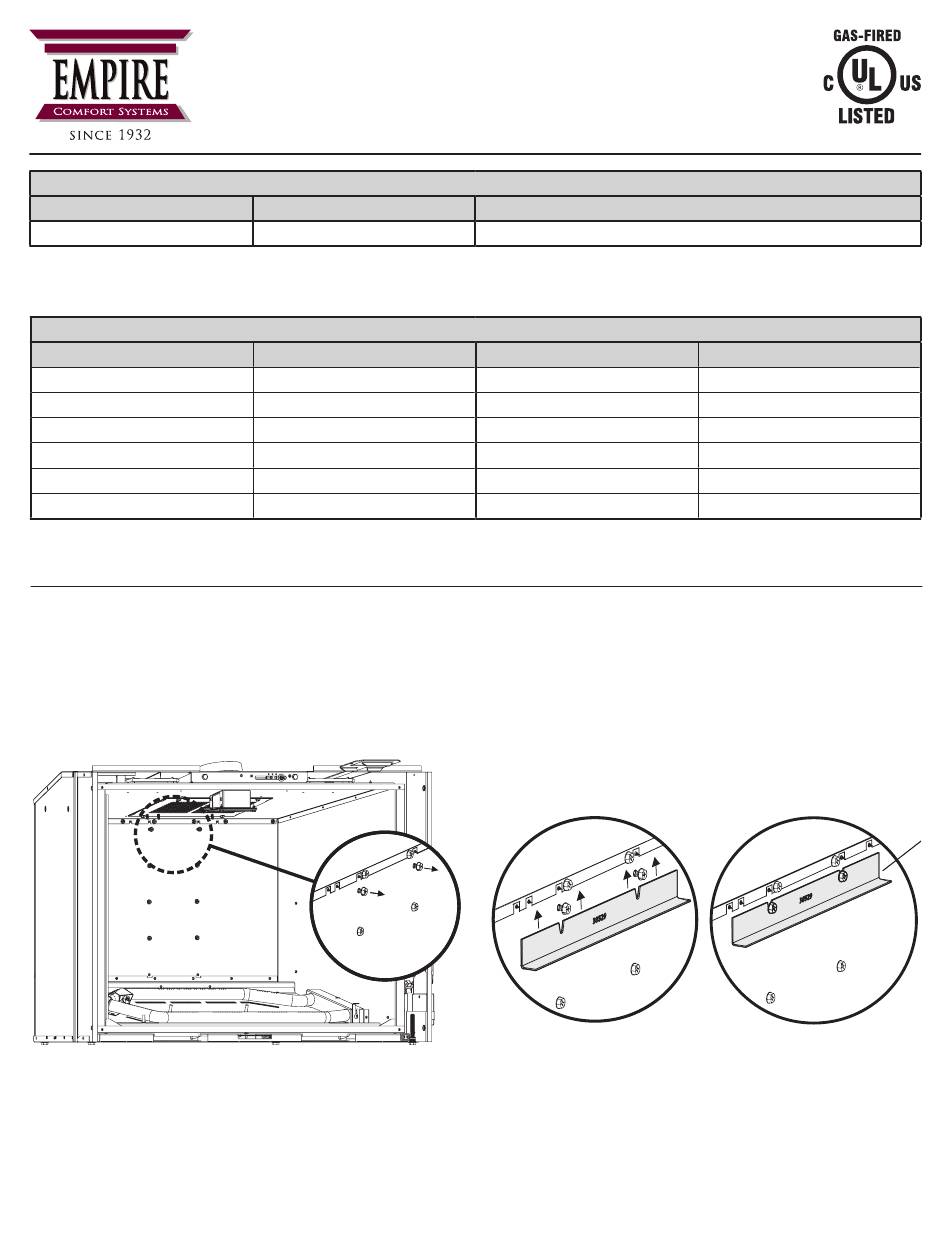

Figure 1
Empire Comfort Systems Inc. • Belleville, IL
Description
Black Reflective Liners
Description
(Cont'd)
Left Heat Shield
Liner Bracket, Side
Liner Bracket, Top
Rear Liner Bracket
#10 x 1/2 Screw
#8 x 1/2 Screw
2. Loosen screws indicated. See Figure 1.
3. Slide rear liner bracket up under screw heads as shown
in Figure 2 a, b. Hold rear liner bracket and tighten
screws using screwdriver. (Do not use socket driver.)
a.
Black Reflective Liners
1
2
1
1
3
12
b.
REAR LINER
BRACKET
Figure 2
(Cont'd)
REAR
LINER
REAR LINE
BRACKET
BRACKE
