ELECTRICAL SYSTEM AND CONTROL LOCATIONS

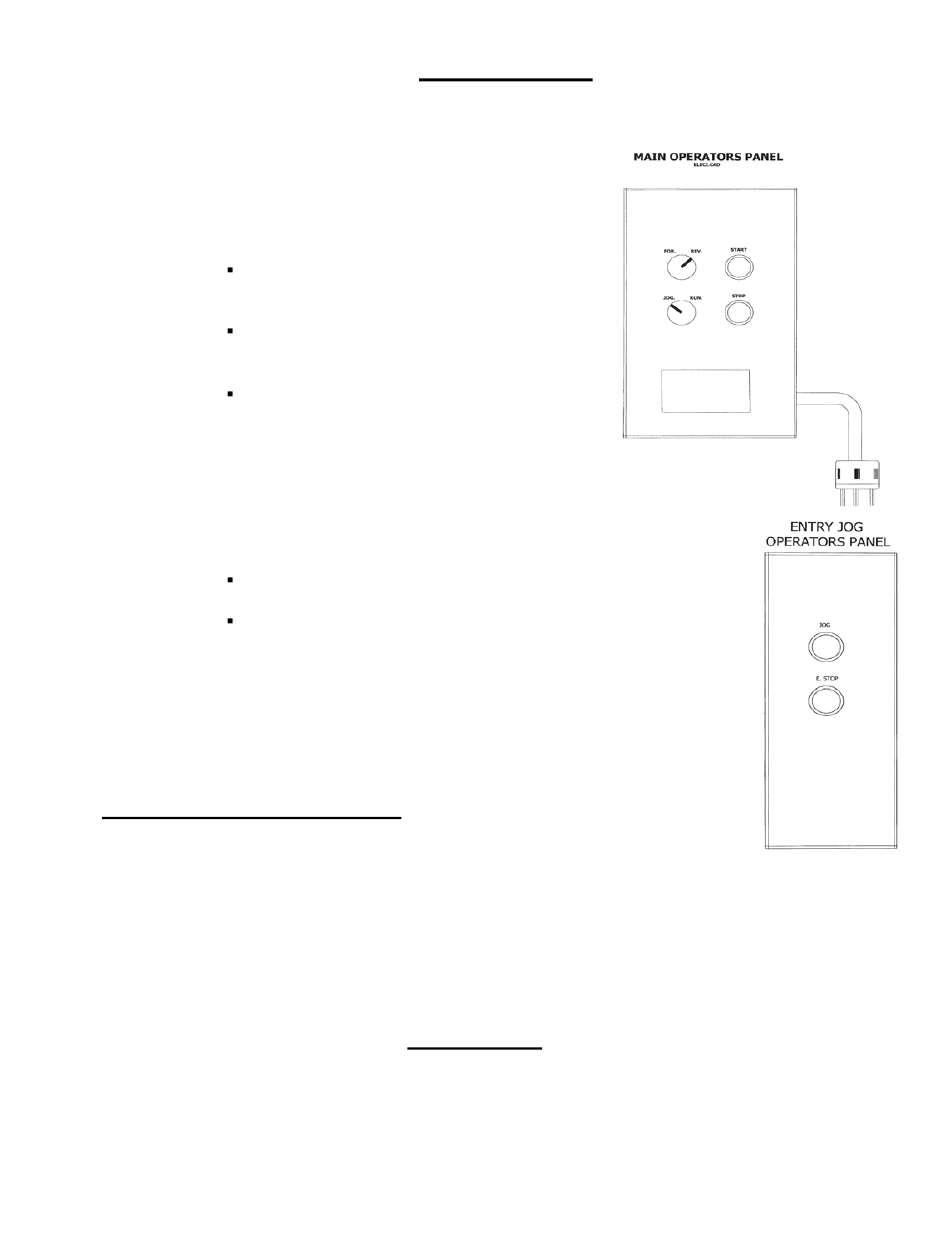

MAIN OPERATOR'S PANEL
1E.
The MAIN OPERATOR'S PANEL is located on the right side at
the exit end of the machine.
THE MAIN OPERATOR'S PANEL CONSISTES OF:
2E. ENTRY OPERATOR'S PANEL
The ENTRY OPERATOR'S PANEL is located on the right side at
the entrance end of the machine.
3E. POWER SOURCE PLUG
The POWER SOURCE PLUG is located at the exit end of the machine on the right side.
FEEDING THE MACHINE:
1. Position selector switch to the JOG position.
2. Position selector switch to the FORWARD position.
3. Remove pressure on spool brakes. (SEE PG. 10)
4. Trim both corners of the coil material, removing two 3" X 3" triangles. (SEE PG. 12)
5. Standing at entrance of machine, position material through the entrance guides to the #1 drive assembly.
6. Activate the JOG button using your right hand-at the same time- using your left hand to push material so as to
engage with #1 drive assembly. Jog the material approximately two feet.
7. Using the main control panel jog material through guillotine using START-push button.
8. Position selector switch to the RUN position.
It is important to adhere to the motor manufacturer's minimum wire gage in order to maintain the warranty on the motor.
FEEDING THE MACHINE
2 SELECTOR SWITCHES
JOG-RUN
•
FORWARD-REVERSE
•
2 PUSH BUTTONS
START (GREEN)
•
STOP (RED)
•
DUPLEX RECEPTACLE
ACCESSORY POWER SUPPLY
•
THE ENTRY OPERATOR'S PANEL CONSISTS OF:
1 PUSH BUTTON
JOG (GREEN)
•
POWER SHUT OFF
EMERGENCY STOP BUTTON (RED)
•
ELECTRICAL CORD REQUIREMENTS
0-25'
25-50'
50-100'
SECTION: 5
SECTION: 6
12 ga
10 ga
7 ga
