KWM Gutterman IronMan Operating And Maintenance Troubleshooting Manual page 20

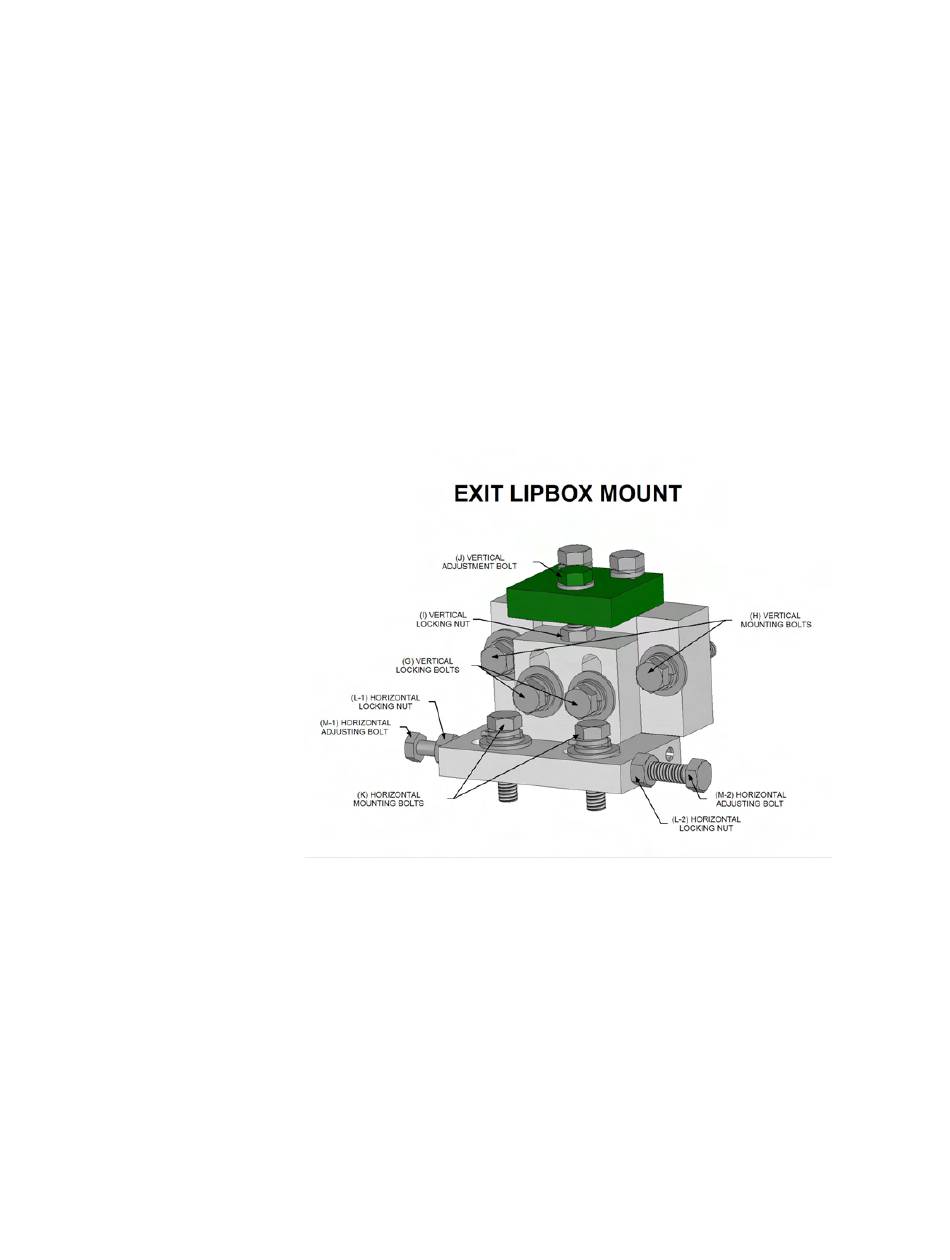

EXIT BOX MOUNT LOCATION
The VERTICAL exit box mount adjustment is used to control the up and down hill on the face-side of the bottom.
•
The LATERAL adjustment is used to control the width across the opening of the gutter.
•
A. VERTICAL ADJUSTMENT:
1. To adjust the exit end of the box up or down, first loosen LOCKING BOLTS G (2).
a. TO RAISE THE BOX:
i. Turn ADJUSTMENT BOLT J clockwise. (.017" per revolution)
b. TO LOWER THE EXIT END OF THE BOX:
i. Turn ADJUSTMENT BOLT J counter-clockwise. (.017" per revolution)
2. When desired height is reached, tighten LOCKING BOLTS G (2).
B. LATERAL ADJUSTMENT:
1. To adjust the exit end of the lip box in or out, first loosen LOCKING NUTS (L-1 & L-2) and MOUNTING BOLTS
K (2 places).
a. TO MOVE TOWARDS THE BACK OF THE GUTTER:
i. Loosen ADJUSTMENT BOLT (M-1) and tighten ADJUSTMENT BOLT (M-2).
TO MOVE AWAY FROM THE BACK OF THE GUTTER:
b.
i. Loosen ADJUSTMENT BOLT (M-2) and tighten ADJUSTMENT BOLT (M-1).
2. After completing adjustment, tighten LOCKING NUTS (L-1 & L-2) and MOUNTING BOLTS K (2 places).
COMBO MACHINE
A. ADJUSTING LIP FORMING BOX 5" TO 6":
1. Pull retractable pins on outside box roller shafts.
2. Lower station rollers individually to the 6" position.
3. Release retractable pin.
4. Remove the 6" inside roller bar from the storage position on the gearbox.
5. Remove the 5" inside roller bar from the lip box by loosing the red setscrews.
6. Install 6" inside roller bar in the lip-forming box.
7. Store the 5" inside roller back to the storage position.
B. ADJUSTING LIP FORMING BOX 6" TO 5":
1. Remove the 6" inside roller bar from the lip box by loosing the red setscrews.
2. Remove the 5" inside roller bar from the storage position on the gearbox.
3. Install 5" inside roller bar in the lip-forming box.
4. Store the 6" inside roller bar to the storage position.
5. Pull retractable pins on outside box roller shafts.
6. Raise station rollers individually to the 5" position.
7. Release retractable pin.
19
