Machine Exit End Forming And Drive Assembly; Machine Top Exit Drive Adjustment And Assembly Drawings - KWM Gutterman IronMan Operating And Maintenance Troubleshooting Manual

This assembly is a very important part of the machine. Not only does it finish the forming process, but it also drives the
material out of the machine.
IMPORTANT:
The #3 SKATE and the EXIT END FORMING DRIVE STATION
are bolted together by BOLTS (K) to insure that the drive roller
stays square to the skate.
Before making any adjustment to this assembly, you must loosen
BOLTS K (2 places).
CAUTION: Always make sure BOLTS K is retightened after adjustment.
SECTION: 13

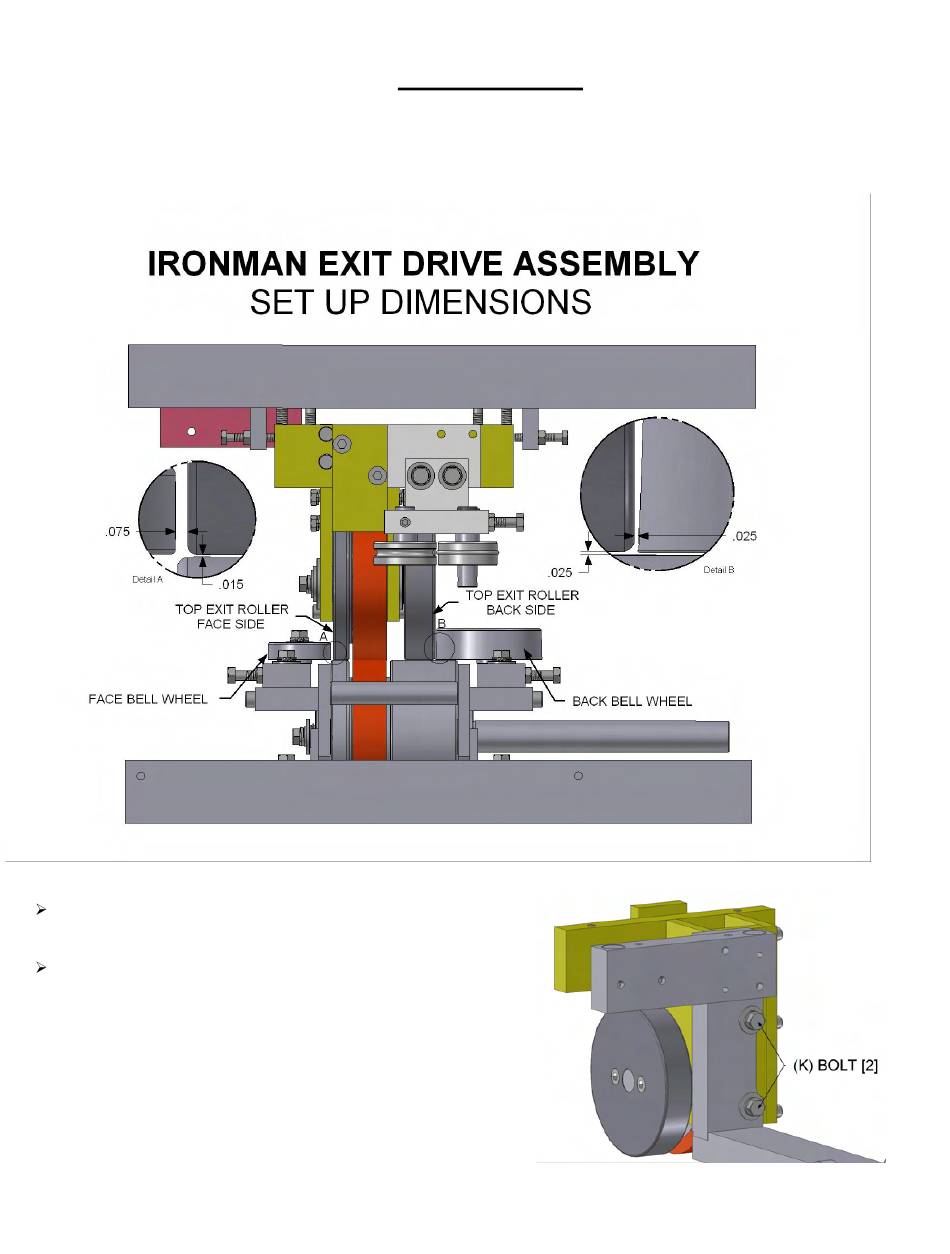

EXIT END FORMING AND DRIVE ASSEMBLY
20
