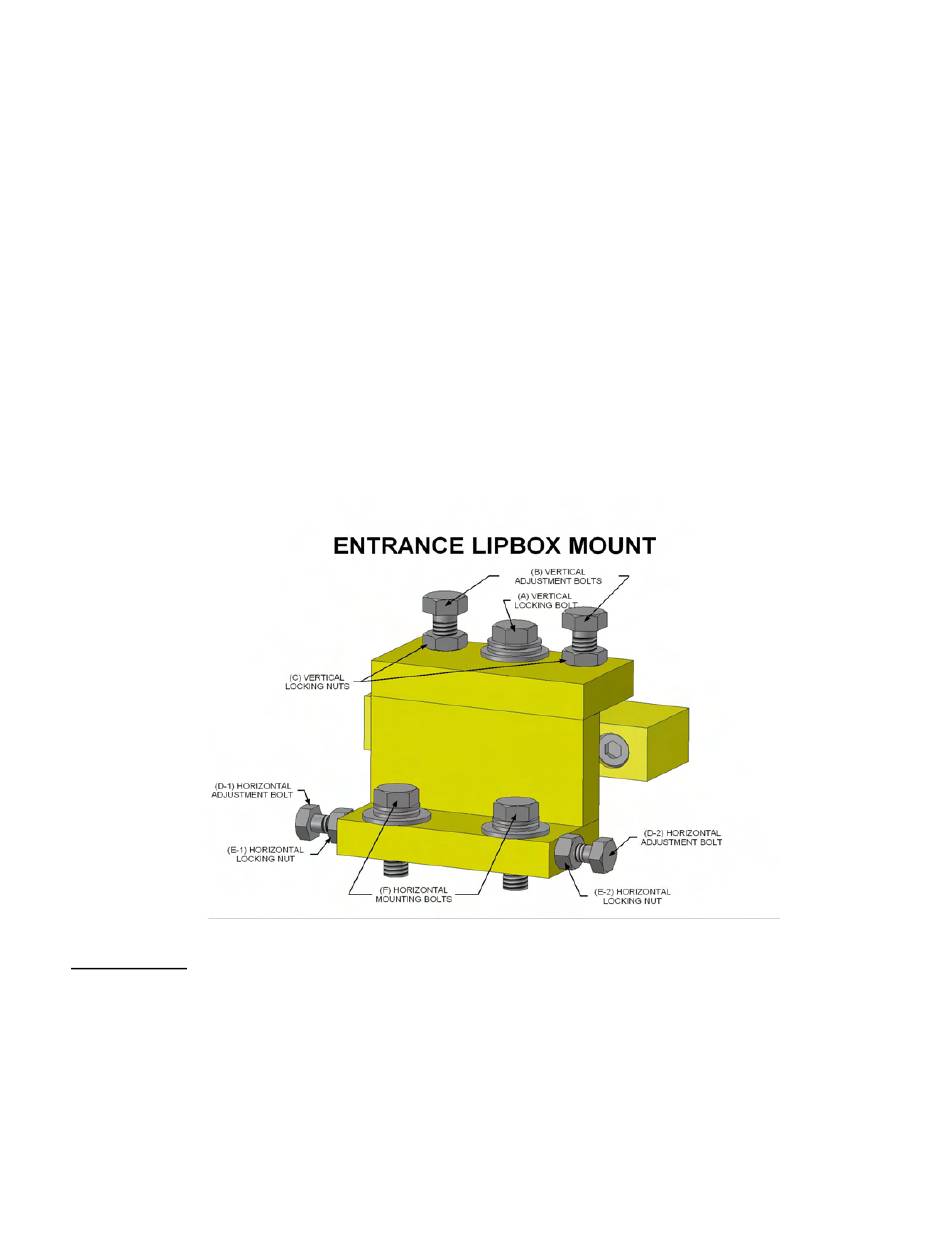

ENTRANCE BOX MOUNT LOCATION:
• The ENTRANCE BOX MOUNT has primary purpose in aligning the entrance of the forming box with the exit of
the face-forming box.
• Looking through the guillotine, see that the lateral alignments between the forming rollers of both boxes are in line.
THIS LOCATION IS FACTORY SET & SHOULD NOT BE ALTERED.
• The vertical (height) adjustment is used to line up the inside radius of the box rollers with the last (top) bend coming
out of face rollers. (1 3/8" ON 5" GUTTER: and 1 5/8" ON 6" GUTTER)
A. TO RAISE THE STATION:
1. Loosen the two LOCKING NUTS (C) on adjustment bolts (B).
2. Turn LOCKING BOLT (A) counter-clockwise.
3. Equally turn the two ADJUSTMENT BOLTS (B) clockwise to the desired height.
4. Tighten LOCKING BOLT (A) and LOCKING NUTS (C).
B. TO LOWER THE STATION:
1. Loose the two LOCKING NUTS (C) on adjustment bolts (B).
2. Equally turn the two ADJUSTMENT BOLTS (B) counter-clockwise to the desired height.
3. Tighten LOCKING BOLT (A) and LOCKING NUTS (C) in 2 places.
C. Run metal completely through machine, back metal up 6" to 10", check for double track prior to the lip box.
D. If necessary, repeat to raise or lower.
PRECAUTION: The forming box is a critical part of this machine. When adjusting in this area, move adjustments
incrementally 1/8 of a turn at a time. Always return to original position before trying a different adjustment.
