PB TEEN CUSHY PEDESTAL BASE Quick Start Manual

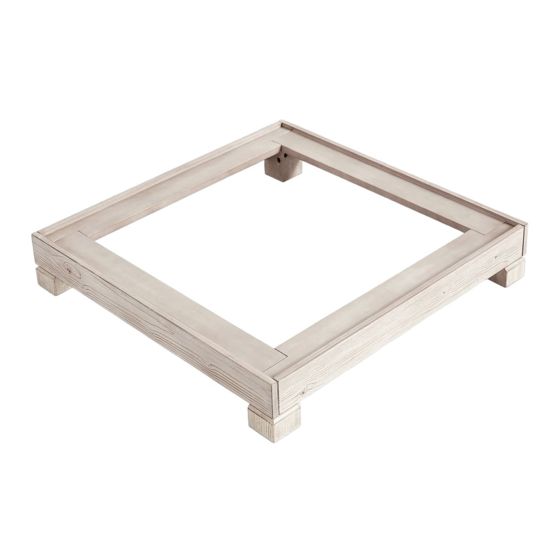

CUSHY PEDESTAL BASE
D.
A.

HARDWARE LIST:

(E) Allen Key – 1x (F) Bolt 1/4"x64mm – 16x

PRE-ASSEMBLY:

•
For your safety and ease, assembly by two adults is recommended.
•
Please read all instructions before beginning assembly. The illustrations provided allow for easier assembly when
used in conjunction with the assembly instructions.
•
Remove all parts and hardware from box and lay out on a carpeted or scratch-free work surface. The shipping box
provides an ideal work surface. Do not dispose of any contents until assembly is completed to avoid accidentally
discarding small parts or hardware.
•
Use the parts and hardware lists to identify and separate each of the pieces included prior to starting assembly.
•
Note: DO not fully tighten the bolts until all parts are in place. Failure to follow these instructions may cause the
bolts to misalign during assembly.
•
Do not use power drill as it may cause cracking.
Date - April 10, 2012
B.
C.
C.
B.
(G) Spring Washer 1/4" – 16x
1/3
www.pbteen.com
A.
D.

PARTS INCLUDED:

(A) Short Frame – 2pcs
(B) Long Frame – 2pcs
(C) Left Bun Foot – 2pcs
(D) Right Bun Foot – 2pcs
(H) Flat Washer 1/4" – 16x
