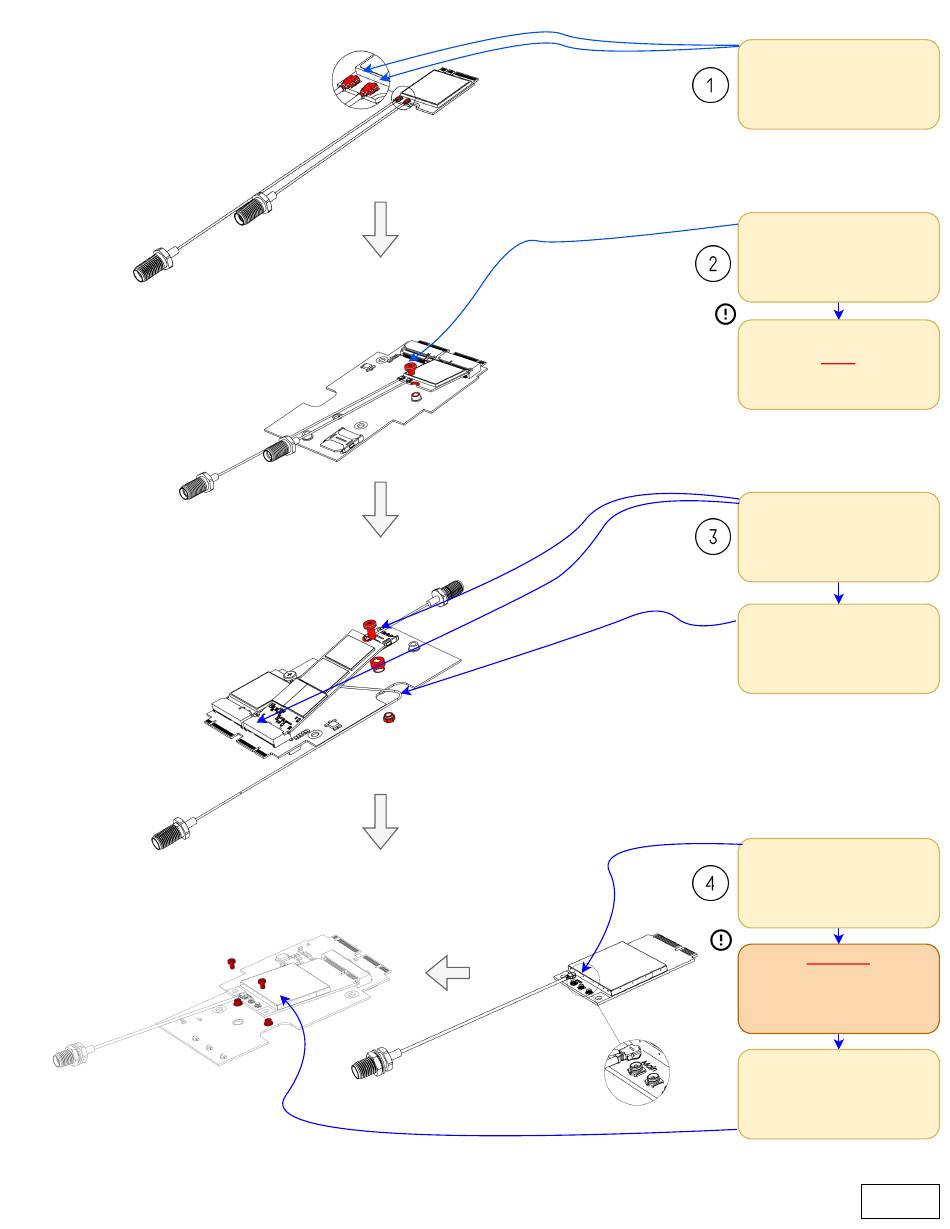

Plug the IPX antenna connectors
to the wifi module:
Long cable to port #1
Short cable to port #2
Fasten the WiFi module to the
FACET with the Phillips screw
Note:
Use the 3mm M3 Phillips screw
Plug the M.2 storage module
and screw the 6mm Phillips
screw along with the module
spacer and screw-nut which
goes below the PCB
Route the long SMA antenna
cable from the IPX connector
beneath the storage module
Plug the UFL connector to the
"Main" socket on the Cellular
modem
Attention:
The design requires to apply
insulating tape around the
modem to prevent short-circuit
with the motherboard
Plug the Cellular modem to the
mini-PCIe slot at the bottom and
fasten it with the 2x 3mm M2
Phillips screws.
