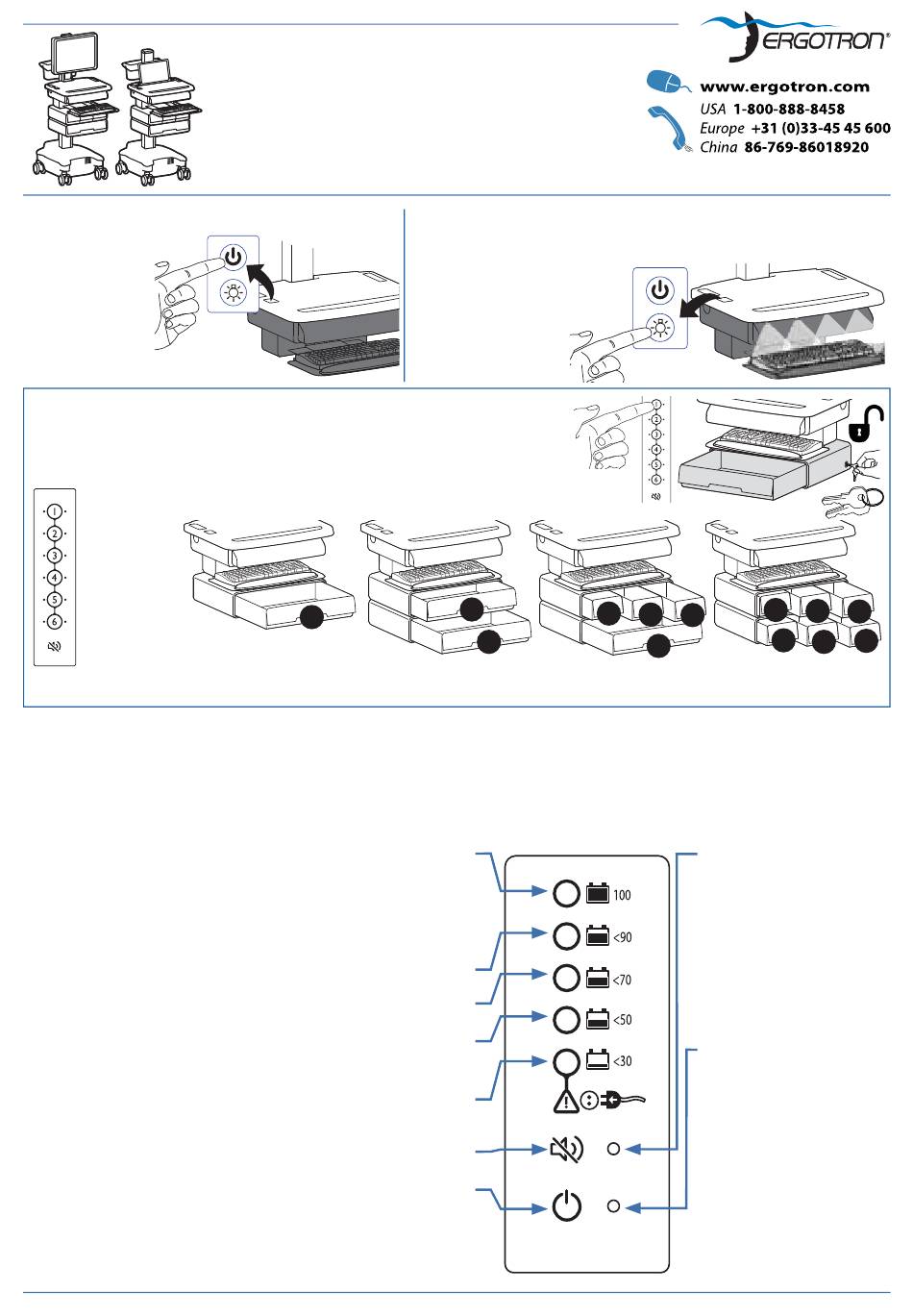

Ergotron STYLEVIEW Quick Reference page 2

READY ON
Pressing this button
will wake up your
computer from
hibernate or power
off .
Unlock Drawer (3 methods):
• Enter Master PIN, then press desired drawer number*.
• Enter User PIN, then press desired drawer number*.
• Key - turn clockwise 1/4 turn
*Drawer Numbers:
Lock Drawer:
• Wait 4 seconds for lock to engage automatically.
NOTE: Drawer must be fully closed to lock.
This power system interface will alert you to the percentage of charge remaining in the cart battery with a series of steady
or fl ashing red, yellow or green lights, and an alarm that will beep when charge gets below 30%. Remember, the battery
needs to be charged to 100% every day, and you can use the cart while charging, so plug-in cord as often as possible to avoid
running out of power!
NOTE: Put monitor in power save mode to optimize battery run time.
Light fl ashes when charging (power cord plugged into wall outlet)
battery to continue charging until light stops fl ashing. After light stops
fl ashing, it is OK to unplug the power cord from the wall.
Battery has less than 30% charge. Light is red and alarm beeps. Plug-in power
cord and charge to 100%! You can use cart while charging.
Alarm Mute button. Pressing this will temporarily mute alarm.
Power button for internal power system outlets. Pressing this will provide or
remove power to/from components plugged into the internal outlets.
STYLEVIEW®
QUICK REFERENCE
For more information on this or other Ergotron products, visit our website: www.ergotron.com
1
Battery has 100% charge.
You can use cart
while charging.
Battery has less than 90% charge.
Battery has less than 70% charge.
Battery has less than 50% charge.
KEYBOARD LIGHT
Your computer must be on for this light to function.
Keyboard Light will automatically
turn off after 15 minutes if not
manually turned off .
1
2
Allow
EN
1
1
2
3
4
When lit, alarm is enabled and
will beep when battery charge
gets below 30%. For details on
enabling and disabling alarm
contact Ergotron Customer Care.
When lit, the power system is on.
When dark, power system is off .
NOTE: Frequent operation of
the cart while battery charge
levels are below 30% will
signifi cantly reduce the life
of your battery and may void
your battery warranty.
777-24-005-G-00 rev.A • 08/10
2 3
4
6
5
