3. Handling

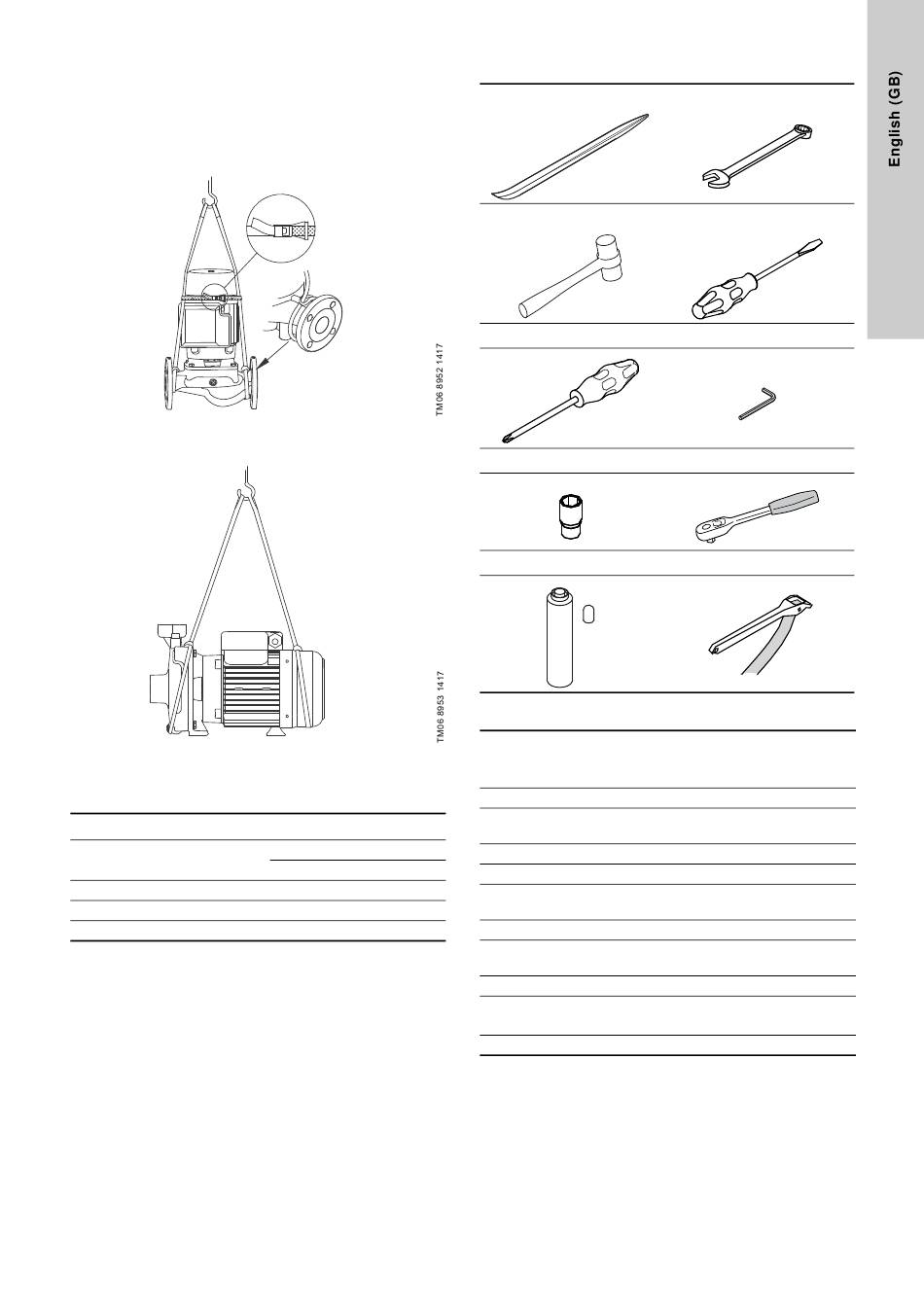

3.1 Lifting the product

For the weight of the product, see the label on the packing.
Lift the product by means of nylon straps and shackles or a hook
as shown on figs 2 and 3.
Correct lifting of SPRING T pump
Fig. 2
Correct lifting of SPRING N pump
Fig. 3

4. Torques

Pos. Designation Quantity
67 Nut 1
25a Stud 2/1
18 Screw 0/1
28 Screw 4
Dimensions Torque [Nm]
M6 5 ± 0.5
M8 11 ± 1.1
M6 2 ± 0.2
M10 8 ± 0.8
M8 15 ± 1.5

5. Service tools

A
C
E
G
I

5.1 Standard tools

Tool Designation
A Pinch bar
Ring/open-end
B
spanner
C Plastic hammer
D Screwdriver
Cross-recess
E
screwdriver
F Hexagon key
G Hexagon socket
H Ratchet handle
Mounting tool for
I
bellows seal
J Strap wrench
B
D
F
H
J
Further
For Product
information
pos. number
[mm]
49 SV5201
28 M8 - 13 mm SV0055
6 SV0349
105
25a
18 10 mm SV0033
M6 - 10 mm SV0410
67
M8 - 13 mm SV0413
∅ 12
105
∅ 16
SV0853
3
