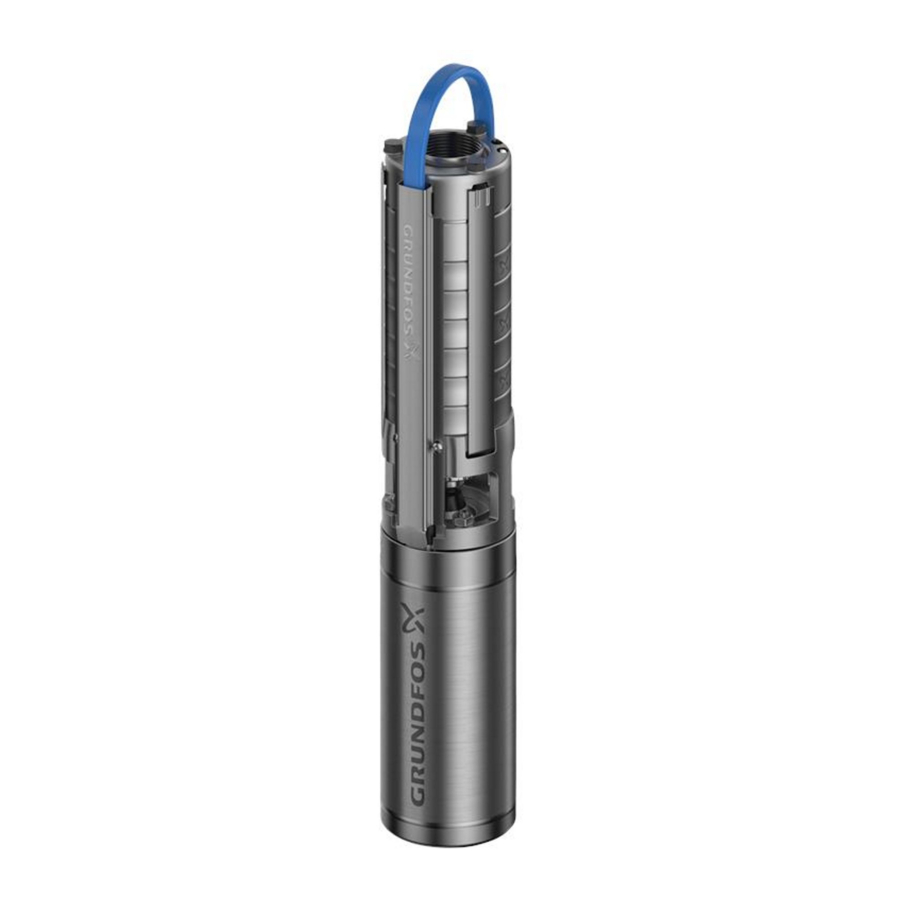

Grundfos SP Installation And Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Grundfos Manuals
  4. Water Pump
  5. SP
  6. Installation and operating instructions manual

Grundfos SP Installation And Operating Instructions Manual

Hide thumbs Also See for SP:
Table of Contents

Advertisement

Quick Links

Download this manual
GRUNDFOS INSTRUCTIONS
SP/SPE
Installation and operating instructions
SP
Installation and operating instructions
Other languages
http://net.grundfos.com/qr/i/98074911

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP and is the answer not in the manual?

Questions and answers

Related Manuals for Grundfos SP

Summary of Contents for Grundfos SP

  • Page 1 GRUNDFOS INSTRUCTIONS SP/SPE Installation and operating instructions Installation and operating instructions Other languages http://net.grundfos.com/qr/i/98074911...
  • Page 3 SP/SPE English (GB) Installation and operating instructions ............4...

  • Page 4: Table Of Contents

    Liquid temperatures and motor cooling ... . 10 The symbols and hazard statements below may appear in Grundfos Pipe connection ......10 installation and operating instructions, safety instructions and Electrical connection .

  • Page 5: Notes

    SP/SPE and SPA, with submersible motors, types Grundfos MS/ MMS. Do not expose the pump to mechanical impact, vibrations etc. If the pump is fitted with a motor of another brand than Grundfos MS or MMS, note that the motor data may differ from the data 3.2 Storage stated in these instructions.

  • Page 6: Applications

    4.2 Sound pressure level The sound pressure level has been measured in accordance with Grundfos SP submersible pumps are designed for a wide range of the rules laid down in the EC machinery directive 2006/42/EC. water supply and liquid transfer applications, such as the supply of...

  • Page 7: Installation Requirements

    MS6000P are met, the use of a sine- wave filter is mandatory when operating an SPE pump set. Grundfos recommends fitting a 30 cm long pipe to the pump to facilitate handling of the pump during installation. Motor position during filling - MS4000 and MS402 Handling of the motor 5.1 Checking the motor liquid...
  • Page 8 5.1.2 Grundfos MS6000 motors 5.1.3 Grundfos MMS6, MMS8000, MMS10000 and MMS12000 motors • If the motor is delivered from stock, the liquid level must be Filling procedure: checked before the motor is installed. See fig. Motor position Place the motor at a 45° angle with the top of the motor upwards.

  • Page 9: Positional Requirements

    5.2 Positional requirements 5.2.1 Motors suitable for horizontal installation WARNING Output power Output power Crushing of hands 50 Hz 60 Hz Death or serious personal injury Motor ‐ If the pump is to be installed in a position where it is [kW] [kW] accessible, the coupling must be suitably isolated from...

  • Page 10: Liquid Temperatures And Motor Cooling

    Q × 353 [m/s] Grundfos recommends installing the motor above the well screen in order to achieve proper motor cooling via liquid passing the motor. Flow rate In cases where the stated flow velocity cannot be achieved, a flow sleeve must be installed.

  • Page 11: Electrical Connection

    6. Electrical connection Colours of the conductors Conductor Flat cable Single conductors DANGER 1 = L1 Brown Black Electric shock Death or serious personal injury 2 = L2 Black Yellow ‐ Switch off the power supply before starting any work 3 = L3 Grey on the product.

  • Page 12: Motor Protection

    • an MP 204 motor protection unit and contactor(s). 6.1.3 Required settings of motor-protective circuit breaker For motors with an MP 204 motor protection unit, Grundfos recommends using a special trip curve with P-characteristics at a setting of U times 5 for 1 second.

  • Page 13: Cable Sizing

    Rated voltage [V] Grundfos supplies submersible drop cables for a wide range of ΔU Voltage drop [%] installations. A cable sizing tool is available on Grundfos Insite at: Rated maximum current of the motor [A] https://www.grundfos.com/sp-system/download-sp-app-html. cos φ ρ...

  • Page 14: Control Of Single-Phase Ms402 Motors

    6.4 Control of single-phase MS402 motors 6.5.2 PSC motors The PSC motors are connected to the mains via a run capacitor The single-phase MS402 motors smaller than 1.1 kW which must be sized for continuous operation. incorporate motor protection which cuts out the motor in Select the correct capacitor size from the table below: case of excessive winding temperatures while the motor is still supplied with voltage.

  • Page 15: Connection Of Three-Phase Motors

    MS4000, MS6000 3-wire single-phase motors must be connected installation and operating instructions for this unit. to the mains via a Grundfos SA-SPM 50 Hz or 60 Hz control box When a conventional motor-protective circuit breaker is being used, incorporating motor protection.
  • Page 16 6.6.2 Motors wound for star-delta starting 6.6.3 MS6000P Synchronous motors requiring double cabling The connection of Grundfos submersible motors wound for star- delta starting appears from the table below and fig. Grundfos PE L1 motors wound for star-delta starting. Connection Grundfos 6"...
  • Page 17 To avoid damage to the pump part, make sure that the motor stops W1 W2 when the pump flow falls below 0.1 × rated flow. Voltage peaks for Grundfos submersible motors should be limited in accordance with the table below. Max. U peak Motor type Max.

  • Page 18: Setting Up The Cue Frequency Converter In An Spe System

    6.6.8 SPE and sine-wave filter 7. Setting up the CUE frequency converter in an Grundfos SPE pump systems, consisting of one SPE pump set and SPE system one CUE, meet the VFD and motor input requirements in the table The SPE system consists of the following: below.

  • Page 19: Mechanical Installation

    15 Nm. Connect the motor cable to the drop cable by use of original Grundfos cable termination kits, such as shrink tube type KM or cable termination kit type M0 to M4. If necessary, shorten the motor cable to ensure that it is always covered with pump medium prior to making the cable jointing as described above.

  • Page 20: Lifting The Product

    8.3 Lifting the product 8.4 Riser pipe Grundfos recommends to fit a maximum 30 cm long pipe to the WARNING pump to facilitate handling of the pump during installation. Sharp element Death or serious personal injury ‐ When mounting the riser pipe, wear personal protective equipment to avoid cutting on sharp edges on the pump.

  • Page 21: Cable Clips

    Make sure that the power supply cannot be accidentally switched on. Do not lower or lift the pump by means of the motor cable. Grundfos recommends checking the borehole by means of an inside calliper before lowering the pump to ensure unobstructed passage.

  • Page 22: Startup And Operation

    L5: Installation depth. If the pump can pump more than yielded by the well, we recommend that you install the Grundfos MP 204 motor protector or some other type of dry-running protection. If no water level electrodes or level switches are installed, the water level may be drawn down to the suction interconnector of the pump and the pump will then draw in air.

  • Page 23: Service

    Maximum 2 per hour. The pumps can be serviced at a Grundfos service centre. Maximum 20 per day. If Grundfos is requested to service the pump, Grundfos must be MMS10000 contacted with details about the pumped liquid, etc. before the Grundfos recommends pump is returned for service.

  • Page 24: Fault Finding

    11. Fault finding 11.1.1 The pump does not run. The pump does not run. DANGER Cause Remedy Electric shock Death or serious personal injury The fuses are blown. Replace the blown fuses. If the ‐ Switch off the power supply before starting any work new ones blow too, check the on the product.

  • Page 25: Checking Motor And Cable

    11.1.4 Frequent starts and stops. 12. Checking motor and cable Frequent starts and stops. DANGER Electric shock Cause Remedy Death or serious personal injury The differencebetween the start Increase the difference. The stop ‐ Switch off the power supply before starting any work and stop pressures is too small.
  • Page 26 1. Supply voltage Measure the voltage between the phases by means of a voltmeter. The voltage must, when the motor is loaded, be within the range specified in section Electrical connection On single-phase motors, measure between phase and neutral or between two phases, The motor may burn if there are larger variations in voltage.

  • Page 27: Disposing Of Hazardous Or Toxic Materials

    This product or parts of it must be disposed of in an environmentally sound way: 1. Use the public or private waste collection service. 2. If this is not possible, contact the nearest Grundfos company or service workshop. The crossed-out wheelie bin symbol on a product means that it must be disposed of separately from household waste.
  • Page 28 Appendix A A.1. Appendix 1x230V / 3x400V [ m / % ] I [A] q [mm ] 12,5 1x230V 3x400V...
  • Page 29 1x220V / 3x380V [ m / % ] I [A] q [mm ] 12,5 1x220V 3x380V...
  • Page 30 3x220V / 3x440V [ m / % ] I [A] q [mm ] 12,5 3x220V 3x440V...
  • Page 31 1x240V / 3x415V [ m / % ] I [A] q [mm ] 12,5 1x240V 3x415V...
  • Page 32 SP 1 - SP 2 - SP 3 - SP 5 Fig.3 Fig.1 Fig.2 Fig.3 Fig.1 Fig.2 SP 7 - SP 9 - SP 11 - SP 14 - SP 17 - SP 30 - SP 46 - SP 60 Fig.1 Fig.2 Fig.1 Fig.2...
  • Page 33 SP 77 - SP 95 - SP 125 - SP 160- SP 215 Fig.3 Fig.1 Fig.2 Fig.1 Fig.2 Fig.3...
  • Page 34 Unit 1, Ground floor, Siu Wai industrial Turkey www.ba.grundfos.com Centre GRUNDFOS Pumps NZ Ltd. GRUNDFOS POMPA San. ve Tic. Ltd. Sti. E-mail: grundfos@bih.net.ba 29-33 Wing Hong Street & 68 King Lam 17 Beatrice Tinsley Crescent Gebze Organize Sanayi Bölgesi Street, Cheung Sha Wan...
  • Page 35 98074911 11.2023 ECM: 1370152 www.grundfos.com...
