Westin 57-6005 Installation Instructions

AUTOMOTIVE PRODUCTS,
ITEM QUANTITY
1,2 2
3 4
4,5 2
6,7 2
8,9,10 3
11 1
12 2
13 4
14 10
15 8
16 26
17 10
18 8
19 2
20 2
21 2
22 12
23 8
24 40
25 20
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
1. Remove contents from box, verify if all parts listed are present and free from damage.
Carefully read and understand all instructions before attempting installation.
Failure to identify damage before installation could lead to a rejection of any claim.
Please see Figure 1 for a breakdown of the parts included in this kit and to aid in assembly.
2. Begin by matching the left front section with the left rear section, loosely secure using (1) support plate, (4) long M6 but-
ton head bolts, (4) short M6 button head bolts, (16) M6 flat washers, and (8) M6 nylock nuts. Repeat this step for the right
side. See Figure 2.
3. Take the middle cross bar and insert it into the left side of the truck rack. Loosely secure using (1) M10 hex head bolt, (1)
M10 flat washer and (1) M10 lock washer, insert the other end of the middle cross bar into the right side of the truck rack
and loosely secure using (1) M10 hex head bolt, (1) M10 flat washer and (1) M10 lock washer.
Westin Automotive Products, Inc.
320 W. Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-0330-RevC ECO #: W17-0011
INSTALLATION INSTRUCTIONS

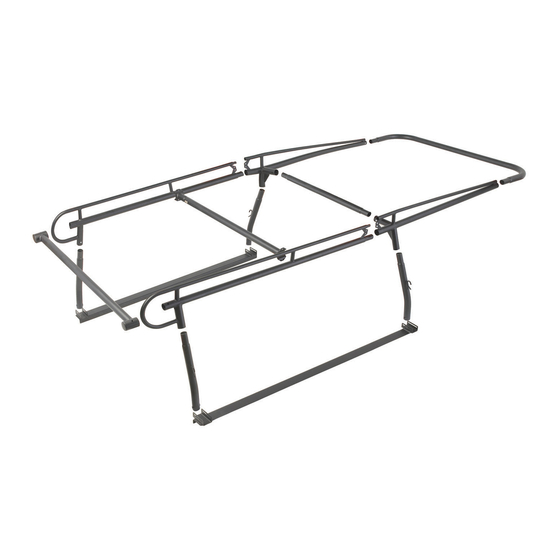

HD OVERHEAD TRUCK RACK
Universal Short/Long Bed Truck, Ford Super Duty F250/350 Short/Long Bed
57-6005, 57-6015, 57-6025, 57-6035
BED RAIL, DRIVER (1) AND PASSENGER (2)
REAR SECTION, PASSENGER (4) AND DRIVER (5)
FRONT SECTION, PASSENGER (6) AND DRIVER (7)
CROSS BUMPER, FRONT (8), MIDDLE (9) AND REAR (10)
ADJUSTABLE CLAMP ON CROSS BAR
APPLICATION:
PART NUMBER:
DESCRIPTION
RACK LEGS
SUPPORT PLATE
SUPPORT TAB
M10 HEX HEAD BOLTS
M10 NYLOCK NUTS
M10 FLAT WASHERS
M10 LOCK WASHERS
M10 x 75MM HEX HEAD BOLTS
M10 CARRIAGE BOLTS
M10 WING NUTS
D RING CLIPS
LONG M6 BUTTON HEAD BOLTS
SHORT M6 BUTTON HEAD BOLTS
M6 FLATWASHERS
M6 NYLOCK NUTS

PROCEDURE

1
Thank you for choosing Westin products
for additional installation assistance please call
Customer Service (800) 793-7846
www.westinautomotive.com
TOOLS NEEDED
13MM SOCKET
13MM WRENCH
10MM WRENCH
ALLEN KEY
RATCHET
TORQUE WRENCH
DATE: 4/17/17
