Westin 57-6025 Instructions

AUTOMOTIVE PRODUCTS, INC.
ITEM QUANTITY
1 1
2 1
3 4
4 1
5 1
6 1
7 1
8 1
9 1
10 1
11 1
12 14
13 12
14 12
15 8
16 4
17 2
18 2
19 2
WARNING: THIS HDX TRUCK RACK MUST BE INSTALLED WITH THE ASSISTANCE OF ONE OR MORE PER-
SONS, FAILURE TO DO SO COULD RESULT IN DAMAGE TO VEHICLE OR PERSONAL INJURY.
1. Remove contents from box, verify if all parts listed are present and free from damage. Carefully read and understand all instruc-
tions before attempting installation. Please see Fig 1 for a breakdown of the parts included in this kit and to aid in assembly.
2. Begin by matching the left front section with the left rear section, loosely secure using (2) M10 Hex Head Bolts, and (2) M10
Nylock nuts. Repeat this step for the right side.
3. Take the middle cross bar and insert it into the left side of the truck rack. Loosely secure using (1) M10 hex head bolt, and (1)
M10 lock washer, insert the other end of the middle cross bar into the right side of the truck rack and loosely secure using (1)
M10 hex head bolt, and (1) M10 lock washer.
4. Take the rear cross bar and slip it onto the rear of both the left and ride sides of the truck rack secure this cross bar using the sup-
plied d ring clips (Fig 2).
Westin Automotive Products, Inc.
320 Covina Blvd
San Dimas, Ca. 91773
P.N.: 75-0330 REV B ECO #: W13-0992
INSTRUCTIONS—INSTRUCCIONES—CONSIGNES
APPLICATION: UNIVERSAL SHORT/LONG BED TRUCK, FORD SUPERDUTY F250,350
APP PART # 57-6025, 57-6005, 57-6035, 57-6015
Bed Rail (passenger side)
Rear Section (passenger side)
Rear Section (drivers side)
Front Section (passenger side)
Front Section (drivers side)
Adjustable Clamp on Cross Bar
M10 x 75mm Hex Head Bolts
SHORT/LONG BED

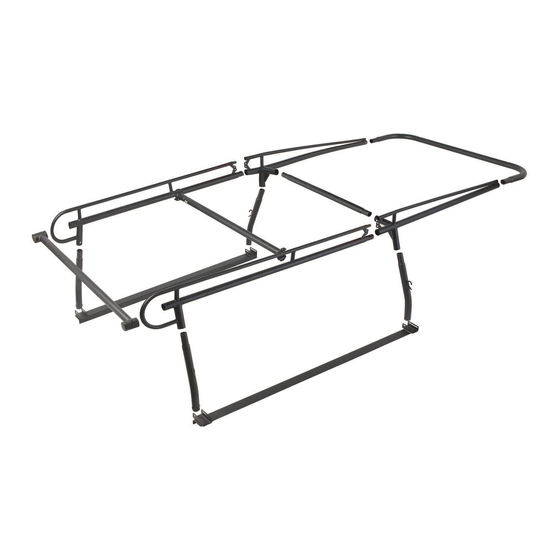

HDX OVERHEAD TRUCK RACK
DESCRIPTION
Bed Rail (drivers side)
Rack Legs
Front Cross Bar
Middle Cross Bar
Rear Cross Bar
M10 Hex Head Bolts
M10 Nylock nuts
M10 Flat washers
M10 Lock Washers
M10 Carriage Bolts
M10 Wing Nuts
D ring clips
Thank You for choosing Westin products
For Additional installation assistance please call
1
TOOLS NEEDED
13mm Socket
13mm Wrench
Torque Wrench
Customer service (800) 793-7846
www.westinautomotive.com
DATE: 11/12/2013
Ratchet
